Pioneer PDP-507XA User Manual

PDP-507XD
121
5678
56
7
8
C
D
F
A
B
E

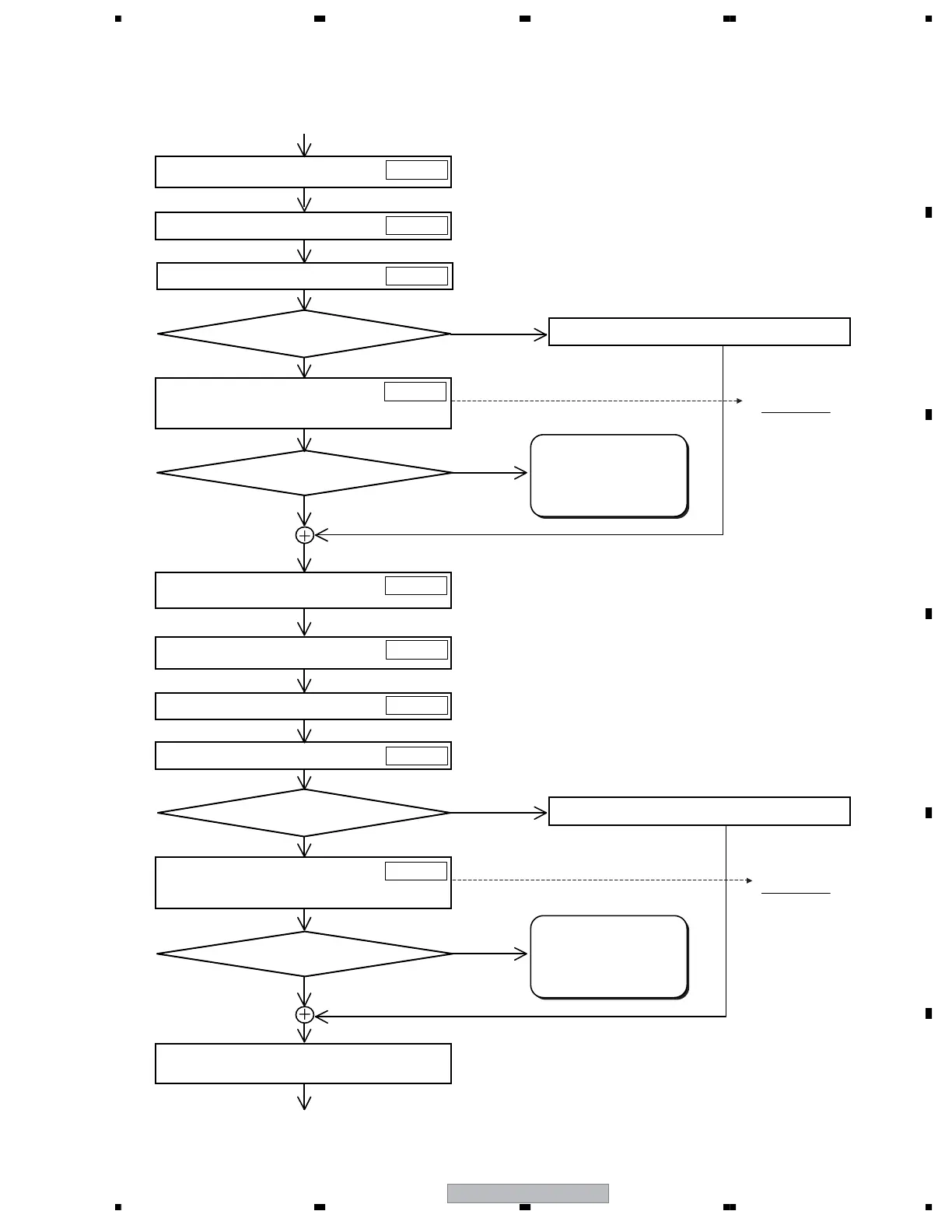

2 Actual Vofs adjustment (1)
Perform aging with RST MASK 01
(white) displayed for 3 seconds:
MKS S51
Set to RST MASK 09 (red 760).
Set VOL OFFSET to 246 (60 [V] ).
Are there any dark cells?
Are there any dark cells?
Gradually decrease Vofs data
until dark cells disappear (Vofs should
be 005 (15 [V]) or more).
Is Vofs_max1 118 (36 [V])
or greater?
Return the Vofs value to the tentative
voltage setting.
Perform aging with RST MASK 01
(white) displayed for 3 seconds:
Set to RST MASK 19 (red R1023+).
Set VOL OFFSET to 246 (60 [V] ).
Gradually decrease the Vofs data
until dark cells disappear (Vofs should
be 005 (15 [V]) or more).
Return the Vofs value to the tentative
voltage setting.
Note:
This is for checking the lower limit of Vofs accurately.
Note:
This is for checking the lower limit of Vofs accurately.
Set Vofs_max2 to 246 (60 [V]).
Set Vofs_max1 to 246 (60 [V]).
Note:
This setting value becomes the value
for Vofs_max1.
Note: Take note of the value
for Vofs_max1.
Note:
This setting value becomes the value
for Vofs_max2.
[V]
Vofs_max1
Replace the panel
again or abnormality
in circuits
Yes
Yes
Yes
Yes
(Check Vofs_max1 with the red 760 signal.)
(Check Vofs_max2 with the red 1023+ signal.)
No
Is Vofs_max2 118 (36 [V])
or greater?
No
No
No
(From 1 )
(To 3 )
MKS S51
MKS S69
MKS S59
VOF 246
VOF 246
VOF ∗∗∗
VOF ∗∗∗
VOF ∗∗∗
Note: Take note of the value
for Vofs_max2.
[V]
Vofs_max2
Replace the panel
again or abnormality
in circuits

Pioneer PDP-507XA Specifications

General

3D	-
Depth	115 mm
Width	1224 mm
Height	717 mm
Weight	34100 g
Tuner type	Analog
Pixel pitch	- mm
Smart modes	Energy saving
Aspect ratio	16:9
Product color	Black
LED indicators	Y, Power
Noise reduction	Yes
RMS rated power	26 W
AC input voltage	220 - 240 V
Display diagonal	50 \
Channels quantity	99 channels
AC input frequency	50 - 60 Hz
Display brightness	1100 cd/m²
Display resolution	1365 x 768 pixels
Display technology	Plasma
Number of speakers	2
Teletext standards	Top-text
SCART ports quantity	3
Supported video modes	1080p
USB 2.0 ports quantity	0
Contrast ratio (typical)	4000:1
Annual energy consumption	- kWh
Display diagonal (metric)	127 cm
Analog signal format system	NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL BG, PAL DK, PAL I, SECAM, SECAM B/G, SECAM D/K, SECAM L
Power consumption (standby)	0.3 W
Power consumption (typical)	341 W
Sound enhancement technology	FOCUS, SRS, TruBass
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 768 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Component video (YPbPr/YCbCr) in	1
On Screen Display (OSD) languages	CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, ITA, NOR, POL, POR, RUS, SWE, TUR
