Pioneer PDP-507XA User Manual

PDP-507XD
107
5678
56
7
8
C
D
F
A
B
E
6. DISASSEMBLY

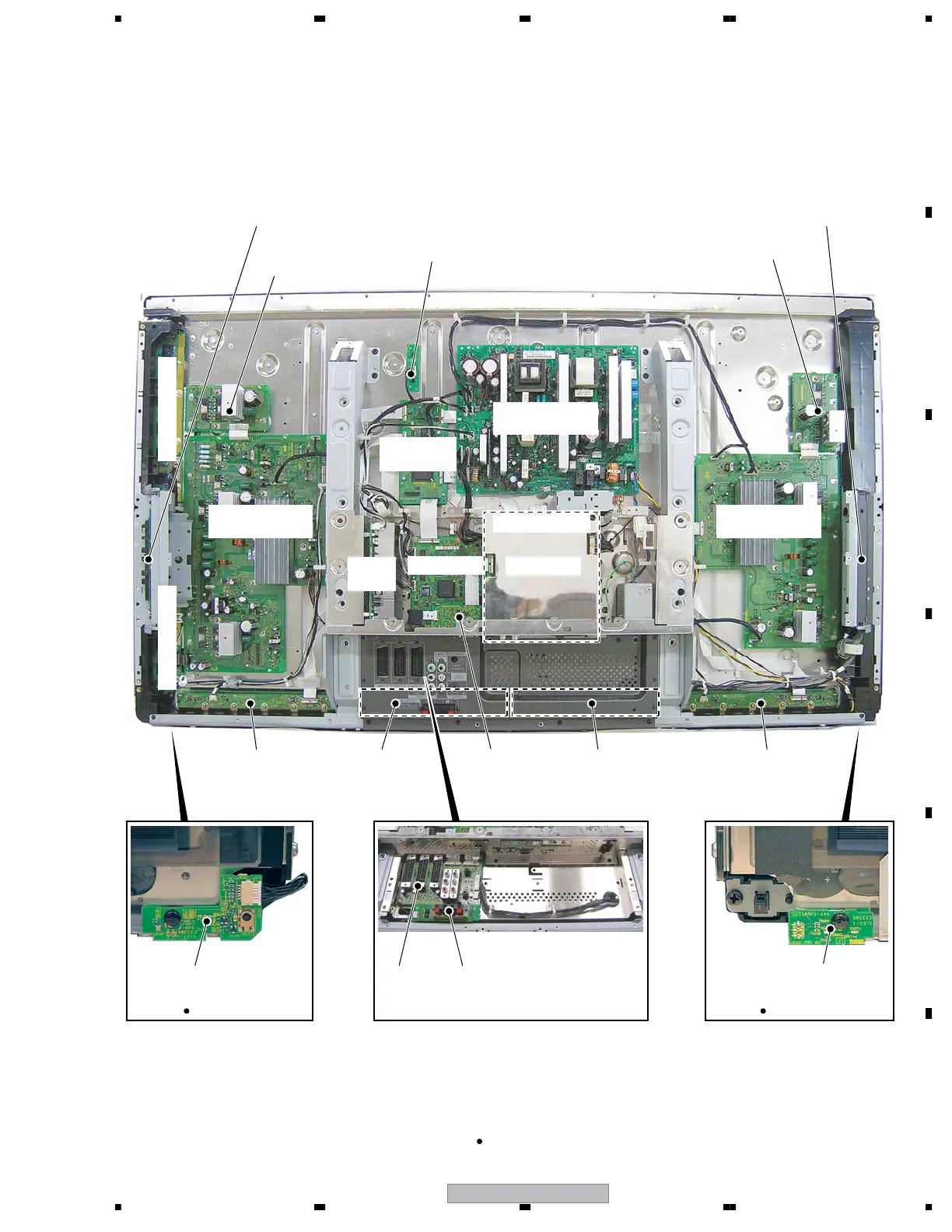

6.1 PCB LOCATION
SIDE KEY Assy SIDE Assy
50 Y SUB DRIVE
Assy
50 X SUB DRIVE
Assy
SENSOR Assy
PC Assy
TANSHI
Assy
SP TERMINAL
Assy
50 Y MAIN DRIVE
Assy
50 X MAIN DRIVE
Assy
50 SCAN B Assy50 SCAN A Assy
AUDIO
Assy
50 DIGITAL
Assy
MAIN Assy
R07 DT Assy
PDP-507XD only
POWER SUPPLY
Unit
LED IR Assy
Rear view
50 LED Assy
Front view Front view
50 ADDRESS L
Assy
50 ADDRESS S
Assy
50 ADDRESS L
Assy
50 ADDRESS S
Assy

Pioneer PDP-507XA Specifications

General

3D	-
Depth	115 mm
Width	1224 mm
Height	717 mm
Weight	34100 g
Tuner type	Analog
Pixel pitch	- mm
Smart modes	Energy saving
Aspect ratio	16:9
Product color	Black
LED indicators	Y, Power
Noise reduction	Yes
RMS rated power	26 W
AC input voltage	220 - 240 V
Display diagonal	50 \
Channels quantity	99 channels
AC input frequency	50 - 60 Hz
Display brightness	1100 cd/m²
Display resolution	1365 x 768 pixels
Display technology	Plasma
Number of speakers	2
Teletext standards	Top-text
SCART ports quantity	3
Supported video modes	1080p
USB 2.0 ports quantity	0
Contrast ratio (typical)	4000:1
Annual energy consumption	- kWh
Display diagonal (metric)	127 cm
Analog signal format system	NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL BG, PAL DK, PAL I, SECAM, SECAM B/G, SECAM D/K, SECAM L
Power consumption (standby)	0.3 W
Power consumption (typical)	341 W
Sound enhancement technology	FOCUS, SRS, TruBass
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 768 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Component video (YPbPr/YCbCr) in	1
On Screen Display (OSD) languages	CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, ITA, NOR, POL, POR, RUS, SWE, TUR
