PDP-507XD
52
1234
1234
C
D
F
A
B
E

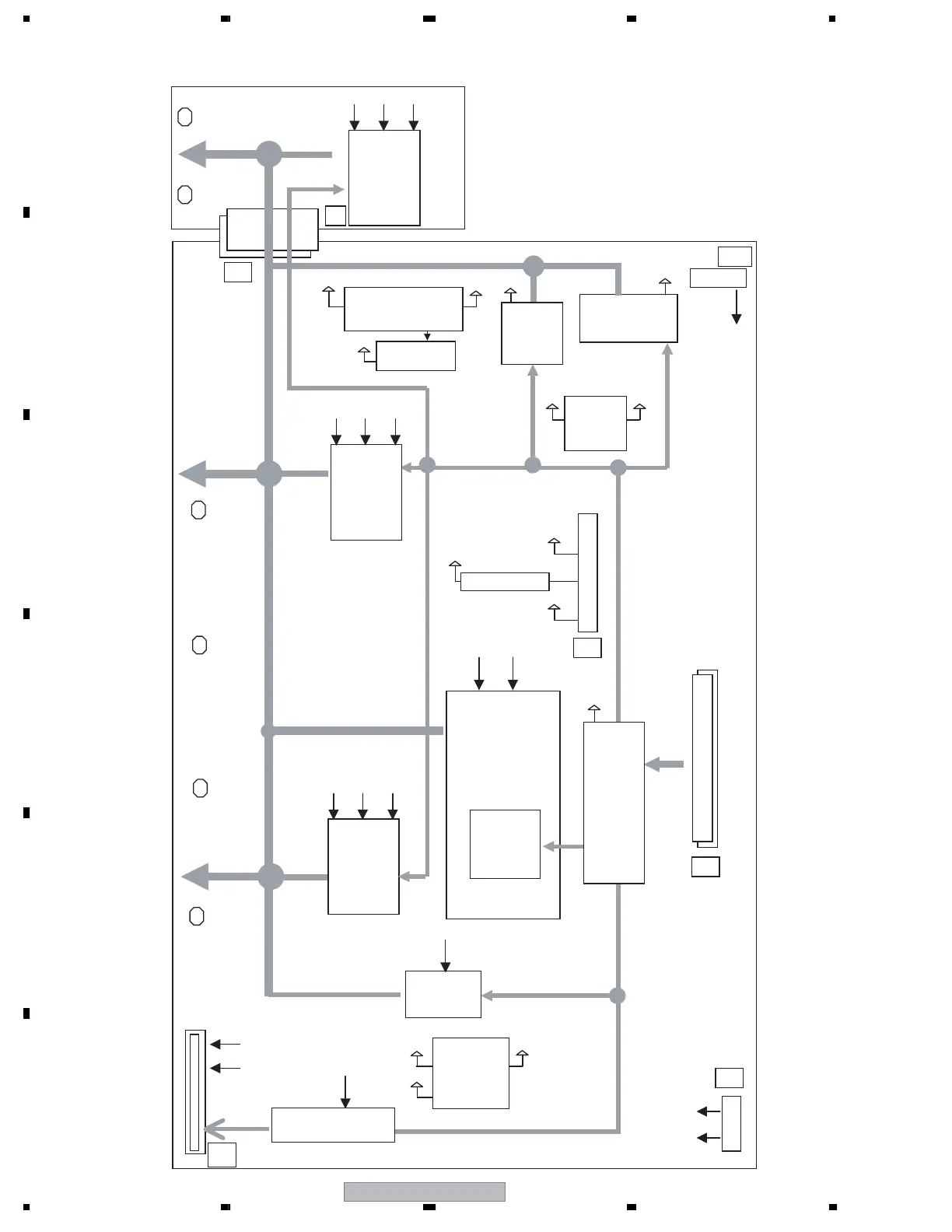

4.8 50Y MAIN DRIVE and 50Y SUB DRIVE ASSYS
OFFSET
BLOCK
Y4
Y2
PSUS
PSUS
Scan Signal
Drive Signal
50Y MAIN DRIVE ASSY
RESONANCE
BLOCK
+RESET
BLOCK
+5V +16.5V
DK MOD.
(IC2107)
+5V
VH
IC5V
+5V
REGULATOR
+16.5V
VH
+16.5V
VOFS
DC/DC
CONV.
VOFS
+16.5V
IC5V
IC5V/VF
DC/DC
CONV.
VF
VSUS
VSUS
VOFS
VH DC/DC
CONV.
Vprst
Vprst Reg.
Vprst
Photo Coupler
BLOCK
IC5V
60V
+16.5V
SOFT-D
BLOCK
Y12
Y5
Y1
+6.5V
Y8
Y9
60V
5V
MASK
BLOCK
+5V +16.5VVSUS
MASK
BLOCK
+5V +16.5VVSUS
MASK
BLOCK
+5V +16.5VVSUS
PSUS
50Y SUB DRIVE ASSY
LOGIC
BLOCK
