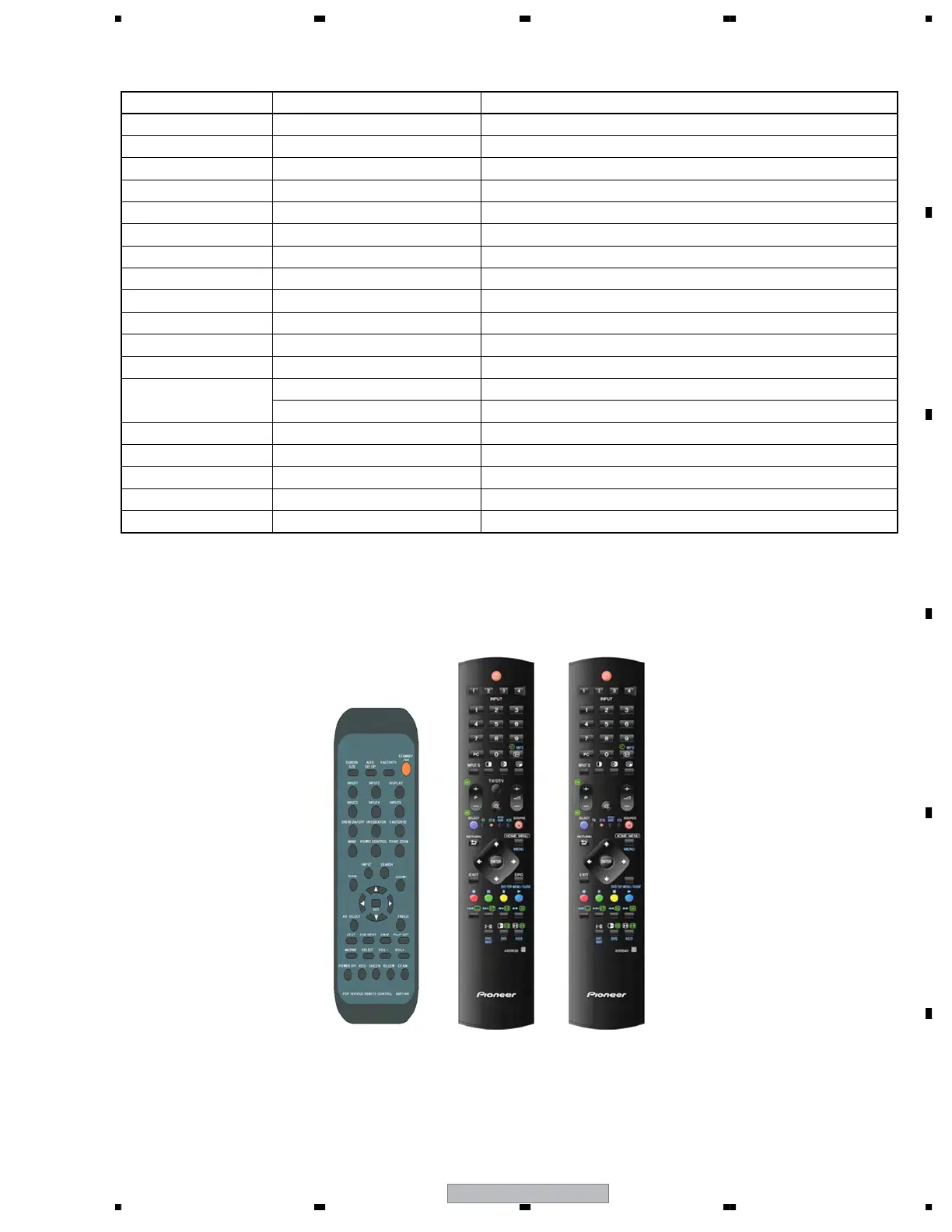

8.1.4 REMOTE CONTROL CODE
SR/R Keys Basic Functions Remarks
MUTING Switching the main items. Shifting to the next main item (top).
« (DOWN) (Note1) Switching the subtitled items. Shifting downward to the next subtitiled item.
» (UP) (Note1) Switching the subtitled items. Shifting upward to the next upper layer.
| (LEFT) (Note1) Decreasing the adjustment value. Decreasing the adjustment value.
\ (RIGHT) (Note1) Increasing the adjustment value. Increasing the adjustment value.
ENTER/SET (Note1) Switching the layers. Shifting downward or upward to the next lower or upper layer.
INPUT Selecting INPUT. Shifting the INPUT to the next function.
INPUTxx (Note1) Selecting INPUT. Switching the INPUT to xx. (xx=1 to 6 etc)
CH+/P+ Increasing the channel number. Advanving
CH-/P- Decreasing the channel number.
Numeric Keys Function: TV Function: TV (previously selected channel number is selected)
POWER Power OFF. Turning the power off.
FACTORY
Factory OFF (Factory mode) In Factory mode, turning Factory mode off.
Factory ON (Non-Factory mode). In Non-Factory mode, turn Fuctory mode on.
HOME MENU (Note1) Menu ON. In Factory mode, turn Factory mode off.
VOLUME+ Volume UP. Increasing 10 the adjustment value. (PANEL FACTORY)
VOLUME- Volume DOWN. Decreasing 10 the adjustment value. (PANEL FACTORY)
DRIVE ON/OFF (Note2) Drive Mode OFF. Turning Drive mode off.
INTEGRATOR (Note1) INTEGRATOR MENU ON. Enter INTEGRATOR MODE.
(Note 1) A pertinent key that exists in the service remote control becomes effective only in the factory mode and the integrator mode.
Please use the remote control of the attachment when you normally operate it in the mode (home menu operation etc.).
(Note 2) When ten seconds have passed since the [DRIVE ON/OFF] key was pressed at the standby, it becomes invalid.
Please press [POWER] key from the [DRIVE ON/OFF] key pressing within ten seconds when you do power supply ON while
driven OFF.
Remote control unit
for Servicing
PDP-507XD PDP-507XA

Pioneer PDP-507XA Specifications

General

3D	-
Depth	115 mm
Width	1224 mm
Height	717 mm
Weight	34100 g
Tuner type	Analog
Pixel pitch	- mm
Smart modes	Energy saving
Aspect ratio	16:9
Product color	Black
LED indicators	Y, Power
Noise reduction	Yes
RMS rated power	26 W
AC input voltage	220 - 240 V
Display diagonal	50 \
Channels quantity	99 channels
AC input frequency	50 - 60 Hz
Display brightness	1100 cd/m²
Display resolution	1365 x 768 pixels
Display technology	Plasma
Number of speakers	2
Teletext standards	Top-text
SCART ports quantity	3
Supported video modes	1080p
USB 2.0 ports quantity	0
Contrast ratio (typical)	4000:1
Annual energy consumption	- kWh
Display diagonal (metric)	127 cm
Analog signal format system	NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL BG, PAL DK, PAL I, SECAM, SECAM B/G, SECAM D/K, SECAM L
Power consumption (standby)	0.3 W
Power consumption (typical)	341 W
Sound enhancement technology	FOCUS, SRS, TruBass
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 768 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Component video (YPbPr/YCbCr) in	1
On Screen Display (OSD) languages	CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, ITA, NOR, POL, POR, RUS, SWE, TUR
