Pioneer PDP-507XA User Manual

PDP-507XD
25
5678
56
7
8
C
D
F
A
B
E
PDP SERVICE ASSY 507 (AWU1212) PARTS LIST

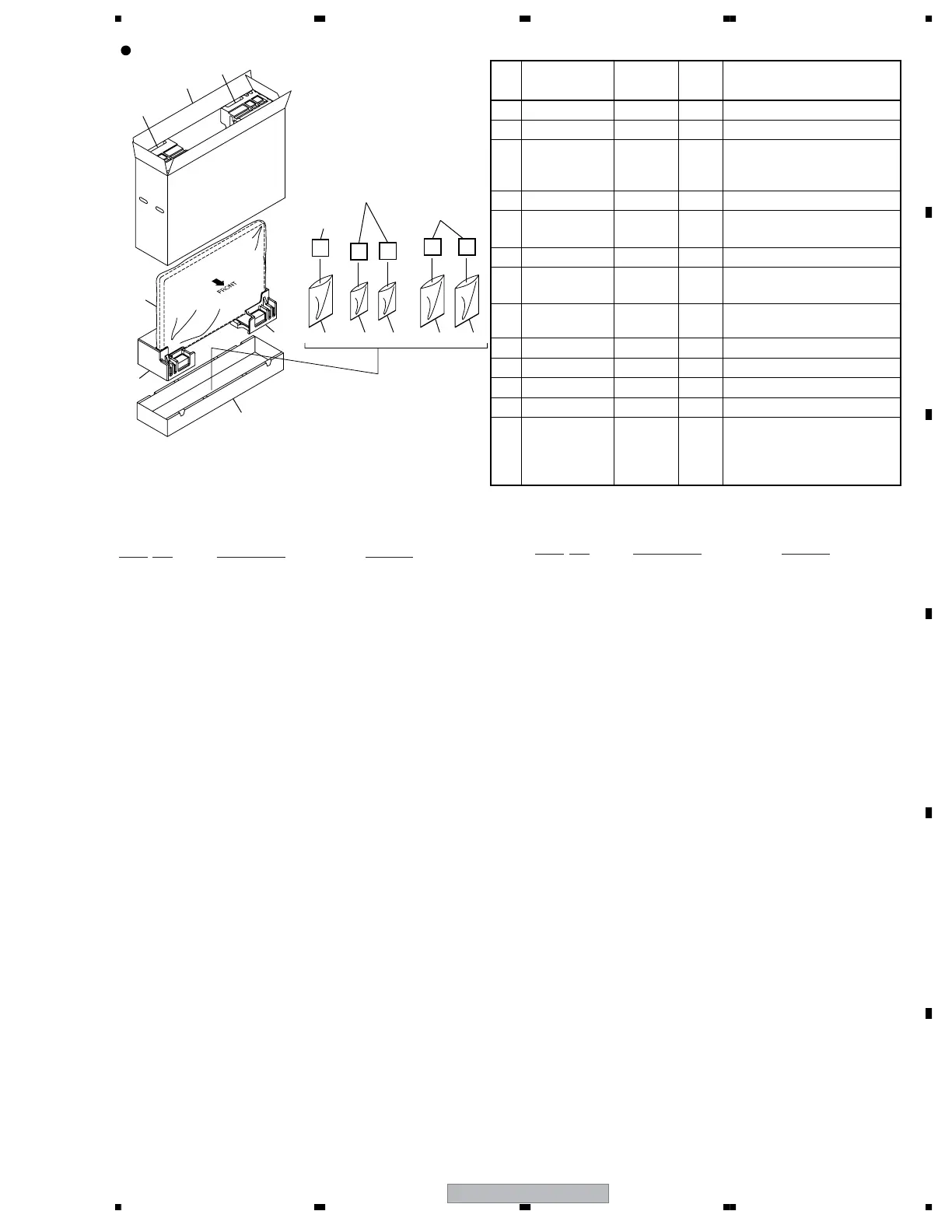

Packing Section
37
8
45
44
46
42
40
41
43
38 38 39 39
10 ×4, 11 ×2, 12 ×11,
13 ×9, 15 ×2, 16 ×2,
17 ×4, 18 ×10, 25 ×2,
26 ×6, 27 ×2, 36 ×1
20 to 24
No. Part Name Part No.
No. of
pcs
Remarks
8 Clamp base ANG3030 ×1 Not used
10 PCB spacer AEC1126 ×4 Not used
12 Wire saddle AEC1745 ×11
Ten of the 11 wire saddles are to be used
with this unit. Attach them to the places
where T indications are engraved.
13 Wire saddle AEC1751 ×9 Not used
15 PCB support AEC1938 ×2
Attach them to the places where C
indications are engraved.
16 PCB support AEC1958 ×2 Not used
17 Harness lifter 28 AEC1982 ×4
Attach them to the places where U
indications are engraved.
18 Ferrite clamp AEC1986 ×10
Eight of the 10 ferrite clamps are to be
used with this unit.
22 DC sheet A AMR3612 ×1 Not used
23 Address sheet E AMR3621 ×1 Not used
24 Address sheet D AMR3631 ×1 Not used
25 Gasket E ANK1874 ×2 Not used
36 Screw
TBZ40P080FTB ×13
Twelve screws have been already
secured to the Assy.
The remaining one screw packed in a
plastic bag is not used with this unit.
(*)
Mark
No. Description Part No.
NSP 1 Panel Chassis (507) Assy AWU1148
2Front Chassis VL (50) AMA1014
3Front Chassis VR (507) AMA1022
4 Sub Frame L Assy 507 ANA1945
5 Sub Frame R Assy 507 ANA1946
6Front Chassis H Assy (507) ANA2031
7 Conductive Plate X ANG2905
8 Clamp Base ( * ) ANG3030
9 Cushion AEB1424
NSP 10 PCB Spacer ( * ) AEC1126
11 PCB Spacer AEC1570
12 Wire Saddle ( * ) AEC1745
13 Wire Saddle ( * ) AEC1751
14 Screw Rivet AEC1877
15 PCB Support ( * ) AEC1938
16 PCB Support ( * ) AEC1958
17 Harness Lifter 28 ( * ) AEC1982
18 Ferrite Clamp ( * ) AEC1986
19 Re-use PCB Spacer AEC2087
20 Address Sheet A AMR3628
21 Address Sheet F AMR3646
22 DC Sheet A ( * ) AMR3612
23 Address Sheet E ( * ) AMR3621
24 Address Sheet D ( * ) AMR3631
25 Gasket E ( * ) ANK1874
26 Gasket AV8 ANK1881
27 Rivet A BEC1158
NSP 28 Front Case Assy (507SV) AMB2977
29 Rear Case (507) ANE1656
30 Caution Label AAX3031
NSP 31 Drive Voltage Label ARW1097
32 Screw (3 x 40P) ABA1332
33 Screw ABA1351
34 Screw ABA1364
35 Screw AMZ30P060FTB
36 Screw ( * ) TBZ40P080FTB
37 Polyethylene Bag AHG1337
38 Polyethylene Bag S AHG1338
39 Polyethylene Bag AHG1340
40 Pad (507 T-L) AHA2538
41 Pad (507 T-R) AHA2539
42 Pad (507 B-L) AHA2540
43 Pad (507 B-R) AHA2541
44 Under Carton (507) AHD3473
45 Upper Carton (507SV) AHD3550
46 Protect Sheet AHG1331
47 Screw ABZ30P080FTC
48 Screw APZ30P080FTB
Mark
No. Description Part No.

Pioneer PDP-507XA Specifications

General

3D	-
Depth	115 mm
Width	1224 mm
Height	717 mm
Weight	34100 g
Tuner type	Analog
Pixel pitch	- mm
Smart modes	Energy saving
Aspect ratio	16:9
Product color	Black
LED indicators	Y, Power
Noise reduction	Yes
RMS rated power	26 W
AC input voltage	220 - 240 V
Display diagonal	50 \
Channels quantity	99 channels
AC input frequency	50 - 60 Hz
Display brightness	1100 cd/m²
Display resolution	1365 x 768 pixels
Display technology	Plasma
Number of speakers	2
Teletext standards	Top-text
SCART ports quantity	3
Supported video modes	1080p
USB 2.0 ports quantity	0
Contrast ratio (typical)	4000:1
Annual energy consumption	- kWh
Display diagonal (metric)	127 cm
Analog signal format system	NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL BG, PAL DK, PAL I, SECAM, SECAM B/G, SECAM D/K, SECAM L
Power consumption (standby)	0.3 W
Power consumption (typical)	341 W
Sound enhancement technology	FOCUS, SRS, TruBass
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 768 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Component video (YPbPr/YCbCr) in	1
On Screen Display (OSD) languages	CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, ITA, NOR, POL, POR, RUS, SWE, TUR
