Pipistrel Sinus User Manual

K i t M a n u a l f o r P i p i s t r e l S i n u s a n d V i r u s A i r c r a f t

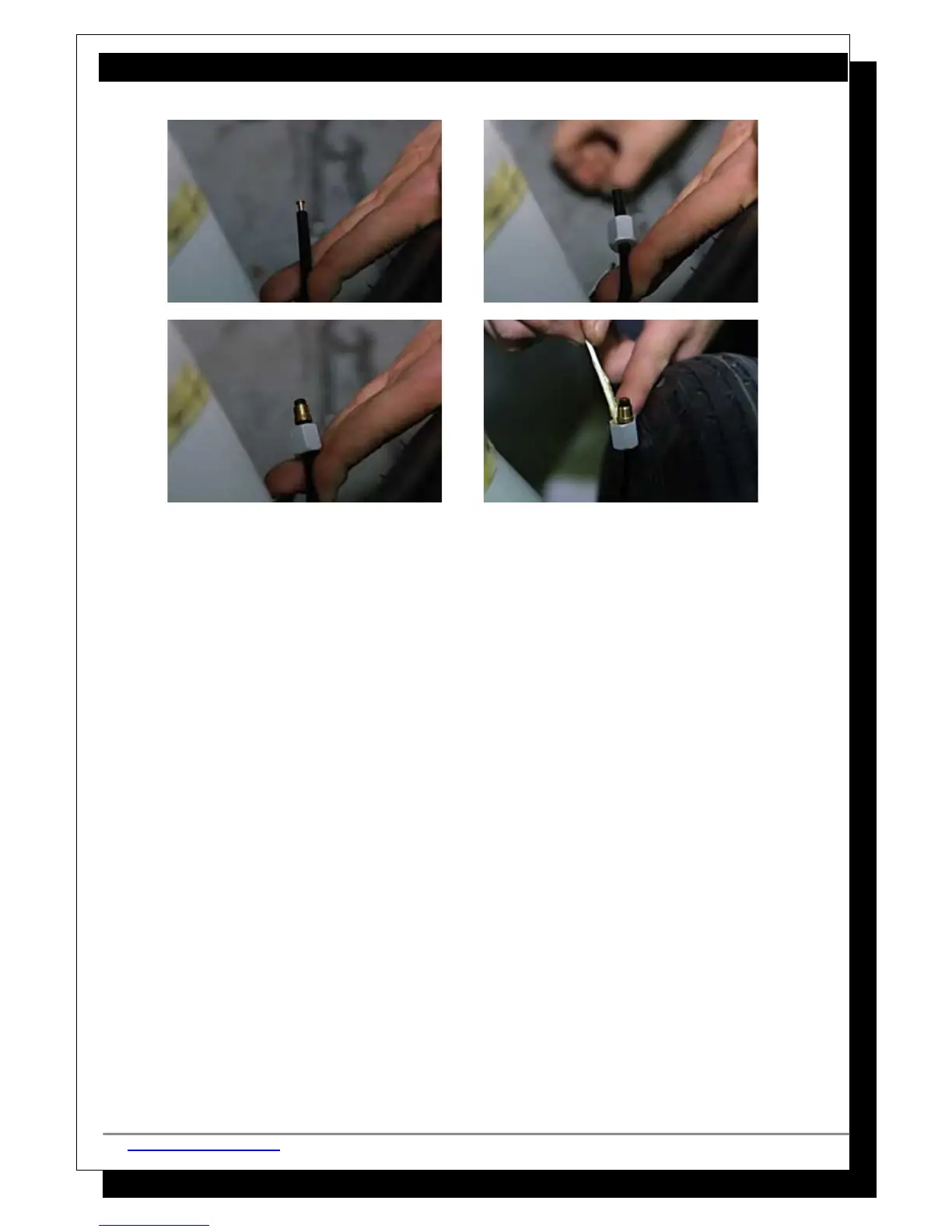

Connecting the brake lines to the pedals:
 The brake line, which enters the cockpit through the slot on the right hand side of the
cabin, connects to the bottom right quick connect fitting on the right hand pedals.
 The brake line, which enters the cockpit through the hole just in front of the rudder
cabels, connects to the bottom left quick connect fitting on the right hand pedals
 The left hand pedals are then connected to the top quick connect fittings on the right
hand pedals.
 Be sure to leave quite a bit of slack in the brake lines, so that the pedals can move freely
without being hindered.
 When completed add oil to the system.
http://www.pipistrel.si © Pipistrel Release March 2009 © Page 115 of 267

Pipistrel Sinus Specifications

General

Manufacturer	Pipistrel
Seats	2
Rate of climb	5.5 m/s (1, 080 ft/min)
Ballistic parachute rescue system	Optional
Engine	Rotax 912
Type	Motor glider
