K i t M a n u a l f o r P i p i s t r e l S i n u s a n d V i r u s A i r c r a f t

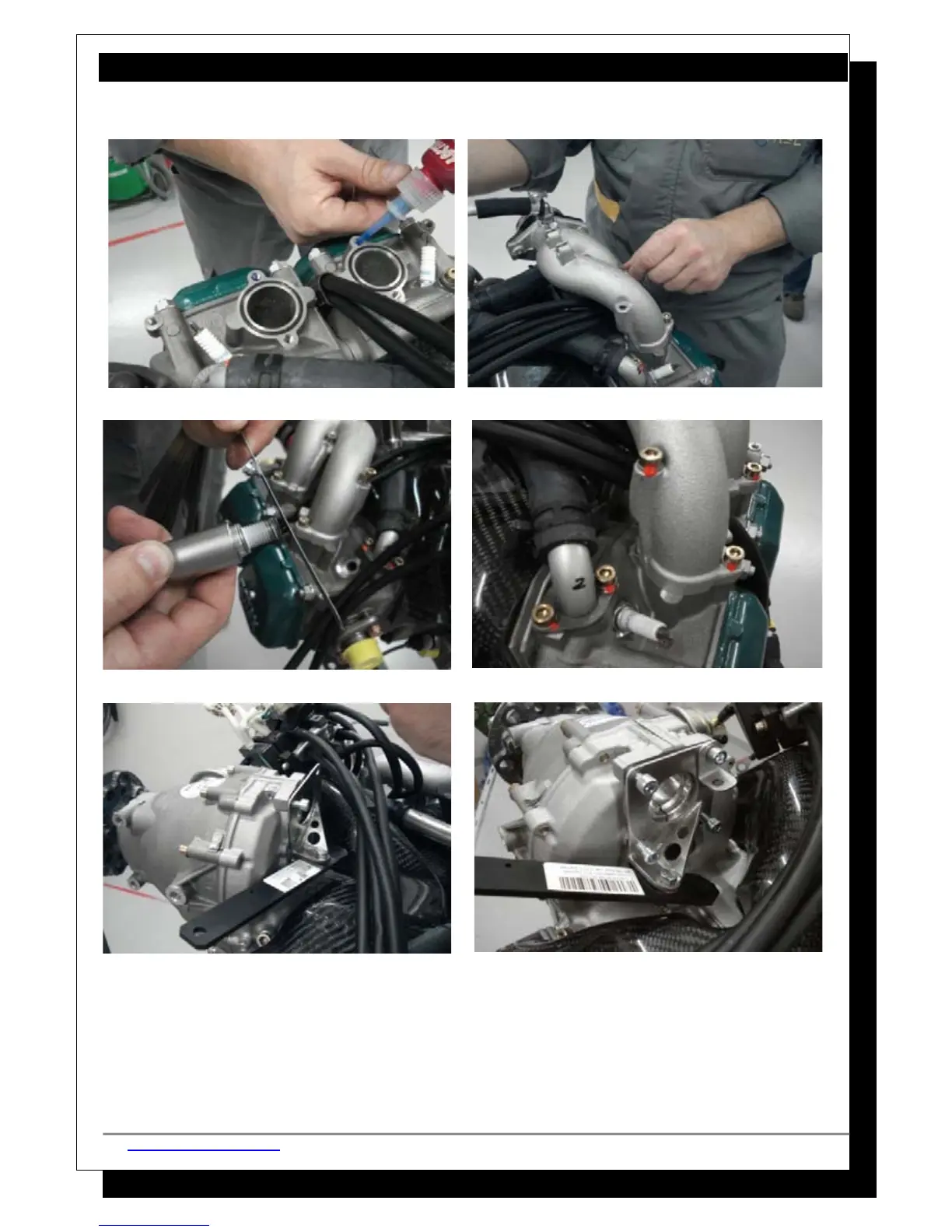

Now it is necessary to remove, add and rearrange certain electrics components. When finished,
the electronics will be fixed above the 1
st
and 3
rd
cylinder heads.
 Mount the small L-profile brace provided using blue Loctite 243.
 Now remove the two coils (black boxes) marked A and B along with their connector
cables.
 Also remove the weird-shaped bracket which serves as a the connector holder.
