Pipistrel Sinus User Manual

K i t M a n u a l f o r P i p i s t r e l S i n u s a n d V i r u s A i r c r a f t

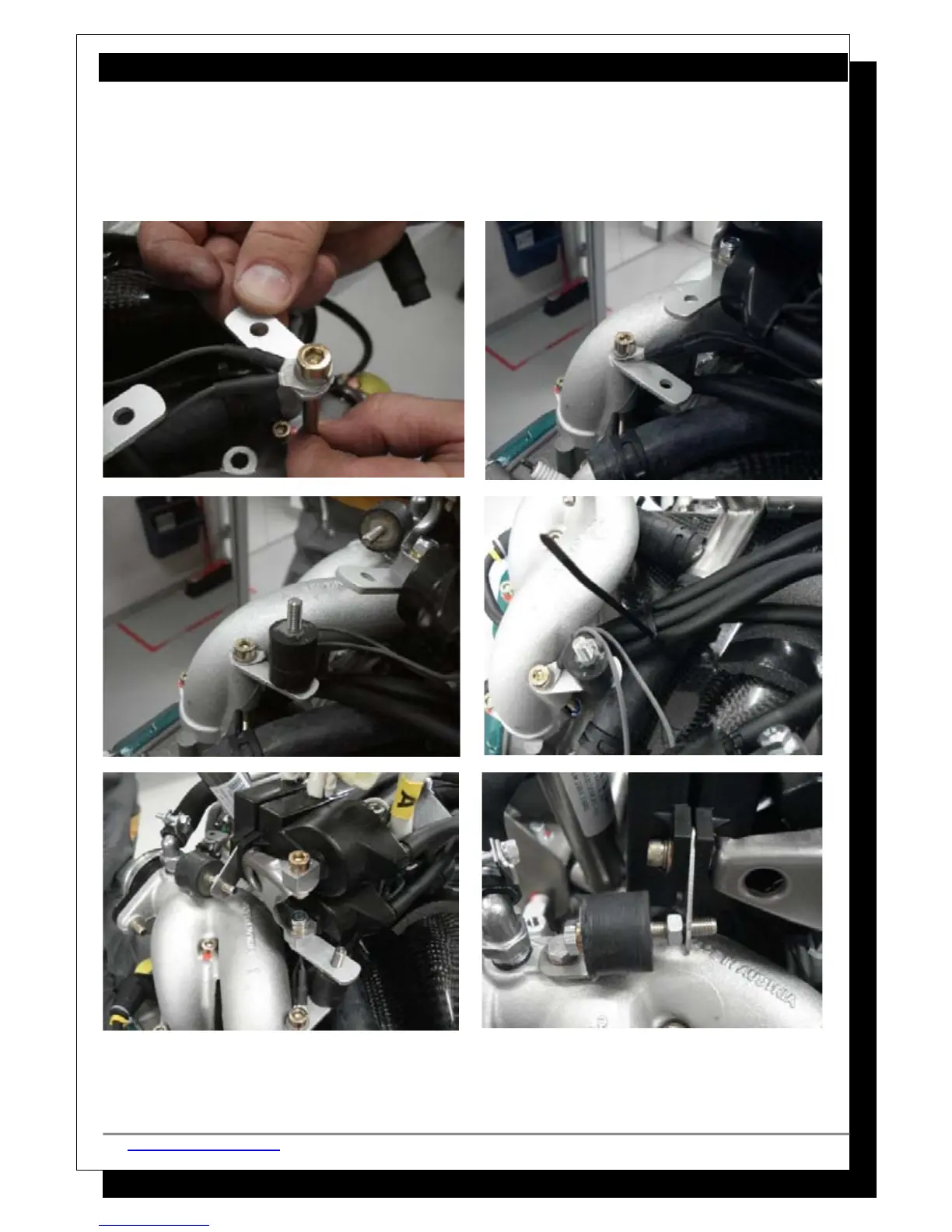

 Now you can mount the electronics and fix them to the brackets you have installed. Try to arrange the
wiring, so that they're in order. Use plastic ties to fix them to the engine block and keep them
organized.
 Modify the weird-shaped connector brace, which you removed earlier. You have to remove the two
prongs marked, make an indent into one edge and drill a 7mm-diameter hole.
 When finished, clean up the edges with a file and fit it between the two A-shaped braces, just above
the electronics.
http://www.pipistrel.si © Pipistrel Release March 2009 © Page 137 of 267

Pipistrel Sinus Specifications

General

Manufacturer	Pipistrel
Seats	2
Rate of climb	5.5 m/s (1, 080 ft/min)
Ballistic parachute rescue system	Optional
Engine	Rotax 912
Type	Motor glider
