K i t M a n u a l f o r P i p i s t r e l S i n u s a n d V i r u s A i r c r a f t

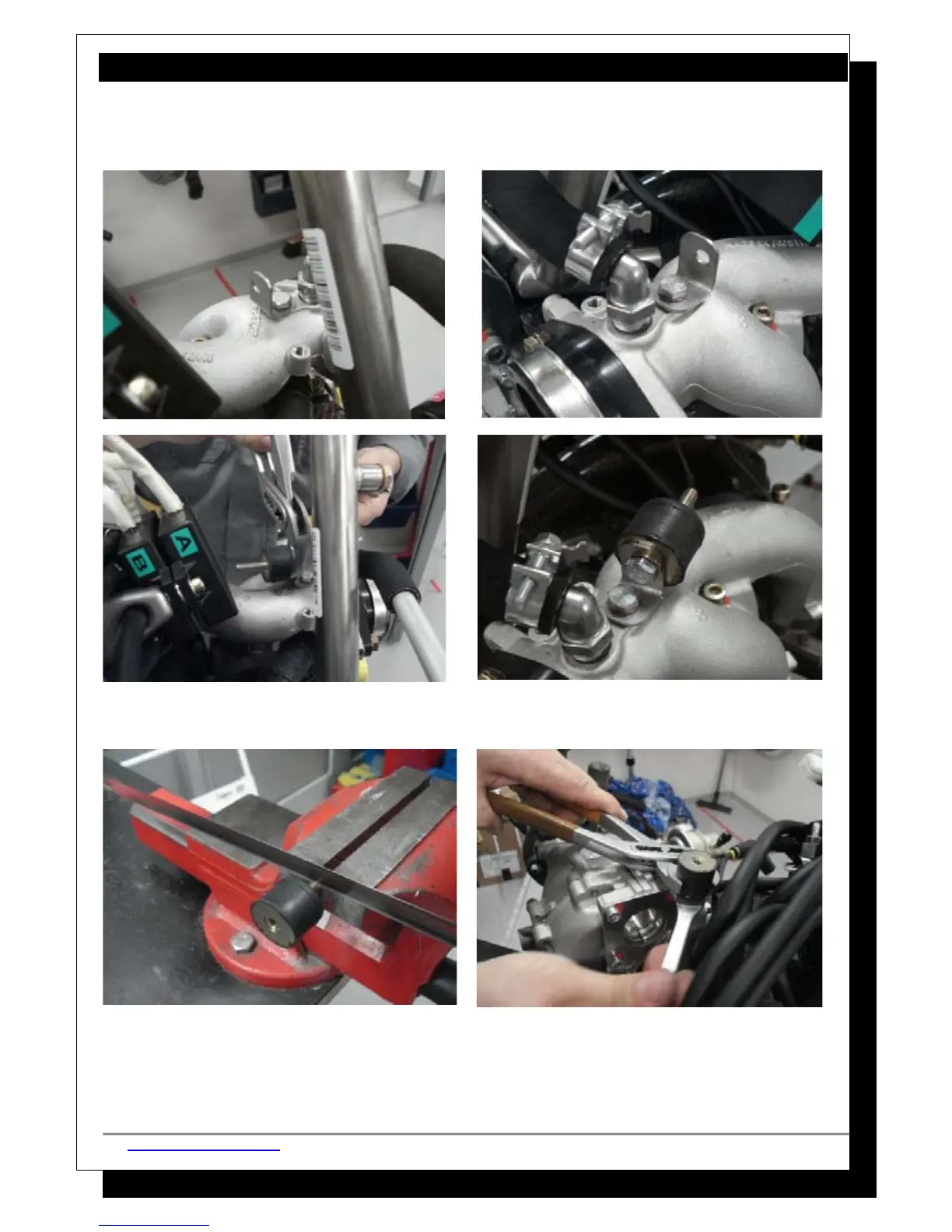

 Fit the small L-shaped bracket with the off-centered hole to the top of cylinder head one.
 Fit the rubber stopper as well.
 Now take another rubber stopper, trip it's thread down to 8.5mm, clean it up a little and mount it on the
other L-shaped bracket you fit earlier.
 Take the other 44mm-long bracket fit it above cylinder head 3, pinning both grounding wires
underneath the bolt.
 Find the longer rubber stopper, which has thread on both ends, and shorten one side to 8.5mm. Fit it
to the bracket you just mounted above cylinder head 3, with the shorter thread facing down.
http://www.pipistrel.si © Pipistrel Release March 2009 © Page 136 of 267

Pipistrel Sinus Specifications

General

Manufacturer	Pipistrel
Seats	2
Rate of climb	5.5 m/s (1, 080 ft/min)
Ballistic parachute rescue system	Optional
Engine	Rotax 912
Type	Motor glider
