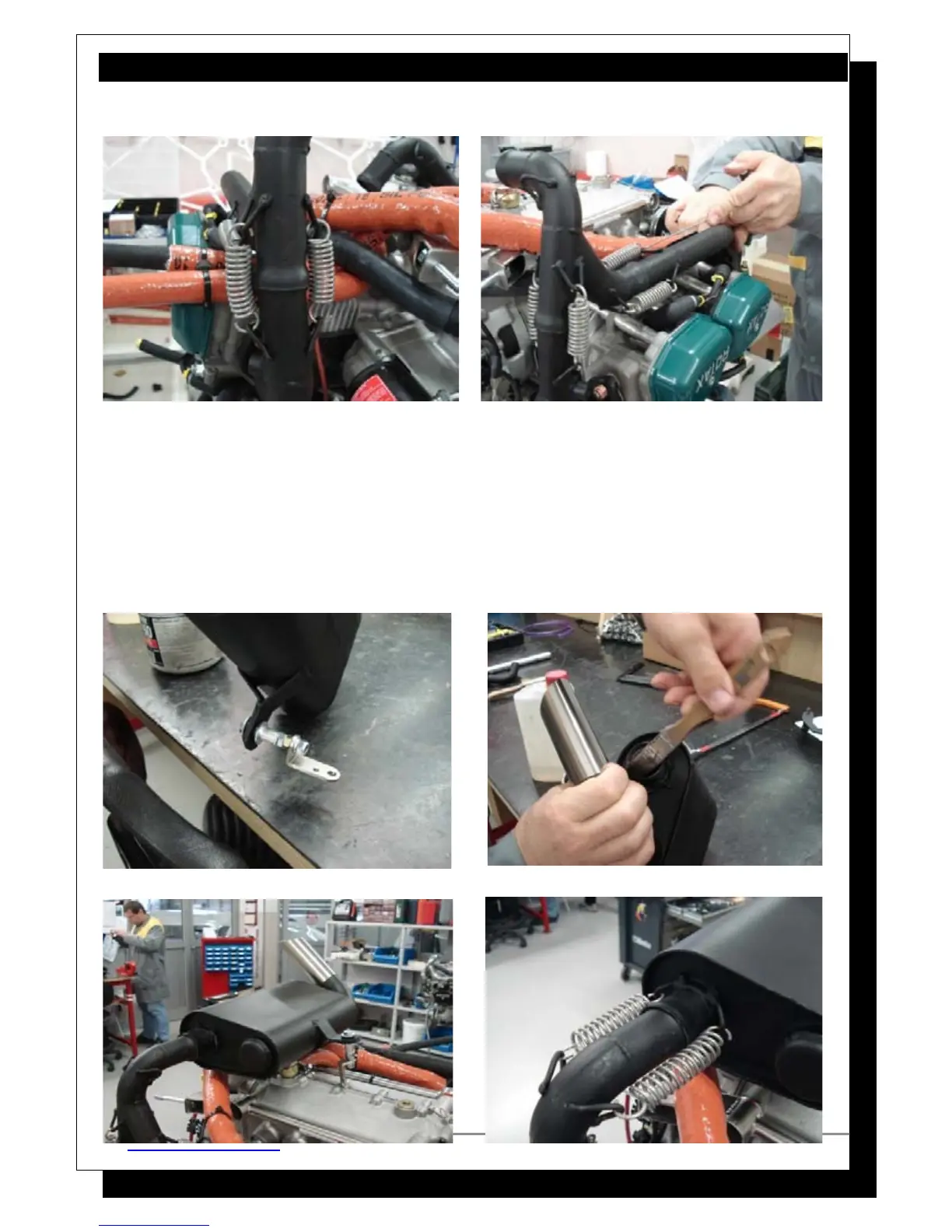

 Prepare the muffler but spreading the Antiseize around the inlets and outlets.
 Prepare the support bracket assembly. This includes a bolt, 4 washers, two rubber seals,
two standard nuts, a polystop nut, a spacer and an L-shaped bracket. The placement
order is as follows. Bolt, big washer, rubber seal, muffler bracket, rubber seal, big
washer, spacer, small washer, nut, nut, L-shaped bracket, small washer, polystop nut.
 Apply blue Loctite 243.
 Mount the springs to fix the muffler in place.
 Coax and adjust the exhaust system's components to achieve proper placement.
 Tighten the nuts at the exhaust ports. Tighten them as evenly as possible until
everything is snug.
