Pipistrel Sinus User Manual

K i t M a n u a l f o r P i p i s t r e l S i n u s a n d V i r u s A i r c r a f t
the fuselage floor and apply Loctite 243. Orient the bolts so that their heads are outside
the fuselage.
 Mark all permanent fixations with red paint.

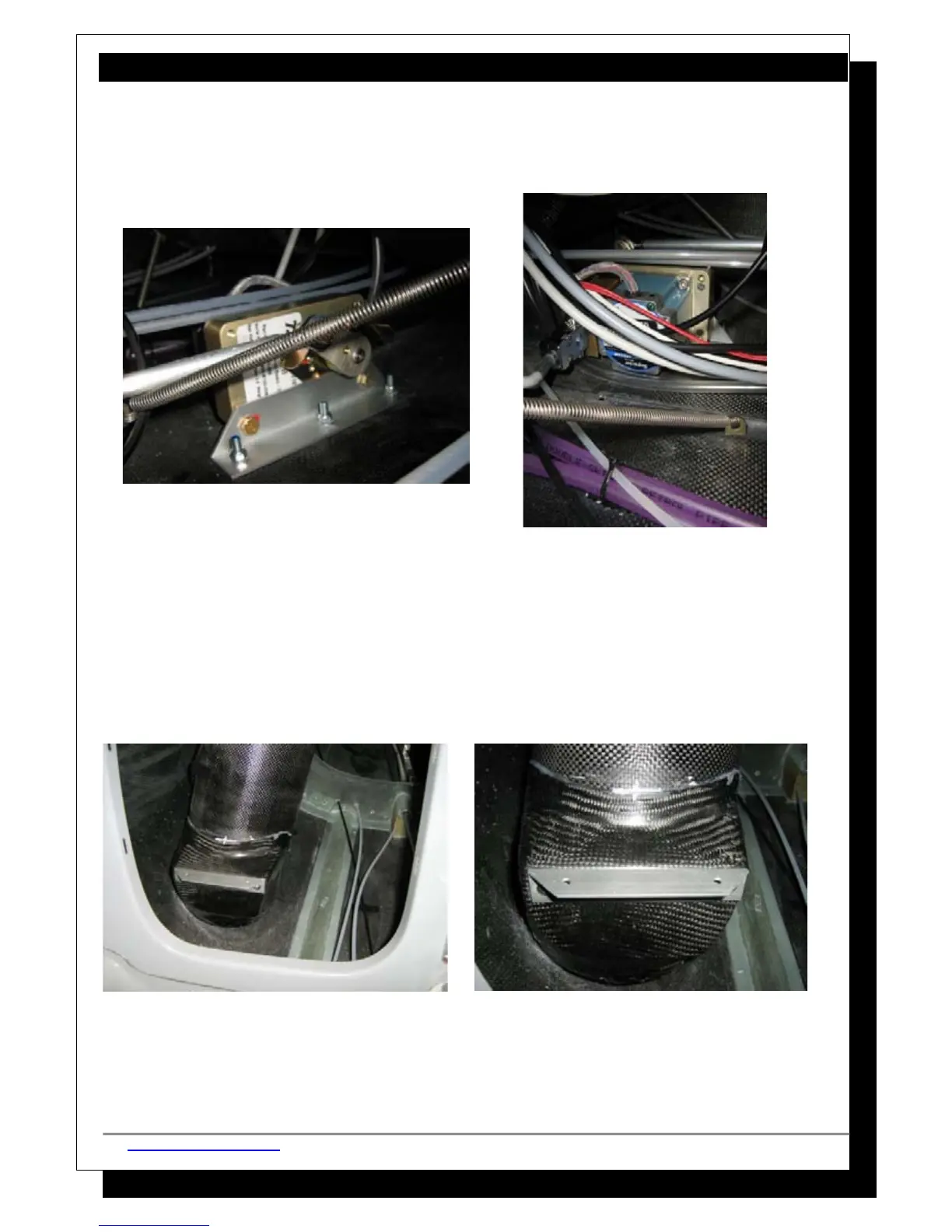

Mounting the Roll Servomotor
The roll servomotor, once activated, controls the aircraft's roll movements. The servomotor's
position is very important, and thus it's mounting L-profile brace comes already mounted on the
parachute storage container as shown in the photo below.
 Begin by preparing the servomotor's mounting brace. You need to clip the two little tabs
off as seen in the photos below. This can be done by placing a ruler up against the
movement restricting tabs, drawing a line across the two tabs and then cutting them off.
http://www.pipistrel.si © Pipistrel Release March 2009 © Page 242 of 267

Pipistrel Sinus Specifications

General

Manufacturer	Pipistrel
Seats	2
Rate of climb	5.5 m/s (1, 080 ft/min)
Ballistic parachute rescue system	Optional
Engine	Rotax 912
Type	Motor glider
