K i t M a n u a l f o r P i p i s t r e l S i n u s a n d V i r u s A i r c r a f t
 Cut the holes with the Dremel tool and make the hole where the cable runs through about
1mm bigger than marked so you don’t see the hole when the assembly is finally in place.

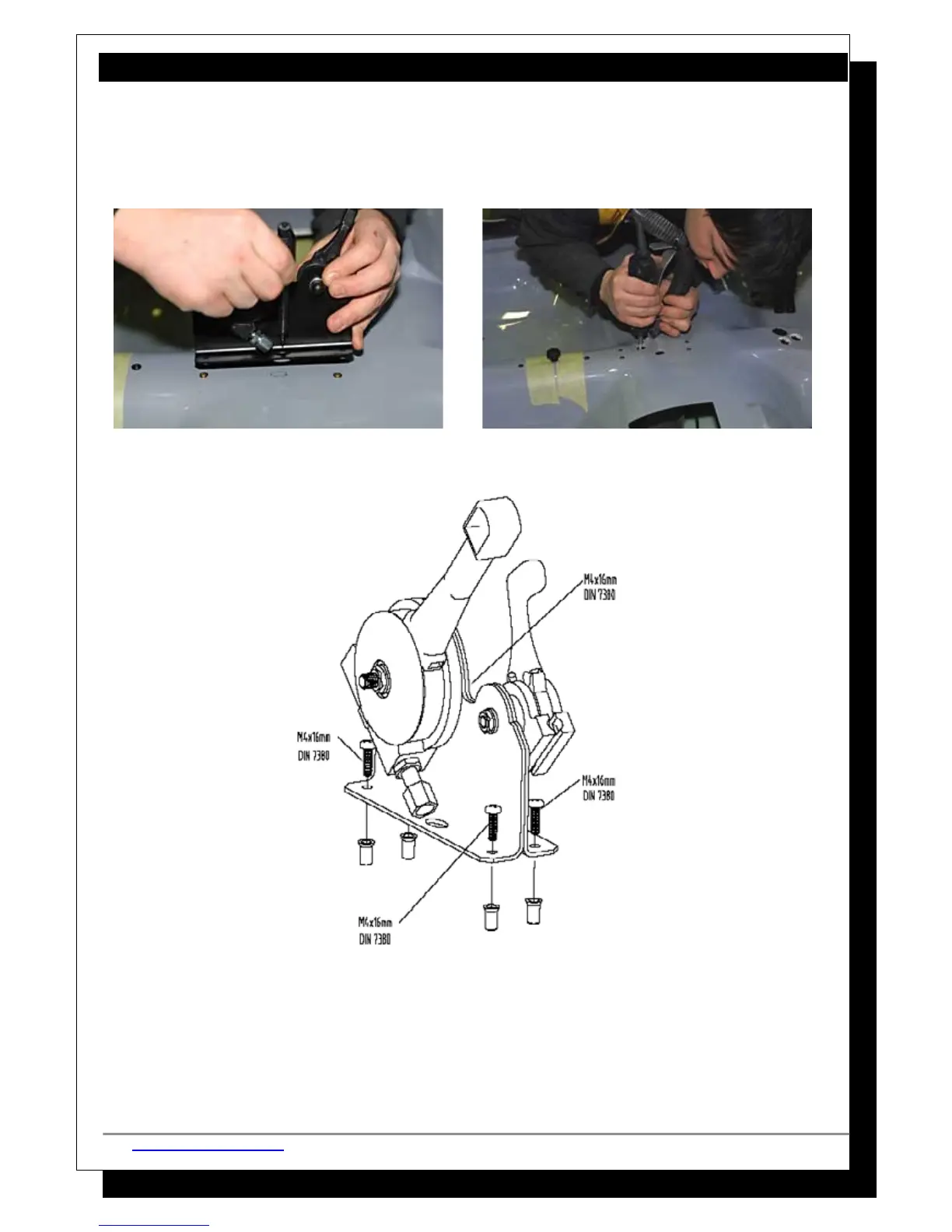

 Mount the throttle assembly using the 4 screws provided and secure with red Loctite 262.
 Mount the flap handle and check that it is aligned properly. This can be done by stepping
in front of the aircraft and lining it up with the windscreens support bar. First push the
assembly down and then backwards. The cutout in the cockpit support beam can be
grinded a little bigger in order to make the flap handle assembly fit nicely. See Appendix
2 for a diagram of the cabin floor cutout
 Be sure to mount the flap handle so that the angle brackets point towards the engine and
not towards the rudder, as shown in the diagram and pictures below.
http://www.pipistrel.si © Pipistrel Release March 2009 © Page 35 of 267

Pipistrel Sinus Specifications

General

Manufacturer	Pipistrel
Seats	2
Rate of climb	5.5 m/s (1, 080 ft/min)
Ballistic parachute rescue system	Optional
Engine	Rotax 912
Type	Motor glider
