K i t M a n u a l f o r P i p i s t r e l S i n u s a n d V i r u s A i r c r a f t
Parachute placement:

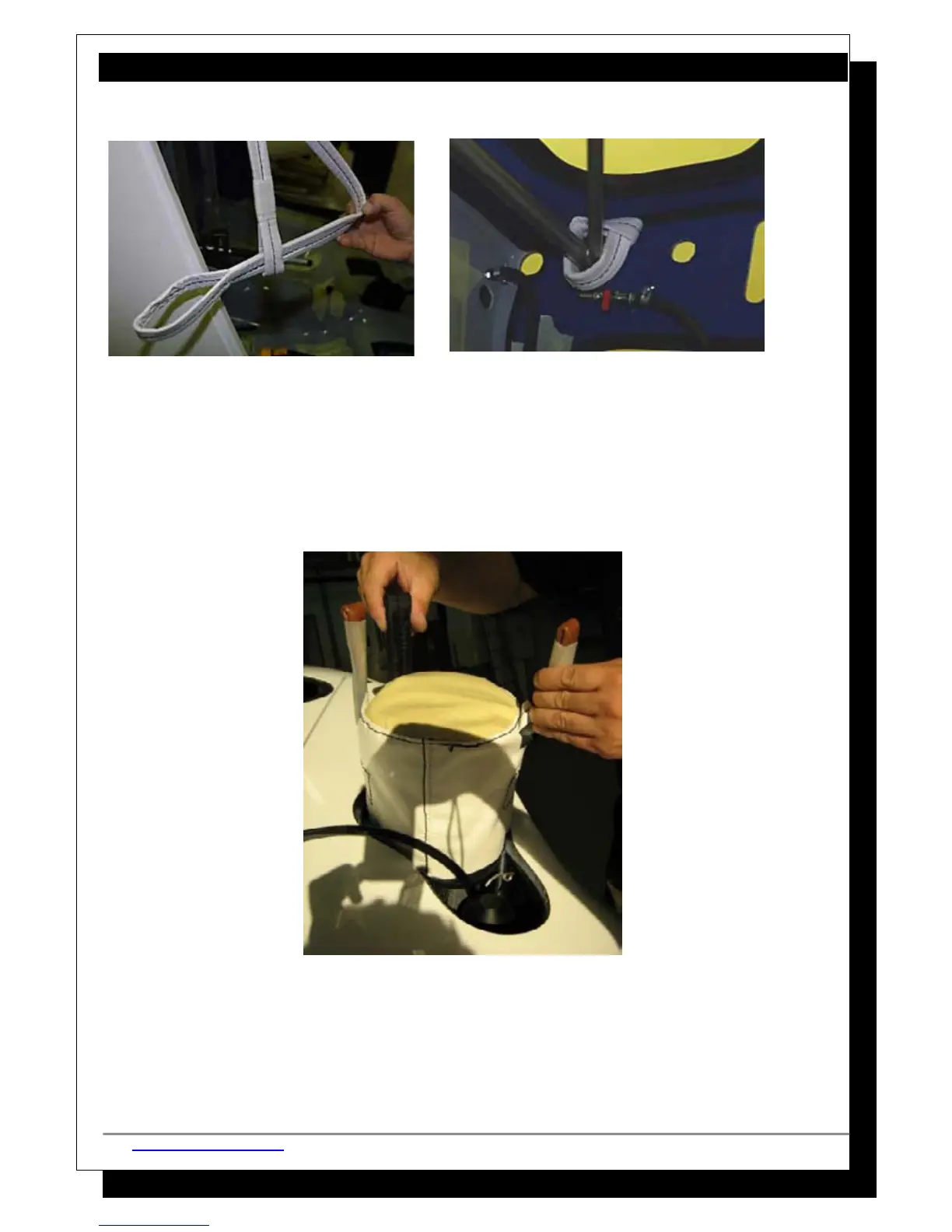

 Place the parachute in the parachute holder as shown in the picture below. The
parachute's release straps (brown with plastic sheaths) should also be aligned
appropriately (as shown)
 Use a carabiner to connect both of the parachute's release straps with the rocket
assembly's connecting strap. Apply Loctite 243 before closing the carabiner.
 Slide the thin rubber sleeve over the carabiner and temp it with a heat iron so that it fixes
itself to the carabiner/strap junction.
http://www.pipistrel.si © Pipistrel Release March 2009 © Page 45 of 267

Pipistrel Sinus Specifications

General

Manufacturer	Pipistrel
Seats	2
Rate of climb	5.5 m/s (1, 080 ft/min)
Ballistic parachute rescue system	Optional
Engine	Rotax 912
Type	Motor glider
