K i t M a n u a l f o r P i p i s t r e l S i n u s a n d V i r u s A i r c r a f t

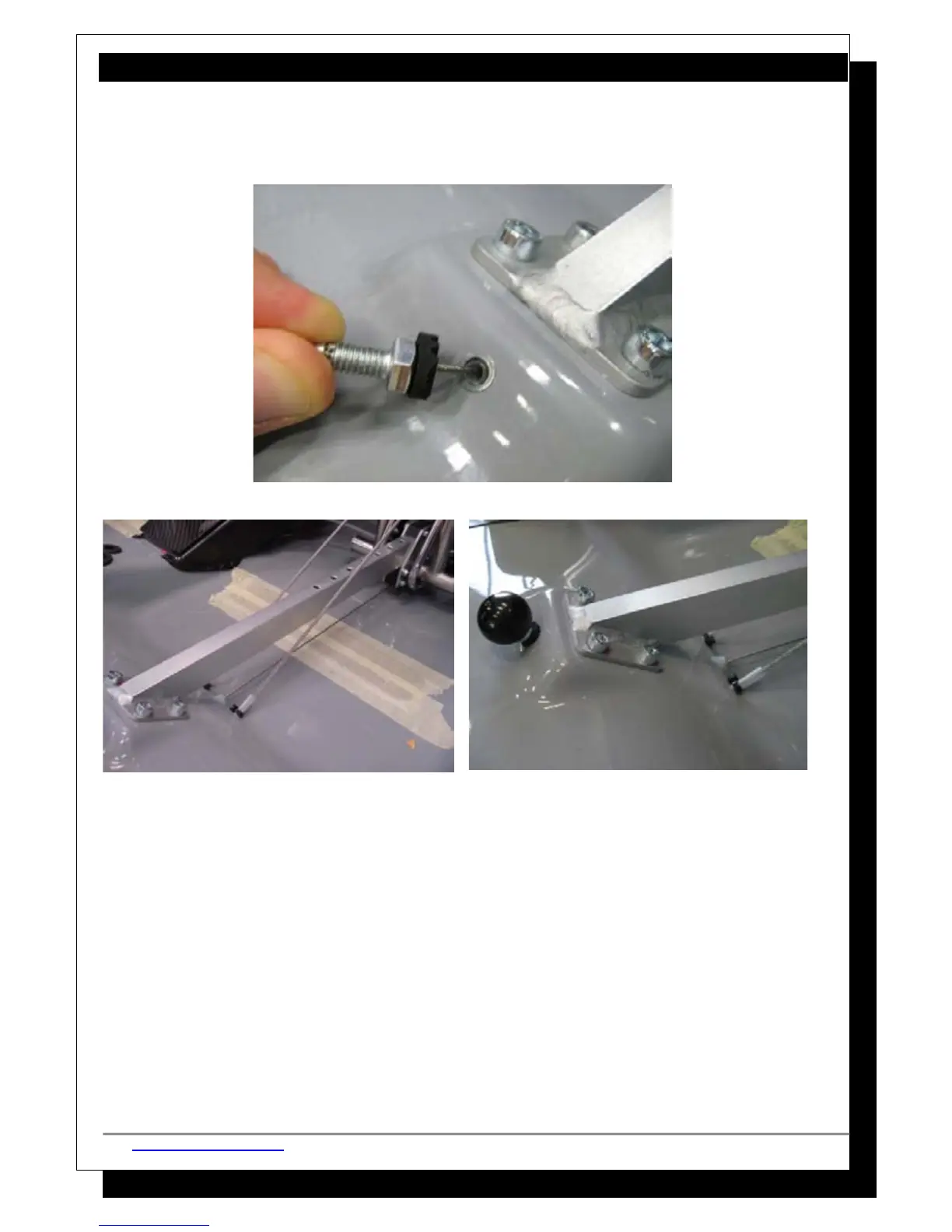

Then make a small loop at the end of the chord, fasten with a fastener and
screw on the small knob.
Mounting the spring:
First you must drill two holes; the first should be drilled in the right side of
the carbon support (when looking towards to the motor from the rudder)
under the cabin floor. The other should be drilled in the fuselage just in
front of the undercarriage on the left side of the fuselage.
Fix the small L-profile bracket into the left hole and fasten with a bolt.
Now twist the ends of the spring into hooks and connect one end to the L-
profile bracket (or to the carbon support), and the other end to the pedal
adjustment cord, just between the two cable outers.
Do the same with another spring between the hole in the carbon support
and the other pedal adjustment cord.
http://www.pipistrel.si © Pipistrel Release March 2009 © Page 67 of 267
