K i t M a n u a l f o r P i p i s t r e l S i n u s a n d V i r u s A i r c r a f t

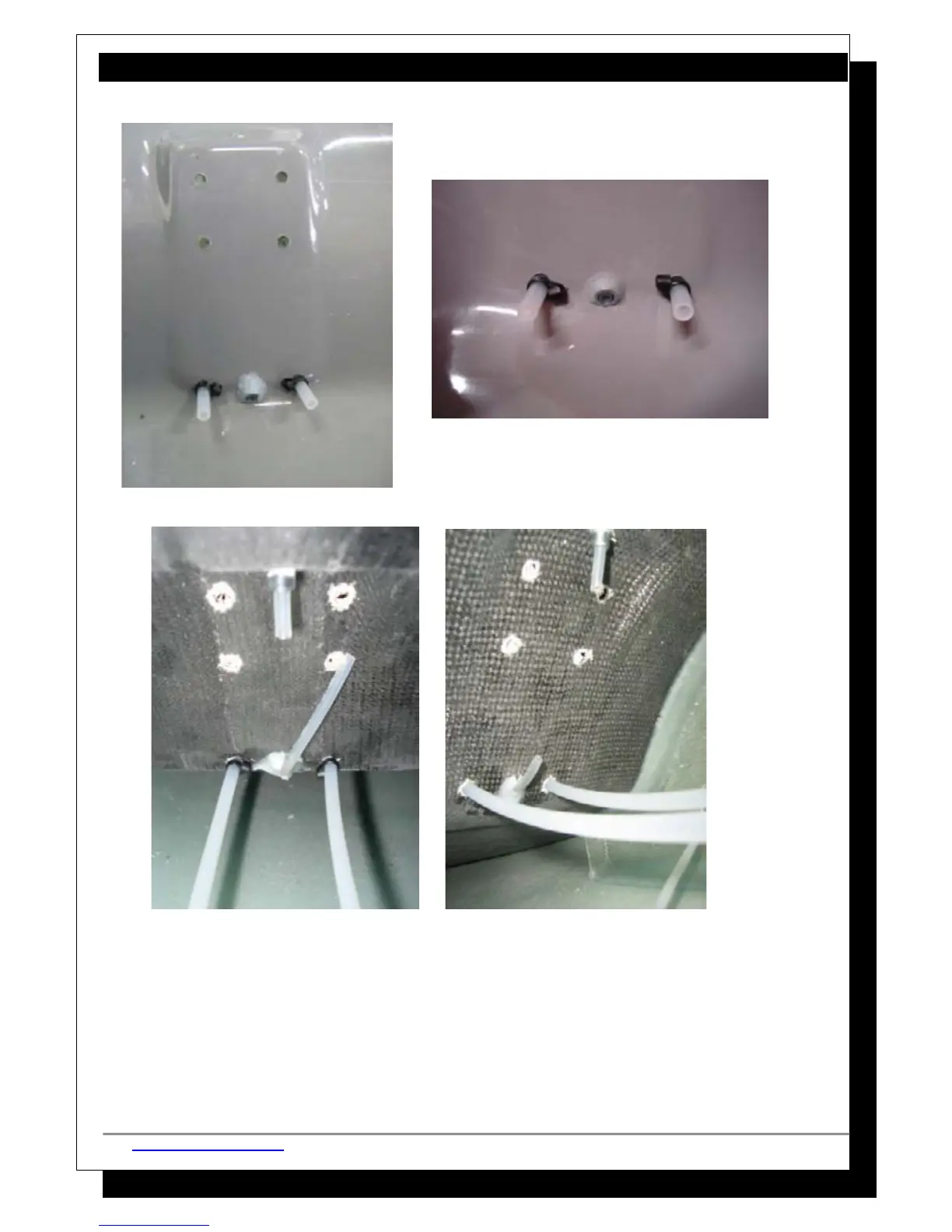

 Mount the pedal assemblies and apply Loctite 243 to the bolt threads.
Slide the pedals all the way to the end of the guide, so that they rest as
close to the firewall as possible. Feed the pedal adjustment chord through
the lower hole, under the cabin floor and up through the hole above the
pedal's rear mounting plate.
 Slide the rubber stopper and then the hollow hex bolt over the chord.
Hold the chord taut (not slack and not too tight) and measure the distance
from the rivet to the end of the chord. It should measure approx. 35 mm.
http://www.pipistrel.si © Pipistrel Release March 2009 © Page 66 of 267

Pipistrel Sinus Specifications

General

Manufacturer	Pipistrel
Seats	2
Rate of climb	5.5 m/s (1, 080 ft/min)
Ballistic parachute rescue system	Optional
Engine	Rotax 912
Type	Motor glider
