K i t M a n u a l f o r P i p i s t r e l S i n u s a n d V i r u s A i r c r a f t

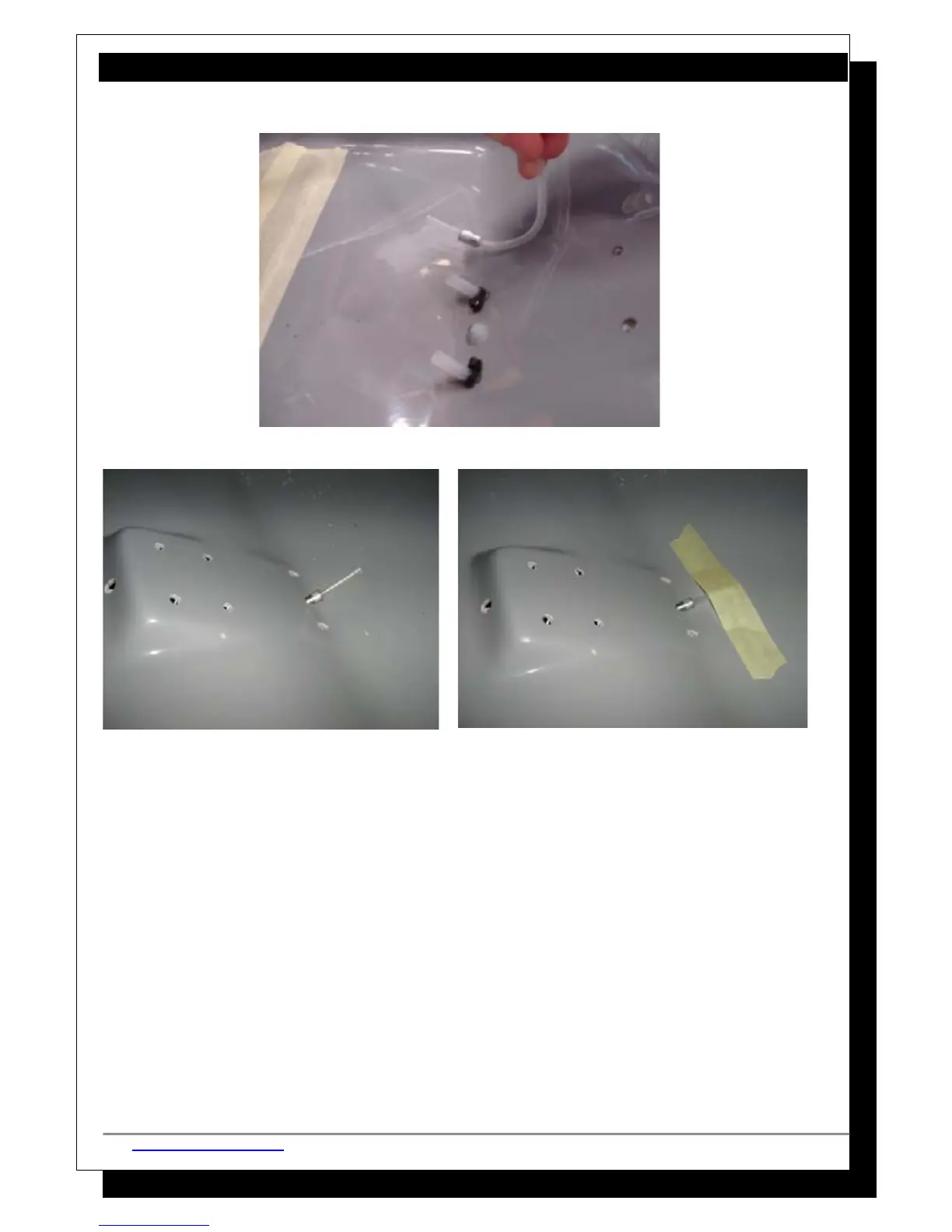

 Slide the insert and cable outer into the hole you drilled before. Now tilt
the insert downwards, so it points directly towards the firewall, parallel to
the cabin floor. First fix it in place using some masking tape as shown
above, and then apply epoxy resin around the insert on both sides of the
cabin floor for a more solid fixation. This is done to provide for smooth
cable movement.
Note: Previously, the insert was fixed directly to the cabin floor and the
cable entered it at an angle, which hampered movement. With the insert
facing forwards, the cable should move freely and without snags.
 Now trim the cable outer inside the cabin flush to the insert. Under the
cabin floor be sure to leave approximately 50mm of cable outer.
http://www.pipistrel.si © Pipistrel Release March 2009 © Page 65 of 267

Pipistrel Sinus Specifications

General

Manufacturer	Pipistrel
Seats	2
Rate of climb	5.5 m/s (1, 080 ft/min)
Ballistic parachute rescue system	Optional
Engine	Rotax 912
Type	Motor glider
