K i t M a n u a l f o r P i p i s t r e l S i n u s a n d V i r u s A i r c r a f t

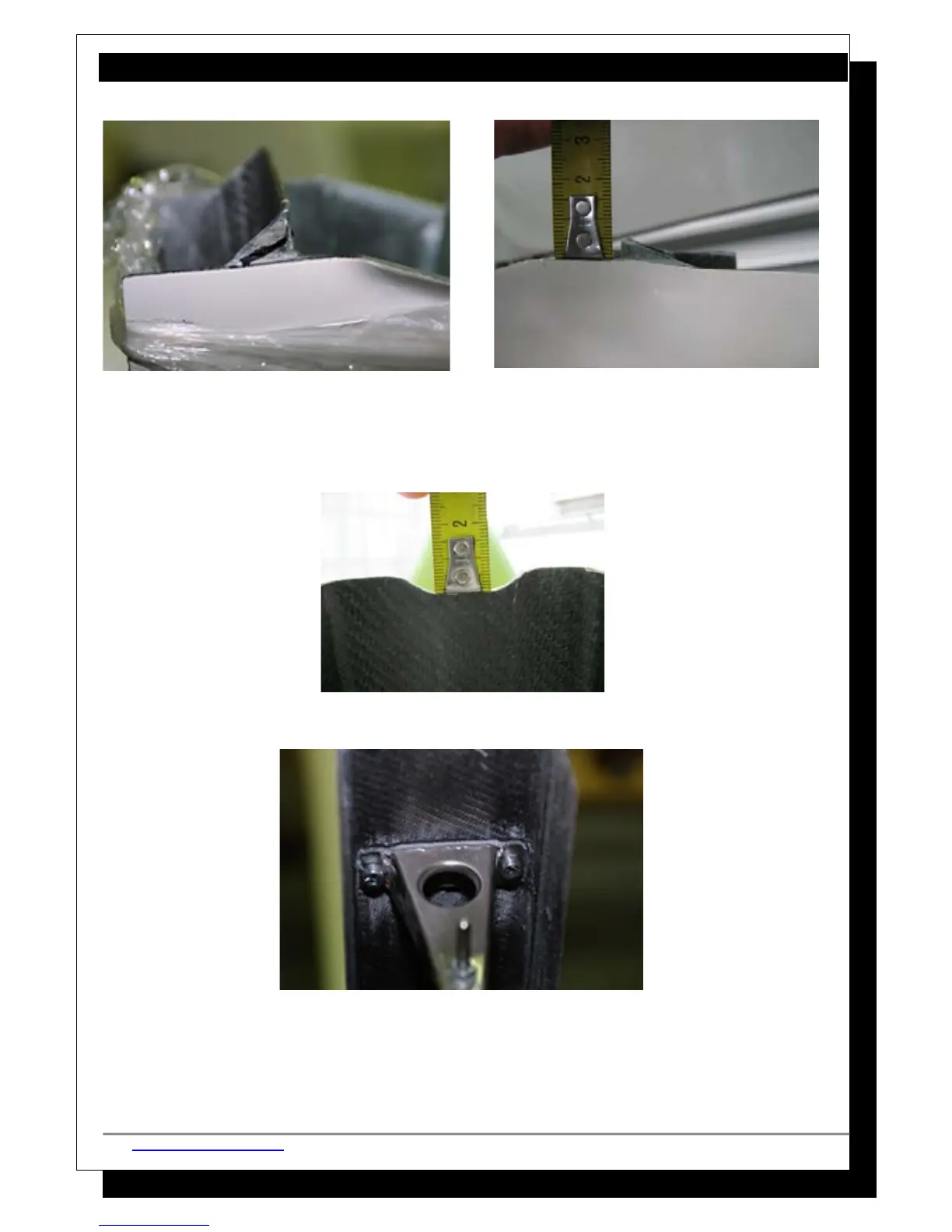

Original lip – grinding outline Ground lip
 Then a small indent in the lip must be ground. This is to ensure that the lip will not
hinder the movement of the elevator horn's bracket. The indent should also be approx. 5
– 6 mm deep.
 Lastly, before mounting the upper rudder bracket, be sure to grind and clean the surface.
Mounting the top rudder post and the elevator assembly:
 Drill and attach the top rudder post. The nuts are difficult to fit and require patience, so
try not to drop anything. The actual post assembly is already epoxied in place in an
earlier section.
http://www.pipistrel.si © Pipistrel Release March 2009 © Page 89 of 267
