BT37 MarkII: Service Manual MA200606 1.0.0
Component replacement

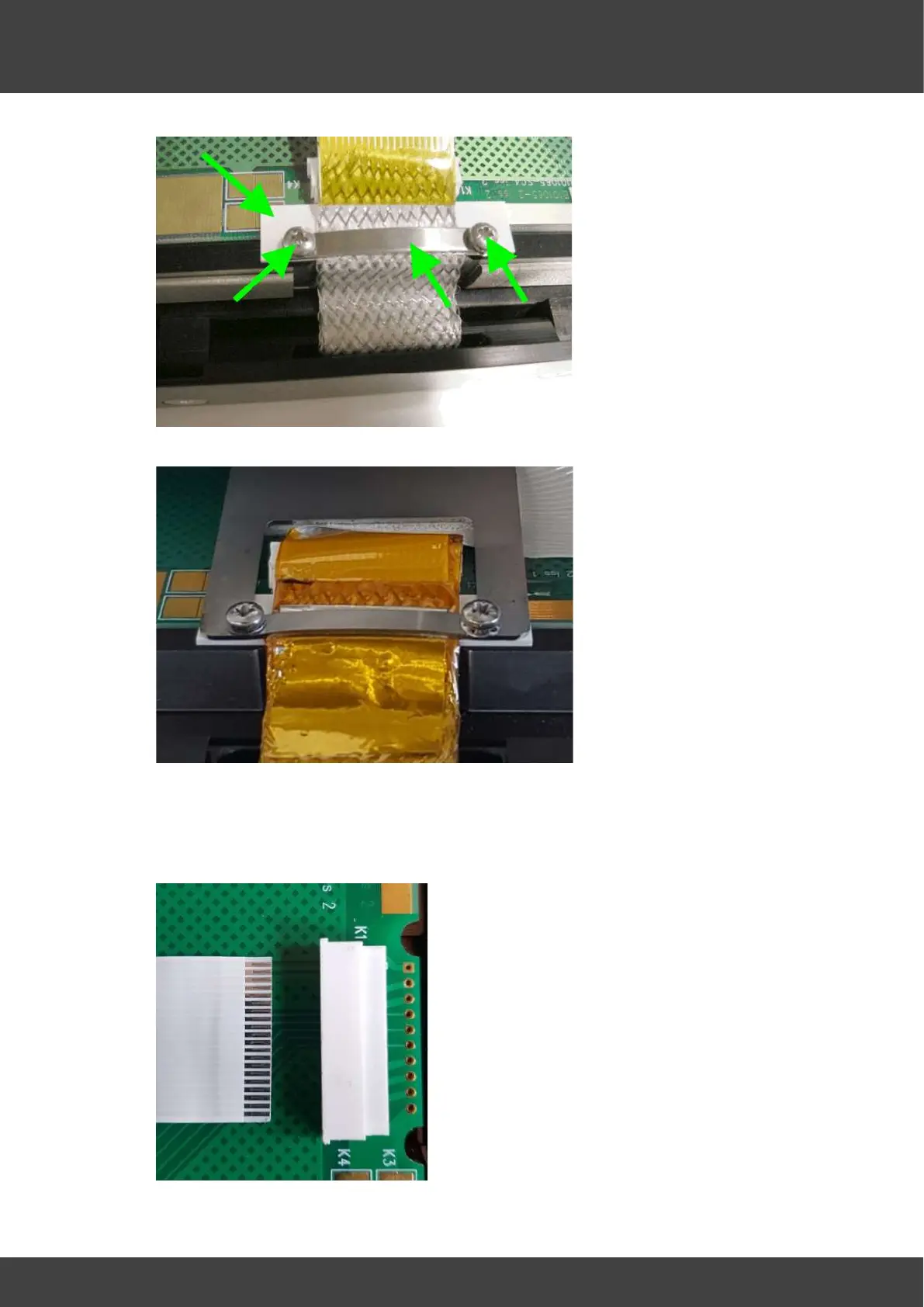

Fig.1a Clamping bar holding FCC cable to upper heater board.
Fig.1b Clamping bar holding FCC cable to upper heater board.
3) Remove the 20_way FCC cable from the lower heater board by sliding the clamping
mechanism on its connector to the open position and then gently pulling the cable out
of the connector, see Fig.2
Fig.2 Connector clamping mechanism in open position.
