BT37 MarkII: Service Manual MA200606 1.0.0
Component replacement

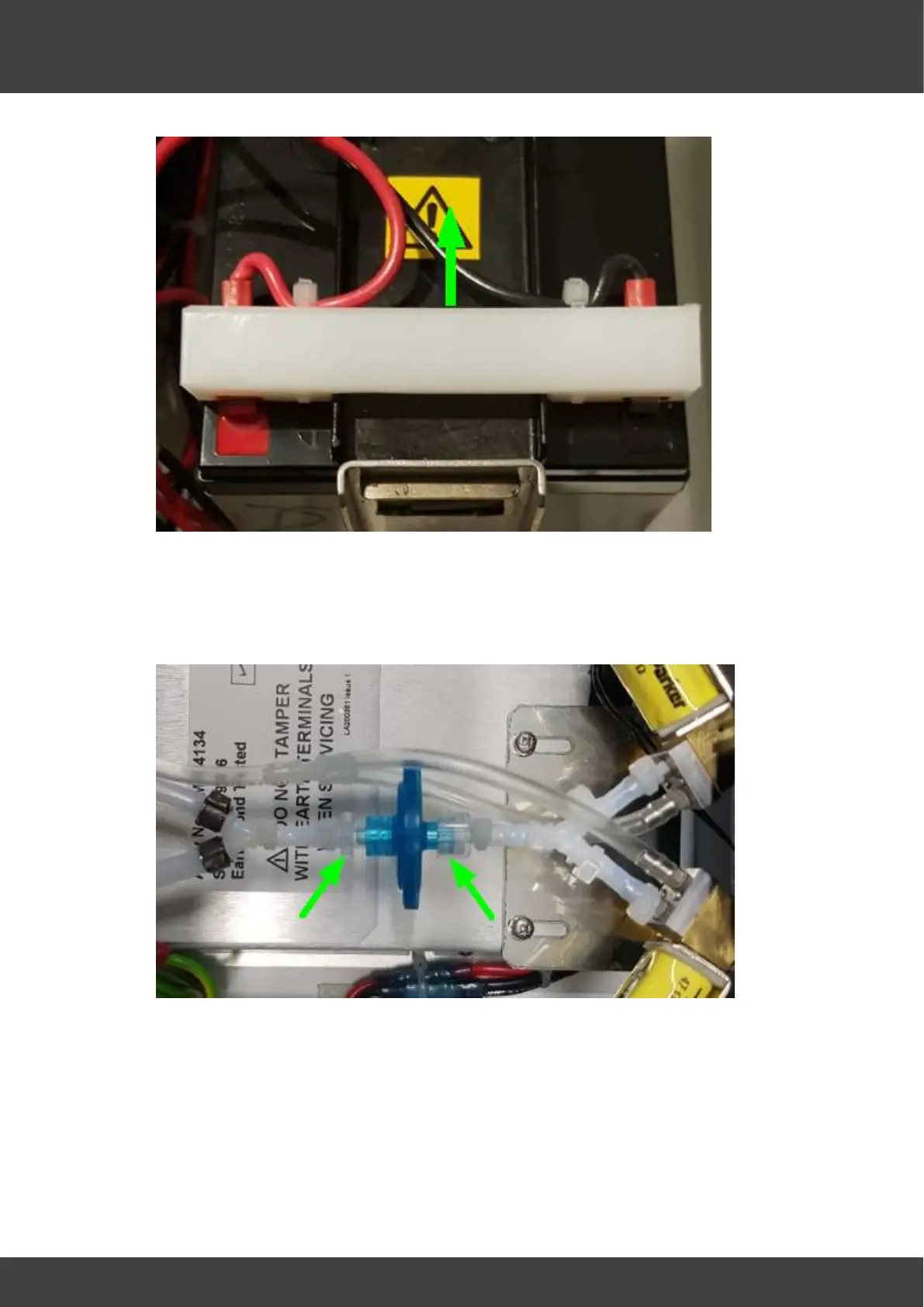

Fig_2 Remove reverse-polarity-protection bar and connections.
3) Insulate the exposed battery terminals with insulating tape before
proceeding.
4) Disconnect the rear panel gas manifold assembly from the internal filter and control
valves by rotating the luer connectors that secure the internal filter, see Fig_3.
Fig_3 unscrew luer connectors to remove gas filter
5) Loosen the screws that secure the humidifier assembly within the enclosure by 3
turns each.
6) Remove the screws along both sides and the base that secure the front panel of the
incubator to the enclosure as shown in Fig_2.
To Next Page
