1080p SIP Vandalproof Door Phone with RFID and PoE
HDP-1261PT
19
2.2 Hardware Installation
Wall mounting steps:

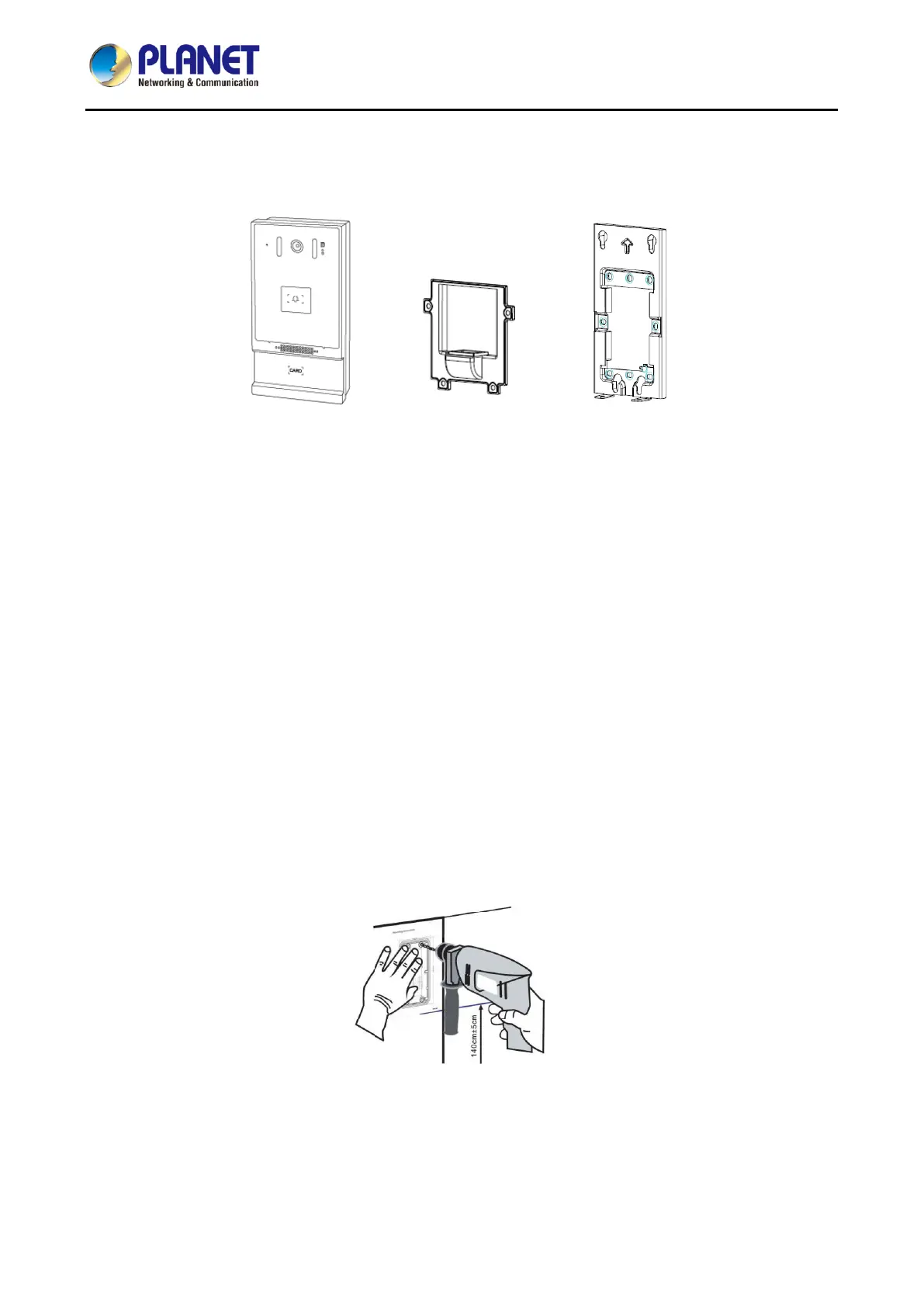

Figure 2-2-1 Three Major Parts of HDP-1261PT
(Main Body, Back Shell and Wall Bracket)
Step 1: Installation preparation
A. Check the following contents:
• φ5.2*φ3*6mm screws x 3
• TA4*30mm screws x 5
• φ6*30mm screw anchors x 5
• PM4*16mm screw x 3
• TM6*20mm screw x 5
• Screw Driver x 1
• Pin Cable x 1
B. Tools that may be required:
• Phillips screwdriver, hammer, RJ45 crimper
• Electric impact drill with an 8mm drill bit
Step 2: Drilling
Figure 2-2-2 Wall Mounting
To Next Page
