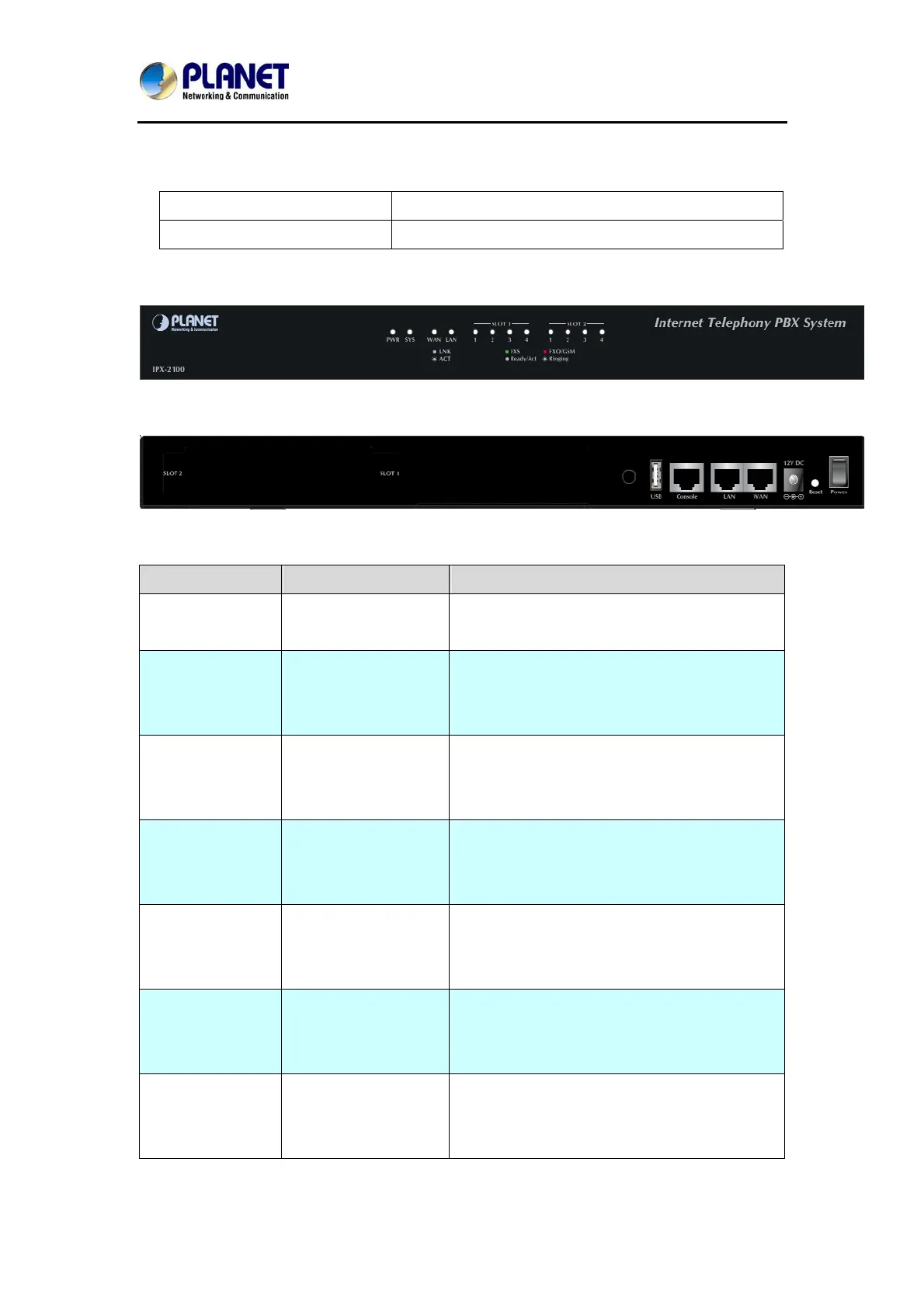

1.2.2 Physical Specifications of IPX-2100
Dimensions
Dimensions (W x D x H)
343 x 154 x 35 mm
Net Weight
1.4 kg (without package)
Front Panel
Rear Panel
LED definitions
Front Panel LED Status Description
PWR
Steady Green
Off
PBX Power ON
PBX Power OFF
SYS
Blinking Green
On
Off
System is working
System doesn’t boot
System failure
WAN
Blinking Green
On
Off
Data transfer
PBX network connection is established
Waiting for network connection
LAN
Blinking Green
On
Off
Data transfer
PBX network connection is established
Waiting for network connection
FXO
Steady Red
Flashing
Off
Ready/Standby
Ringing
Module not available
GSM
Steady Red
Flashing
Off
Ready/Standby (SIM card inserted)
Ringing
No SIM card insert
FXS
Steady Green
Flashing
Off
Ready/Standby
Ringing
Module not available
