User Manual of VDR-301N
17

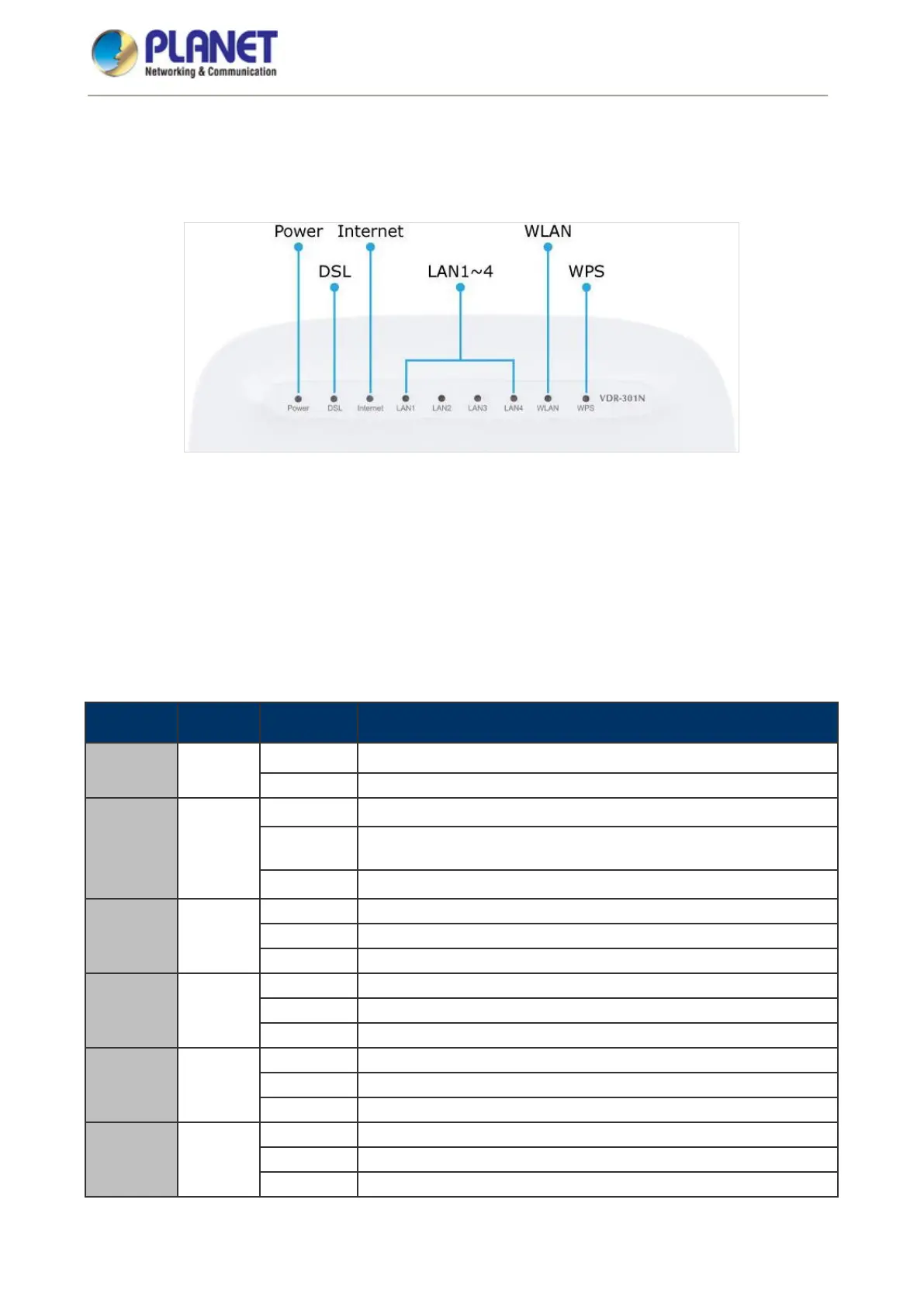

2.1.1 Front Panel of VDR-301N
The front panel provides a simple interface monitoring of the router. Figure 2-1 shows the front panel of the
VDR-301N.
Figure 0-1 VDR-301N Front Panel
2.1.2 LED Indications of VDR-301N
The LEDs on the top panel indicate the instant status of system power, WAN data activity and port links, and
help monitor and troubleshoot when needed. Figure 2-1 and Table 2-1 show the LED indications of the
VDR-301N.
Front Panel LED Definition
LED
Color State Description
Power Green
ON When the router is powered on, and in ready state.
OFF
The device is powered off.
DSL
Green
ON
The WAN is connected successfully.
Flashing
Router is trying to establish a WAN connection to VDSL2 device or
telecom’s network.
OFF The device is powered off.
Internet
Green
ON
Internet is synchronized successfully in the route mode.
Flashing
Internet data is being transmitted.
OFF
Ethernet interface is disconnected.
LAN1-4
Green
ON
The Ethernet interface is connected.
Flashing
Data is being transmitted or received via the corresponding LAN port.
OFF
The Ethernet interface is disconnected.
WLAN
Green
ON
WLAN is enabled.
Flashing
Data is being transmitted through the wireless interface.
OFF
WLAN is disabled.
WPS
Green
ON
Connection succeeds under Wi-Fi Protected Setup.
Flashing
Negotiation is in progress under Wi-Fi Protected Setup.
OFF
Wi-Fi Protected Setup is disabled.
Table 2-1 The LED Indication of VDR-301N
