15-18
protocol-vlan mode {ethernetii etype
<etype-id>|llc {dsap <dsap-id> ssap
<ssap-id>}|snap etype <etype-id>} vlan
<vlan-id> priority <priority-id>
no protocol-vlan {mode {ethernetii etype
<etype-id>|llc {dsap <dsap-id> ssap
<ssap-id>}|snap etype <etype-id>}|all}
Add/delete the correspondence between
the Protocols and the VLAN, namely
specified protocol joins/leaves specified
VLAN.
7. Adjust the priority of the dynamic VLAN
dynamic-vlan mac-vlan prefer
dynamic-vlan subnet-vlan prefer
Configure the priority of the dynamic
15.5.3 Typical Application of the Dynamic VLAN
Scenario:
In the office network Department A belongs to VLAN100. Several members of this department often have the
need to move within the whole office network. It is also required to ensure the resource for other members of
the department to access VLAN 100. Assume one of the members is M, the MAC address of his PC is
00-30-4f-11-22-33, when M moves to VLAN200 or VLAN300, the port connecting M is configured as Hybrid
mode and belongs to VLAN100 with untag mode. In this way, the data of VLAN100 will be forwarded to the
port connecting M, and implement the communication requirement in VLAN100.

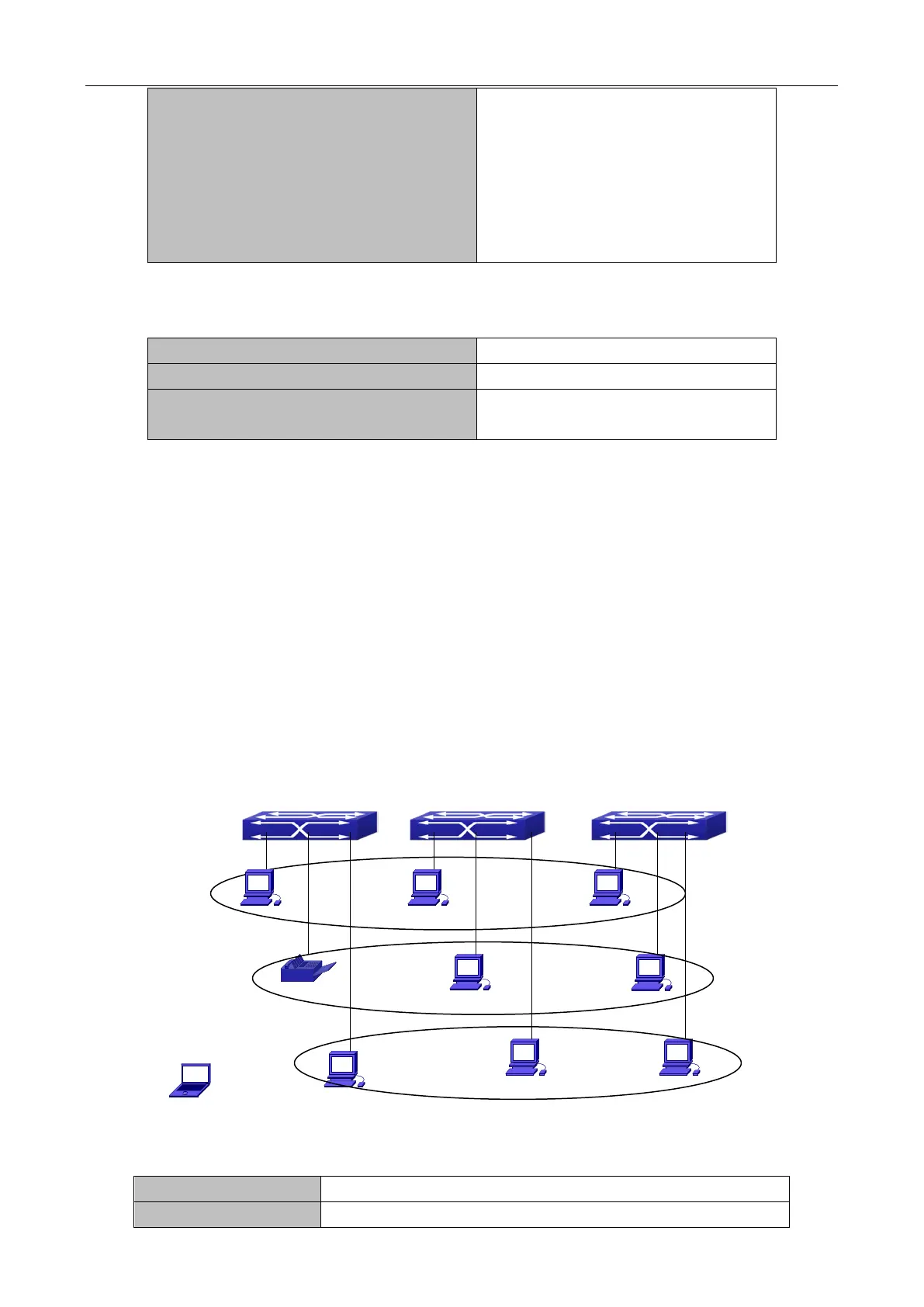

Figure 15-8 Typical topology application of dynamic VLAN
Configuration Explanation
Global configuration on Switch A, Switch B, Switch C.
witchB
00
200
300
