no router IPv6 ospf ospf [<tag>]
Disable OSPFv3 Routing Protocol.
39.3 OSPFv3 Examples
Examples 1: OSPF autonomous system.
This scenario takes an OSPF autonomous system consists of five switch for example.

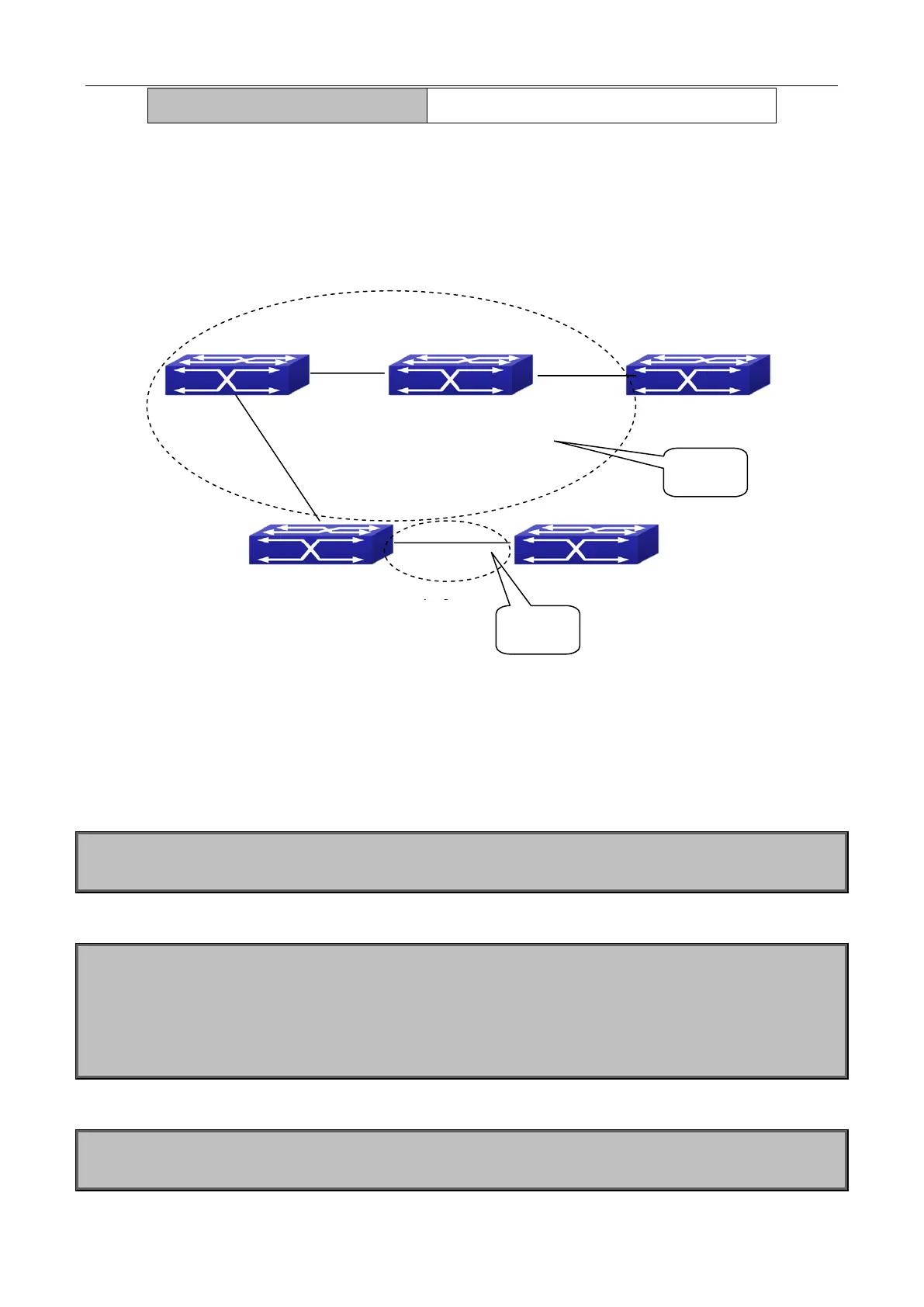

Figure 39-1 Network topology of OSPF autonomous system
The configuration for layer3 SwitchA and SwitchE is shown below:
Layer3 SwitchA:
Enable OSPFv3 protocol, configure router ID
SwitchA(config)#router IPv6 ospf
SwitchA (config-router)#router-id 192.168.2.1
Configure interface vlan1 IPv6 address and affiliated OSPFv3 area
SwitchA#config
SwitchA(config)# interface vlan 1
SwitchA(config-if-vlan1)# IPv6 address 2010:1:1::1/64
SwitchA(config-if-vlan1)# IPv6 router ospf area 0
SwitchA(config-if-vlan1)#exit
Configure interface vlan2 IP address and affiliated OSPFv3 area
SwitchA(config)# interface vlan 2
SwitchA(config-if-vlan2)# IPv6 address 2100:1:1::1/64
SwitchA
SwitchB
SwitchE
SwitchD
SwitchC
E1/0/2: 2010:1:1::1/64
vlan1
E1/0/1: 2010:1:1::2/64
vlan1
E1/0/1:
2100:1:1::1/64
E1/0/1:2100:1:1::2/6
4
E1/0/2:
2020:1:1::1/64
l3
E1/0/1:2020:1:1::2/64
vlan3
E1/0/2:
2030:1:1::1/64
E1/0/1: 2030:1:1::2/64
vlan3
Area 0
Area 1
