Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
Planmeca Proline CC panoramic x-ray E-13
Technical Manual
By repeatedly pressing this key you can select each slot in turn so that they can be checked and,
if necessary, adjusted.

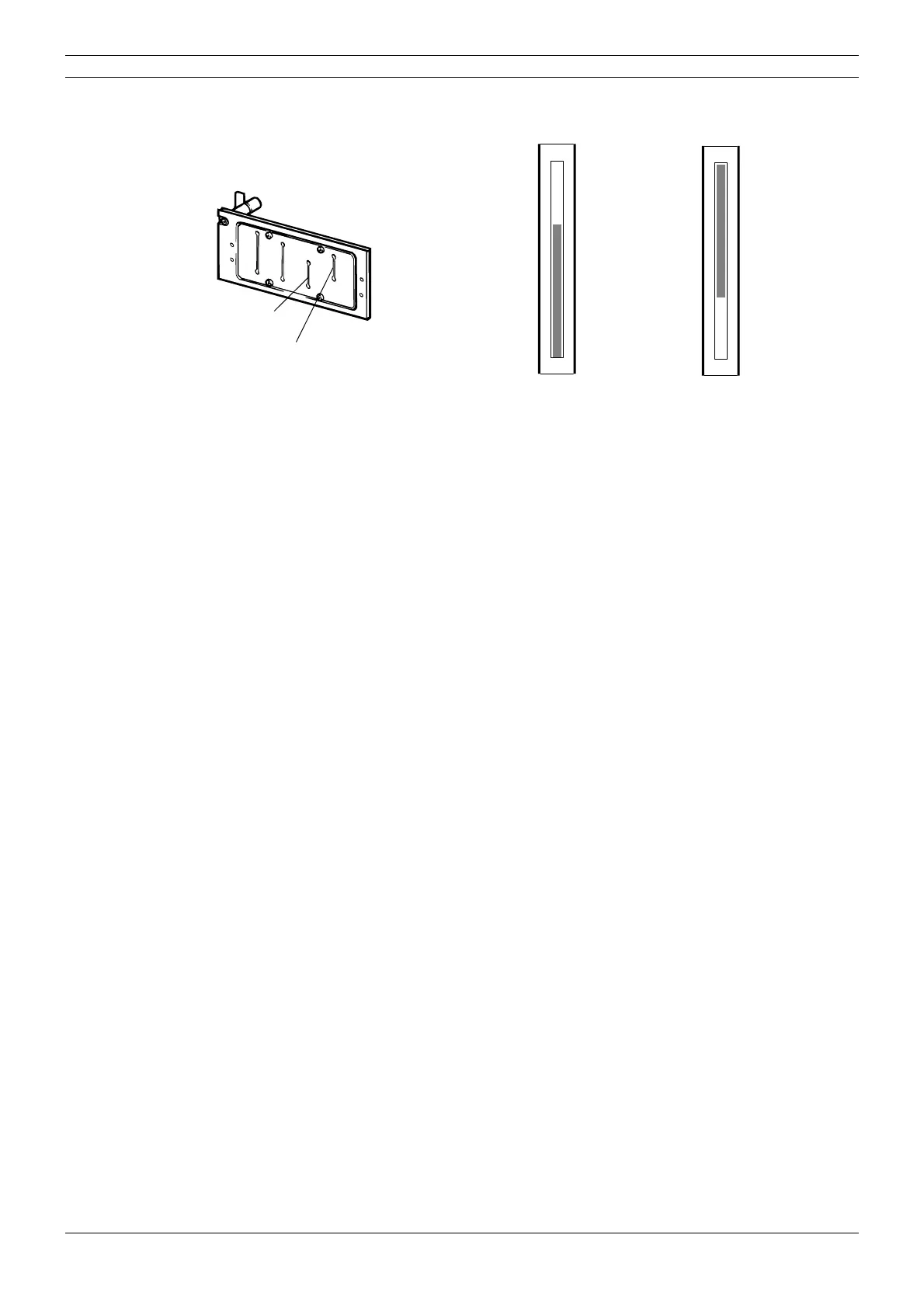

Figure 18
When all the slots have been checked, and if necessary adjusted, exit the service mode and take
a ball phantom exposure to check the position of the patient positioning mechanism, see section
“PATIENT POSITIONING MECHANISM” on page E-27.
Primary slot number 2
Primary slot number 3
Primary slot number 2 Primary slot number 3
UP
DOWN
PM 2002 CC X-RAY BEAM ALIGNMENT SCREEN no. 50972
NOTE: DO NOT LEAVE SCREEN IN DAYLIGHT
UP
DOWN
PM 2002 CC X-RAY BEAM ALIGNMENT SCREEN no. 50972
NOTE: DO NOT LEAVE SCREEN IN DAYLIGHT
