Adjust the head support angle with the two screws (use 2.5mm allen key) located on the left side
of the mechanism (see
Fig. 19 on page E-14 and Fig. 20 below).

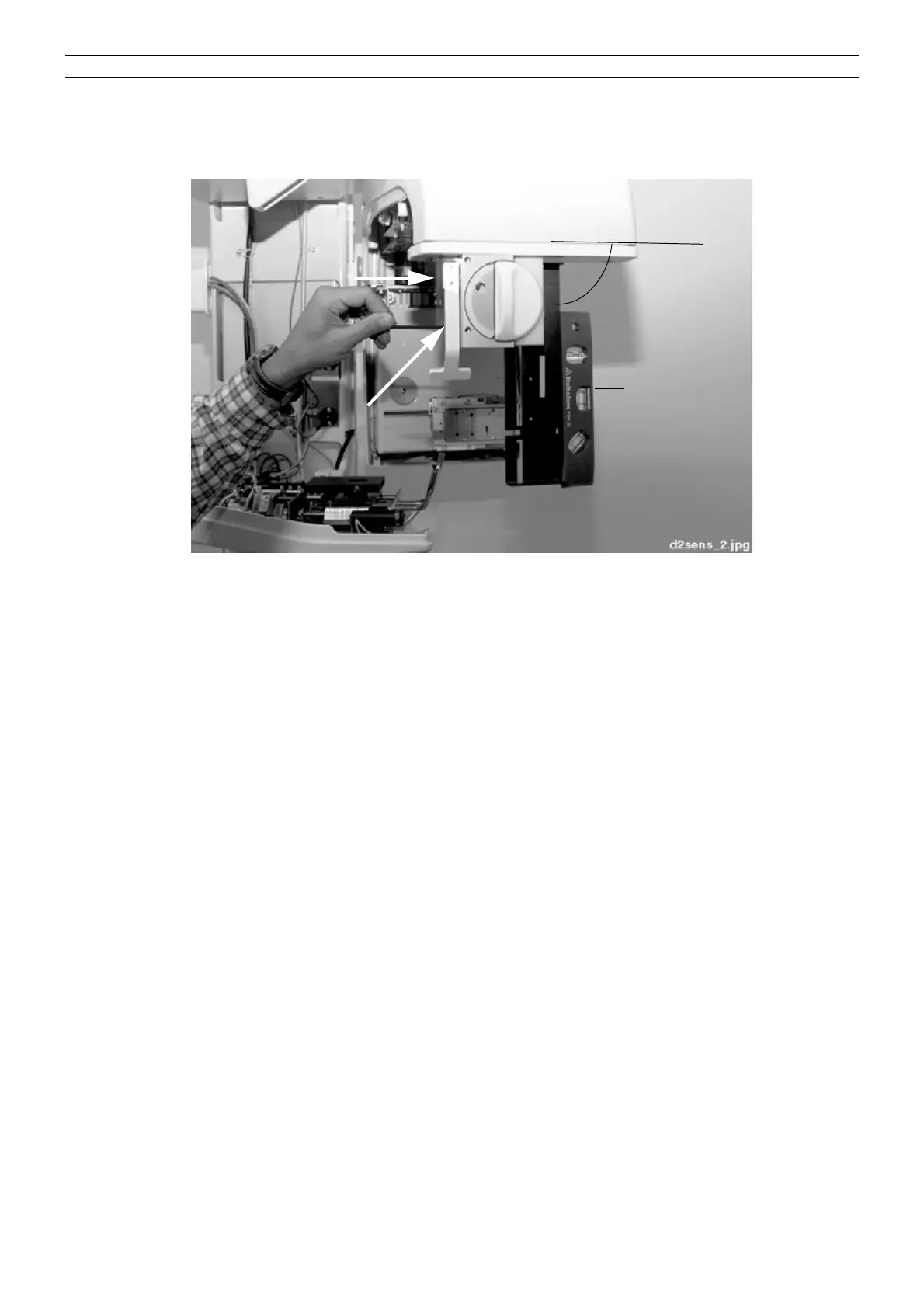

Figure 20
Spirit level
90°
