Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
E-22 Planmeca Proline CC panoramic x-ray
Technical Manual

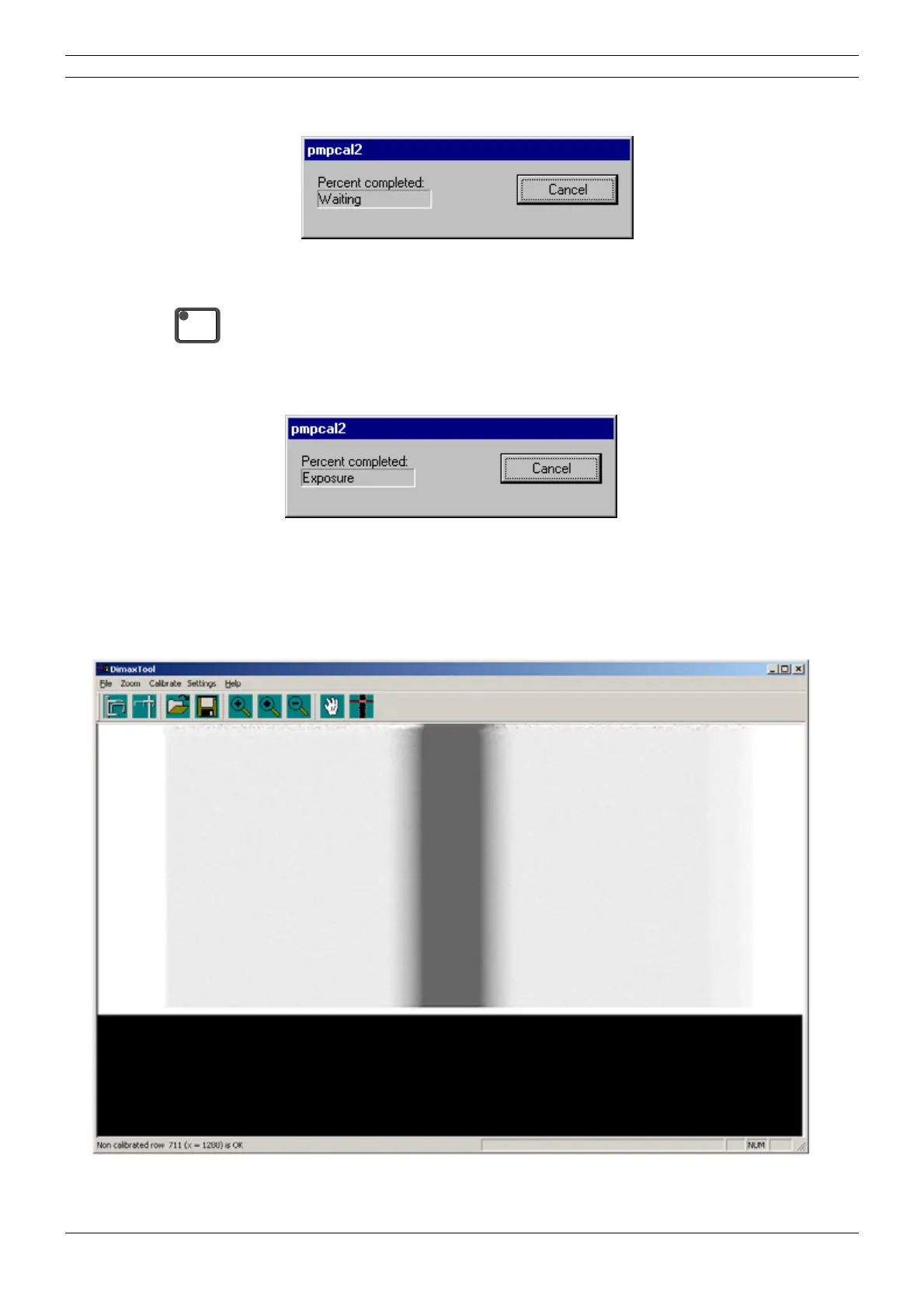

The pmpcal2 window with text Waiting appears.
Figure 37
Press the ready key to drive the x-ray to the exposure position.
The text Exposure appears.
Figure 38
Take an exposure.
The sensor head is now calibrated. After the exposure has been taken the image is shown in the
Dimax2Tool window.
Figure 39
READY
PRET
