Planmeca Proline CC - Cephalostat sensor head with quick connector mechanism - removing the covers

Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
Planmeca Proline CC panoramic x-ray E-41
Technical Manual
Cephalostat sensor head with quick connector mechanism - removing the covers

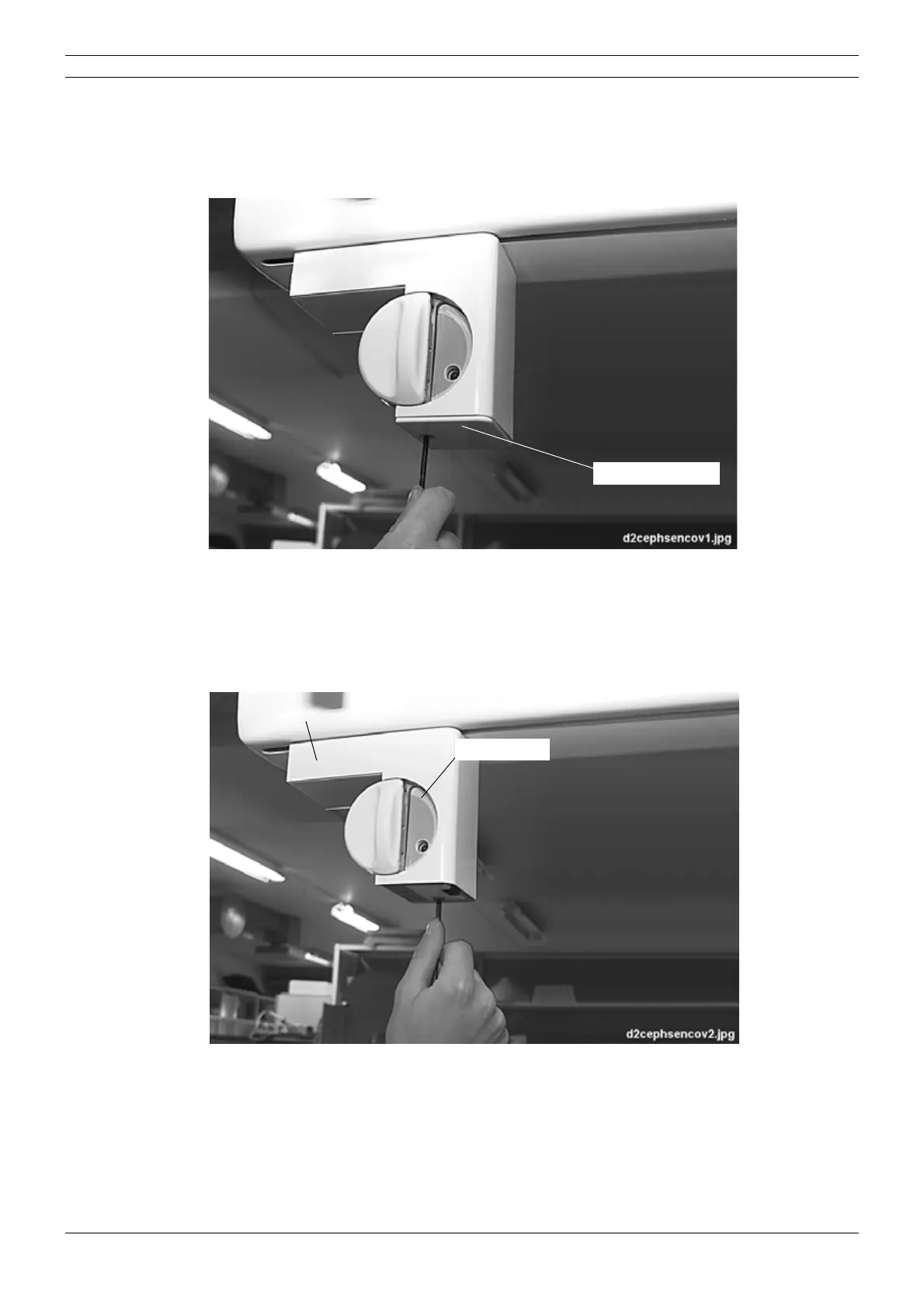

Unscrew the bottom cover plate attachment screw with the 4mm allen key and remove the cover
plate.
Figure 70
Turn the lock disc from above the locking plate and push in the quick connector mechanism lock-
ing knob. Unscrew the attachment screw of the quick connector mechanism cover with the 4mm
allen key.
Figure 71
Bottom cover plate
Cover
Locking plate
