Planmeca Proline CC - Removing and attaching the fixed sensor head

Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
E-42 Planmeca Proline CC panoramic x-ray
Technical Manual

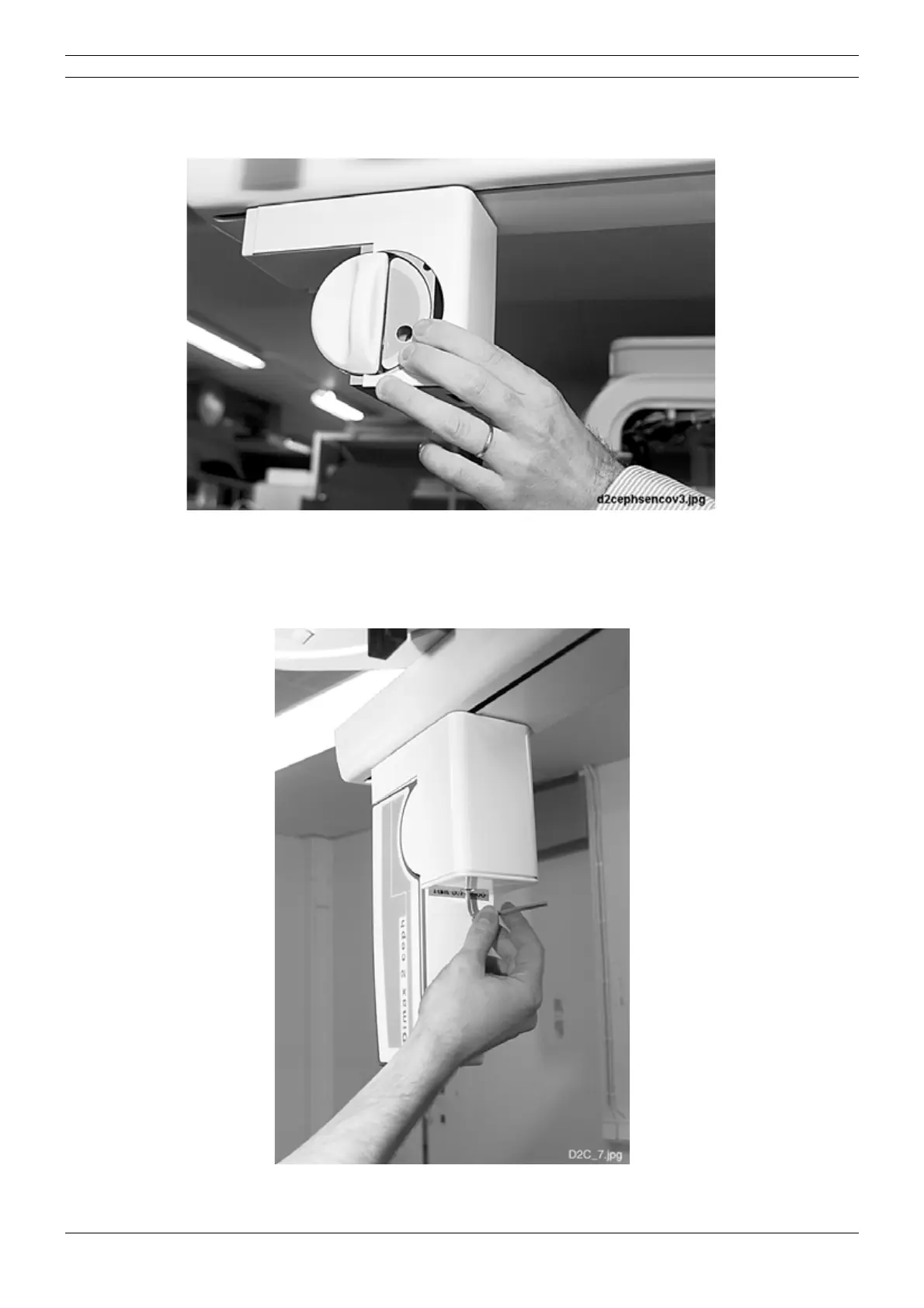

Slide the cover from its position.
Figure 72
Removing and attaching the fixed sensor head
Unscrew the bottom cover plate attachment screw with the 4mm allen key and remove the cover
plate.
Figure 73
