Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
Planmeca Proline CC panoramic x-ray E-43
Technical Manual

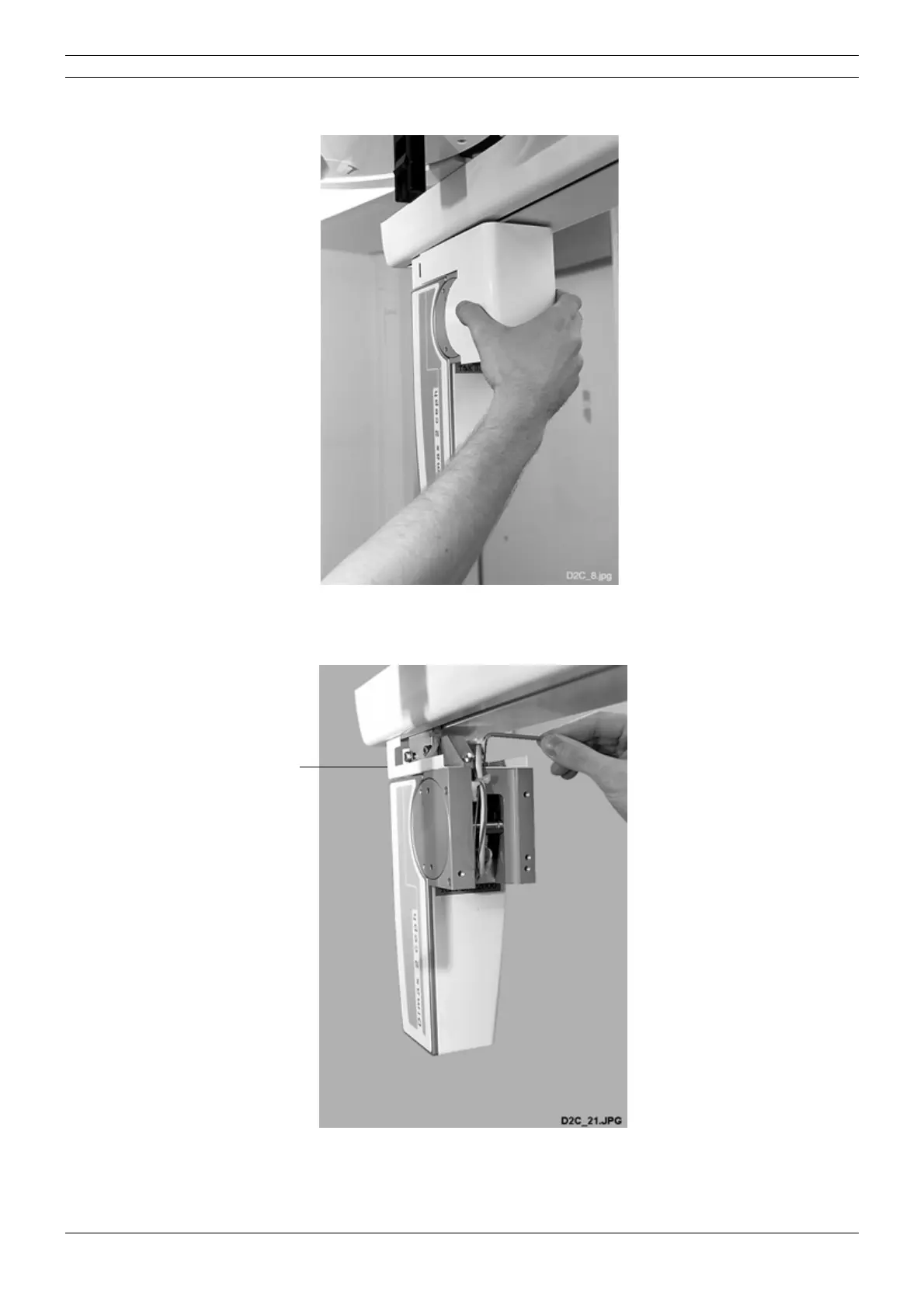

Unscrew the attachment screw of the adapter cover and slide the cover from its position.
Figure 74
Unscrew the upper cover attachment screw with the 4mm allen key and remove the cover.
Figure 75
Upper cover
