Planmeca Proline CC - Page 132

Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
E-44 Planmeca Proline CC panoramic x-ray
Technical Manual

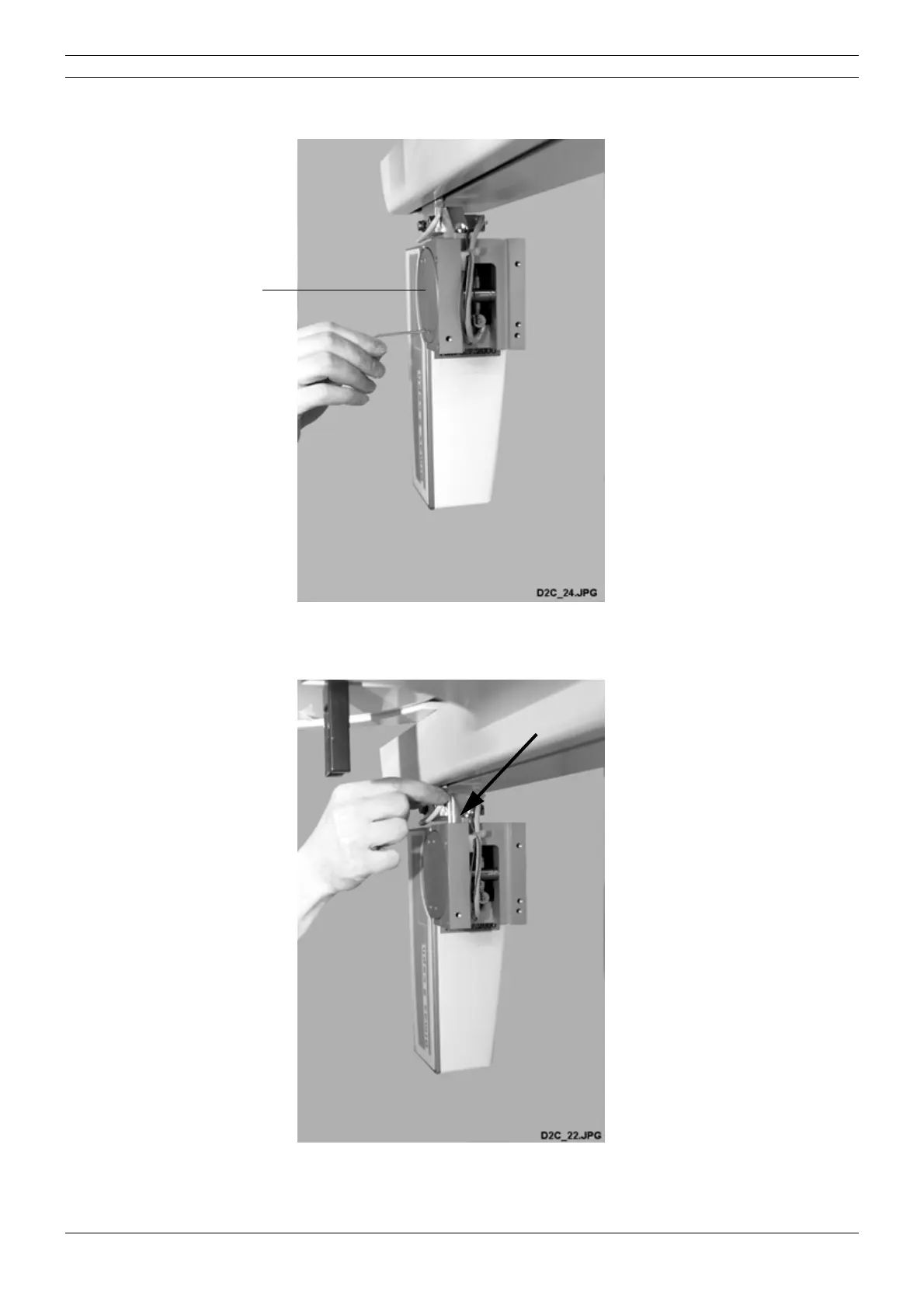

Loosen the four screws located on the lock disc.
Figure 76
Loosen the lock disc attachment screw with the 3mm allen key and remove the lock disc.
Figure 77
Lock disk
