Loosen the button axle attachment screw with the 3mm allen key and push the button axle
inwards.

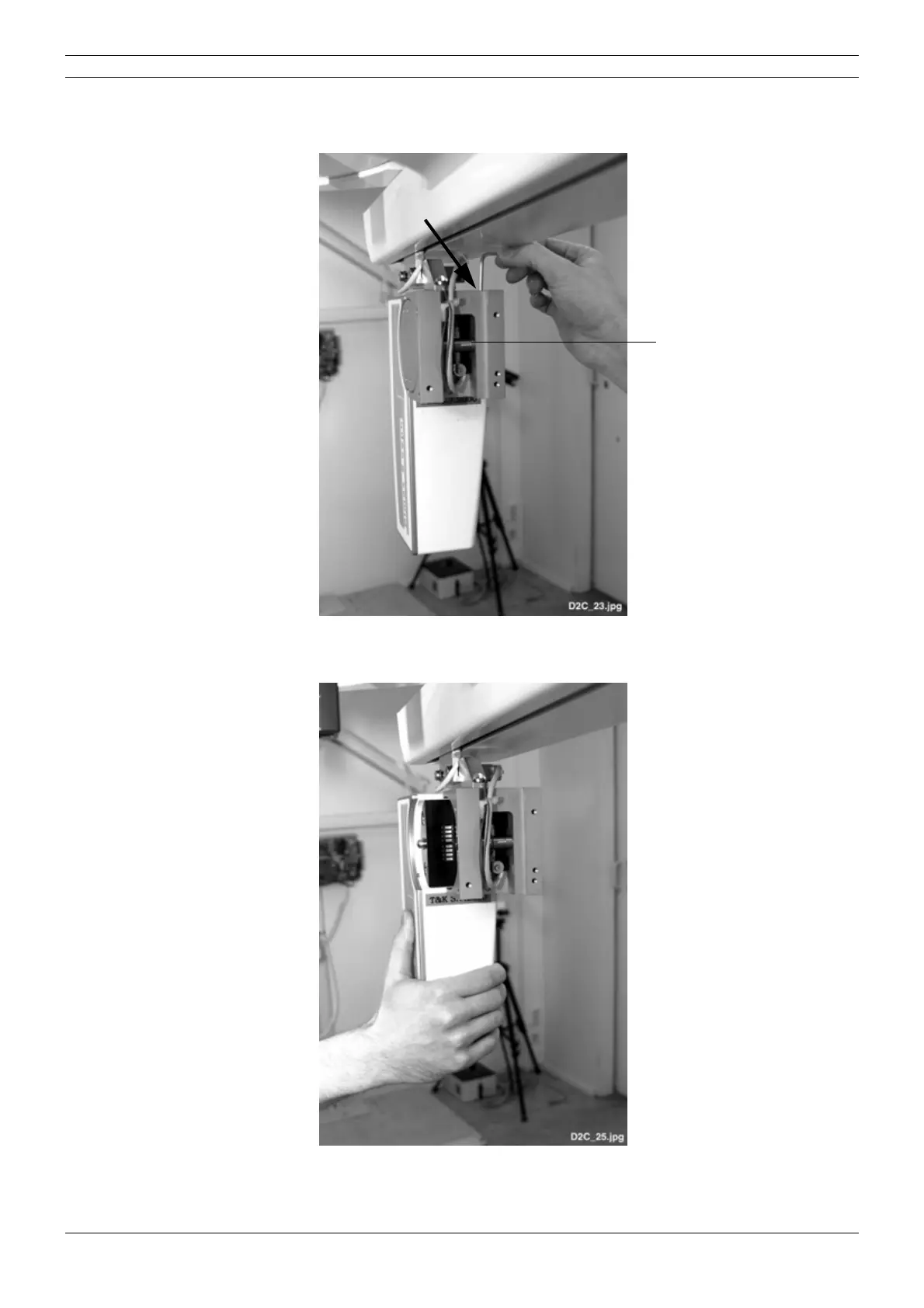

Figure 78
Remove the sensor head from its adapter.
Figure 79
The sensor alignment tool can now be attached to the adapter pins.
Button axle
