Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
E-54 Planmeca Proline CC panoramic x-ray
Technical Manual

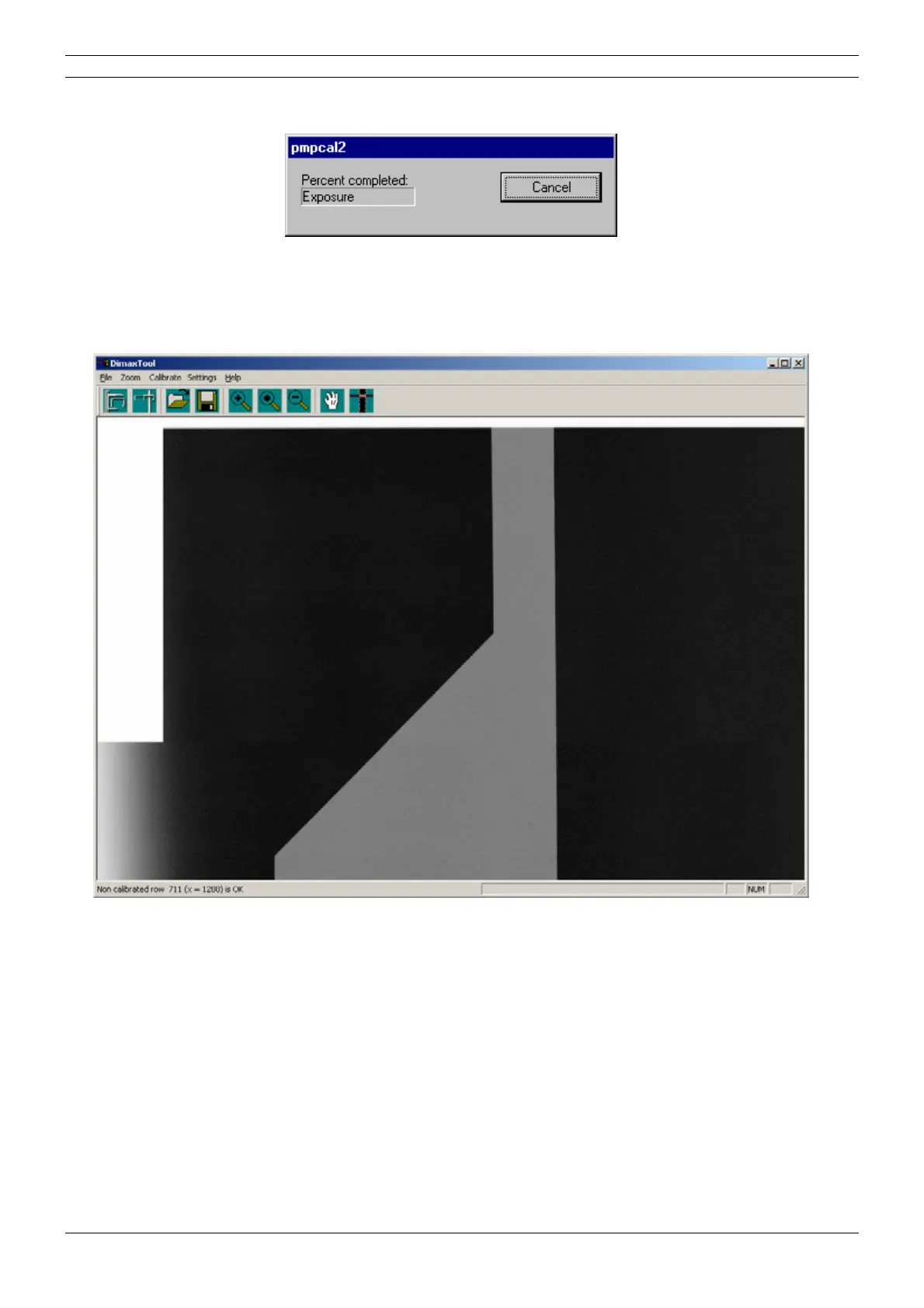

The text Exposure appears.
Figure 94
Take an exposure. The sensor head is now calibrated. After the exposure has been taken the
image is shown in the Dimax2Tool window. The triangle on the image must be even, without any
irregularities.
Figure 95
