Chapter D - ADJUSTMENT & CALIBRATION
D-12 Planmeca Proline CC panoramic x-ray
Technical Manual
If the distance from the middle ball to the center of the tenth ball on the left-hand side is more
than 122mm and on the right-hand side less than 118mm then the patient positioning mechanism
must be moved away from the column (
Fig. 16). Note, that the distance between the line on the
underside of the alignment ruler and the y-line on the ball phantom must be less than ±1mm, see
section
“Adjustment in ball phantom’s y-direction” on page D-14.

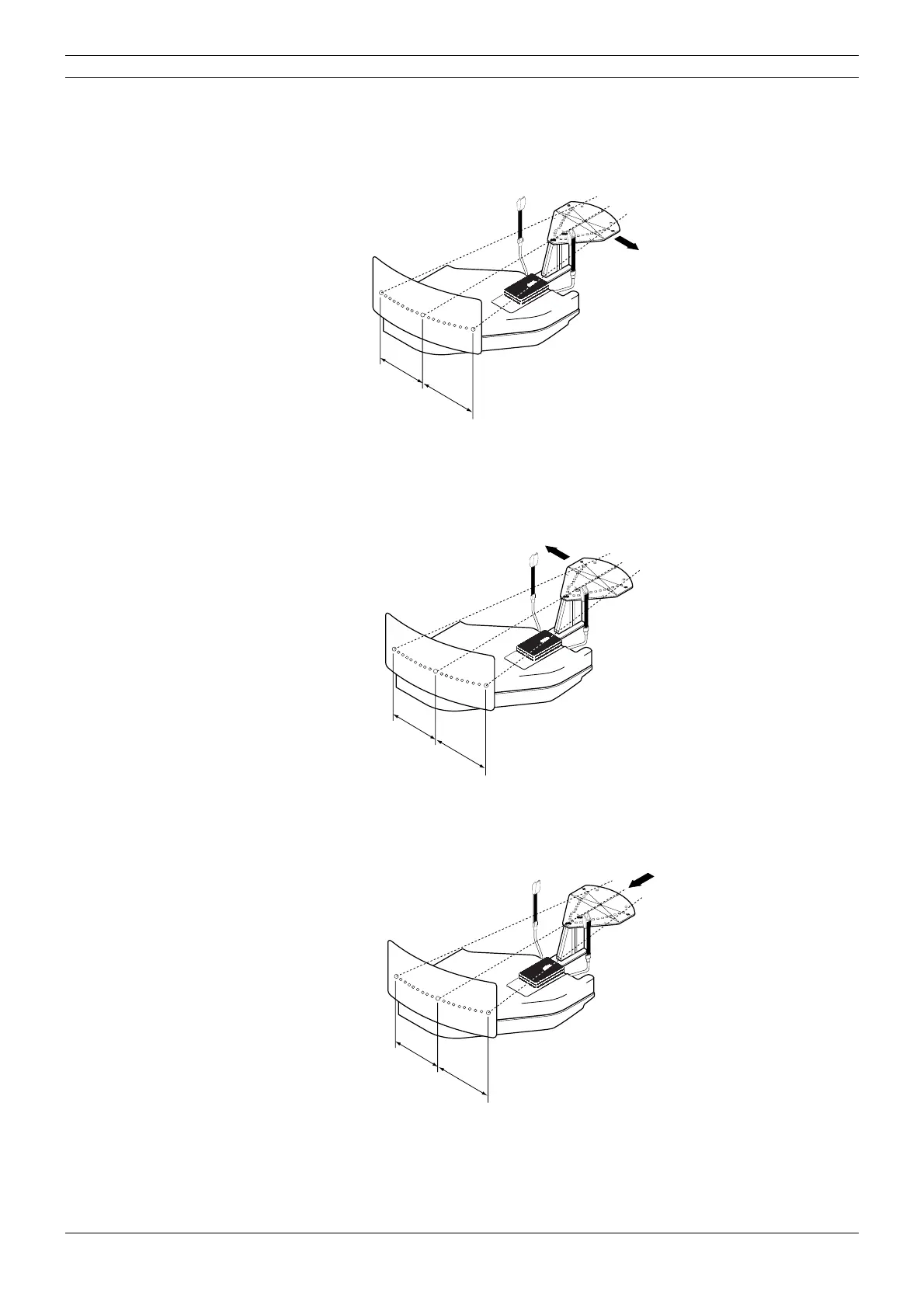

Figure 16
If the distance from the middle ball to the center of the tenth ball on the left-hand side is less than
118mm and on the right-hand side more than 122mm then the patient positioning mechanism
must be moved towards the column (
Fig. 17). Note, that the distance between the line on the
underside of the alignment ruler and the y-line on the ball phantom must be less than ±1mm, see
section
“Adjustment in ball phantom’s y-direction” on page D-14.
Figure 17
If the distances from the middle ball to the center of the tenth ball on both the right and left are
more than 122mm then the patient positioning mechanism is too far backward and must be
moved forwards (
Fig. 18).
Figure 18
