Planmeca ProOne - Adjusting the Unit Height for Patient Positioning

41

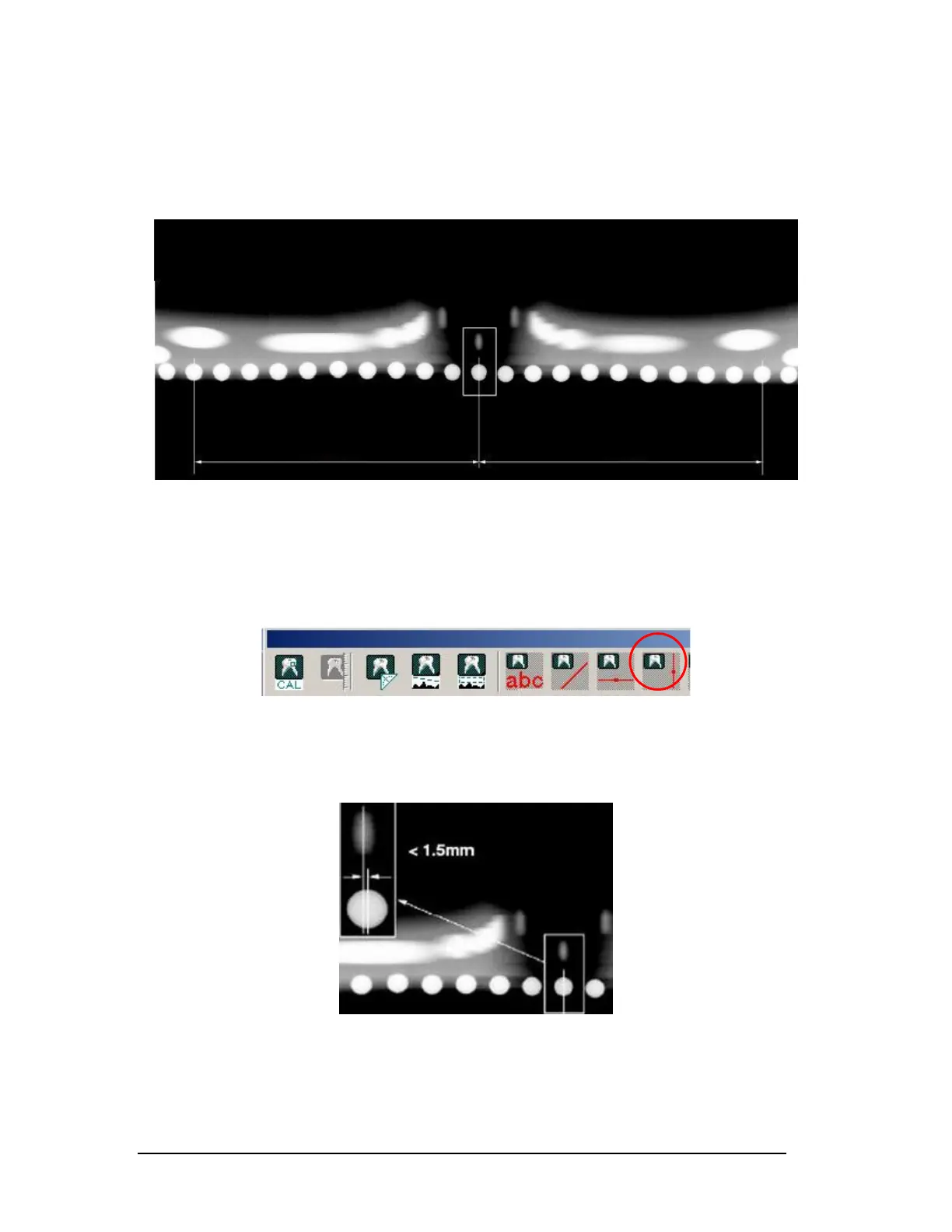

Measure from the center of the Center Ball to the center on the 10
th
Ball on the
r
ight then measure from the center of the Center Ball to the center of 10
th
Ball on
the left. (Figure 69)
Figure 69
NOTE: The distance from the Center Ball to the 10
th
Ball should be the same ±1.5mm.
Now check the shadow ball by clicking the Vertical Line from point icon from the
measurement toolbar. (Figure 70)
Figure 70
Click the top of the shadow ball and measure the distance between the shadow
ball to the Center Ball. (Figure 71)
Figure 71
NOTE: If any of these distances are off then start over with Chapter D-F at pg. 17. If the
m
easurements are within the tolerances then the ProOne is calibrated.
