Cover Feeder
Installation
COVER FEEDER INSTALLATION

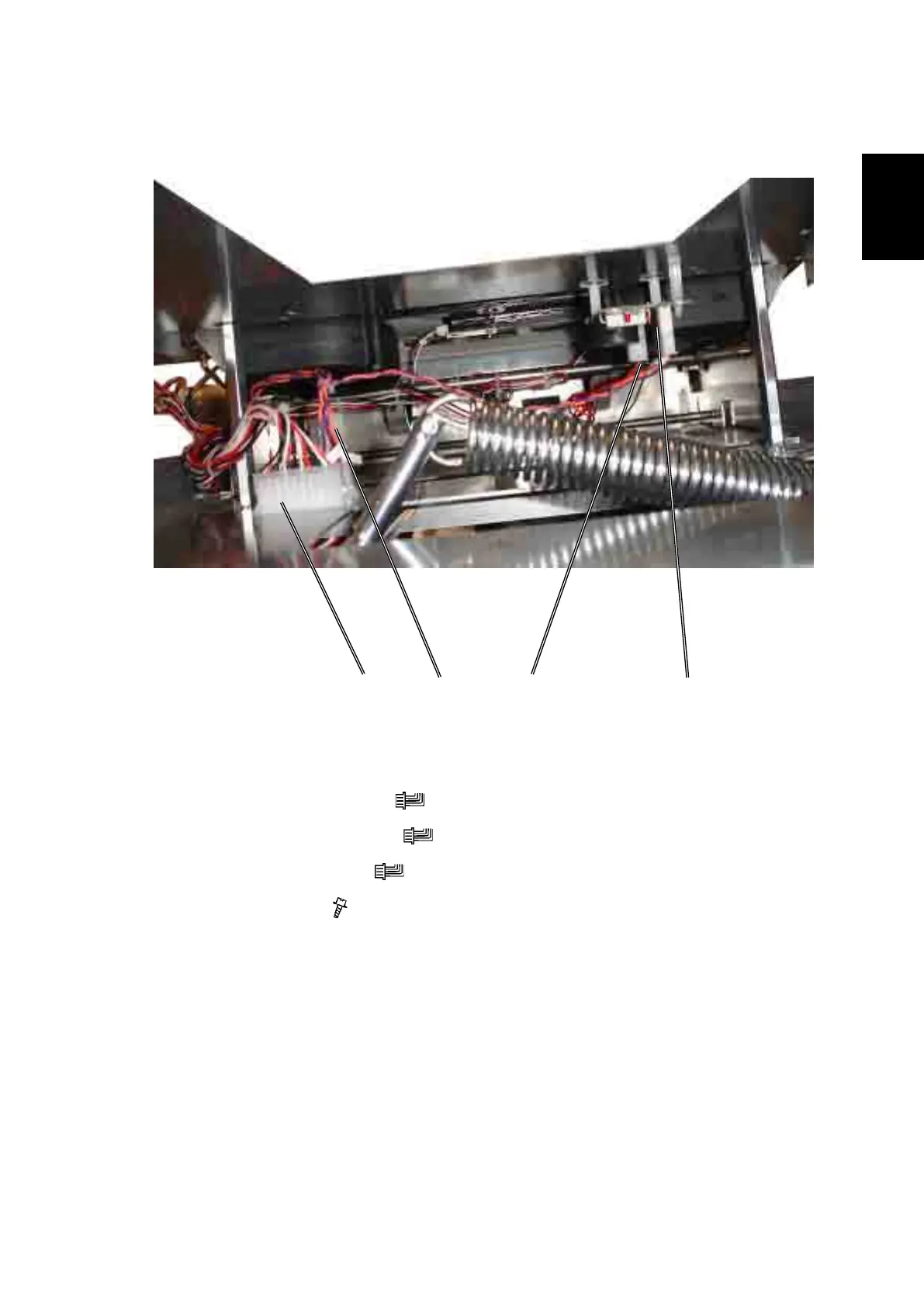

2. Install motor harness [A] ( x 1).
3. Install sensor harness [B] ( x 1).
4. Install fan harness [C] ( x 2) on PCB [D], located under the Top Cover.
5. Install Top Cover ( x 11).
[A]
[B]
[C]
[D]
