Plockmatic BK5030 - Common Fault Resolution

1-39
November 2012
TRIMMER INSTALLATION
1.5.4 DOCKING

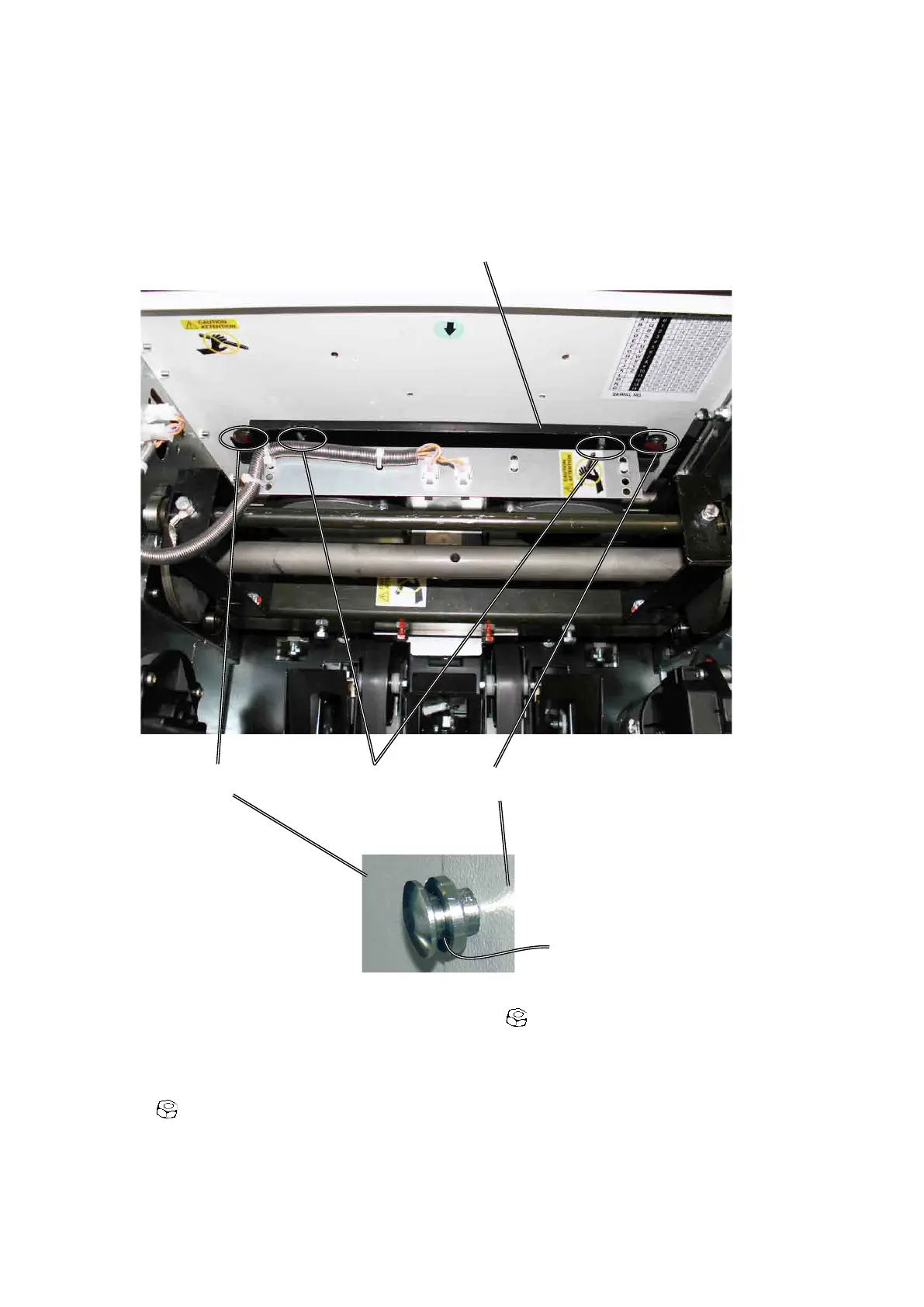

Docking procedure
1. Loosen nuts [A] to the Locking bracket [B] ( x 2).
2. Dock the Trimmer to the Booklet maker.
3. Secure the Trimmer by lifting the Locking bracket [B] and tightening nuts [A]
( x 2).
NOTE: Make sure that the Trimmer locking bracket [B] locks in the outer slot
[C] on the positioning pin.
[A]
[C]
[D]
[D]
Trimmer interior towards
Booklet Maker
[B]
