Plockmatic BK5030 - Basics and Initial Setup; Docking and Undocking Booklet Maker

1-14
November 2012
BOOKLET MAKER INSTALLATION
1.3.3 ADJUSTMENTS
1. Remove screws [A] ( x6) and remove Bookler maker front cover .
2. Remove screws [B] ( x2), loosen screws [C] ( x3) and remove Booklet
maker rear cover ( x5).
[A]
[B]
[C]

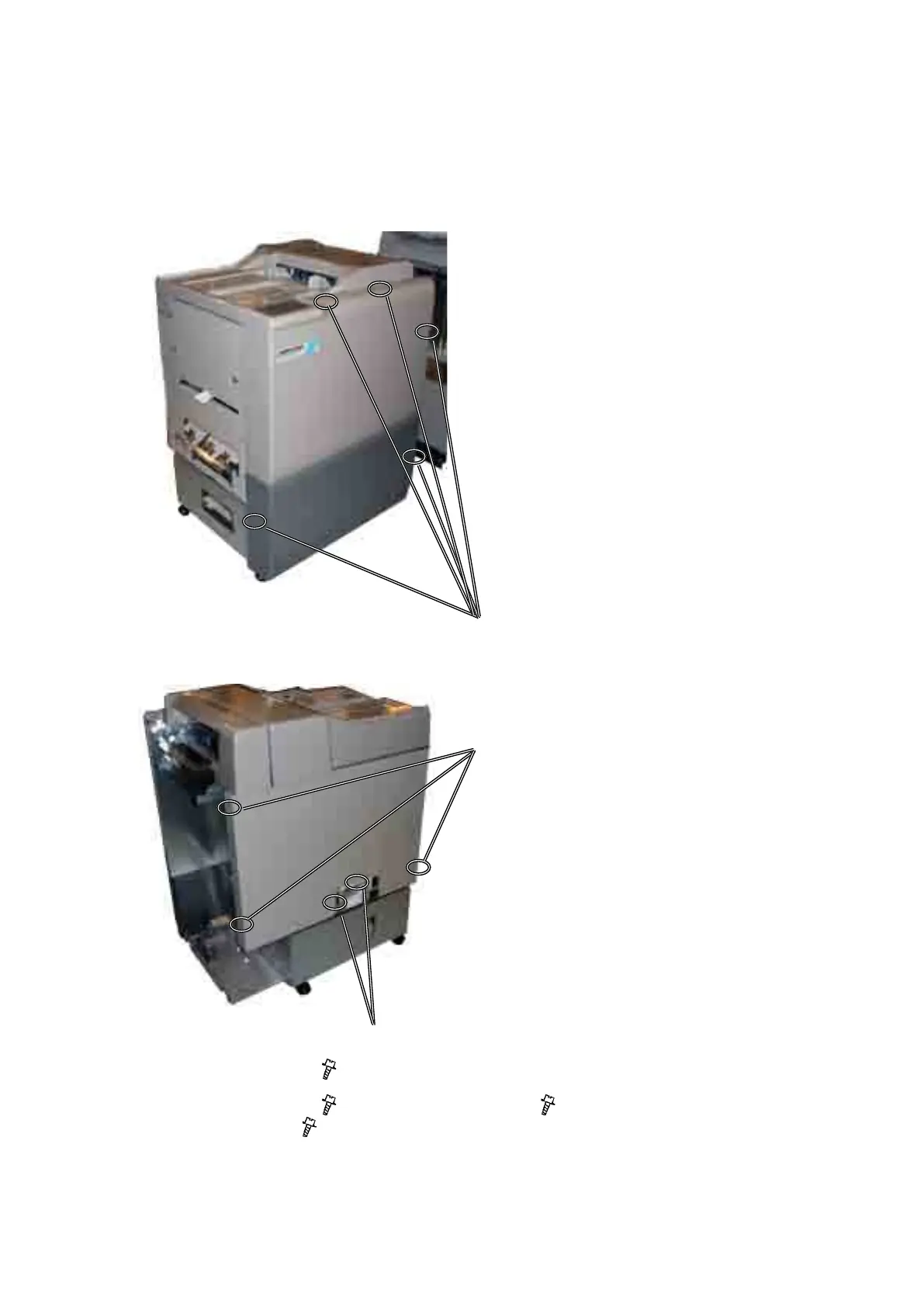

Front and Back cover removal
