November 2012
ROTATOR CREASER TRIMMER INSTALLATION
1.7 CREASER TRIMMER INSTALLATION
1.7.1 ACCESSORY CHECK
[A]

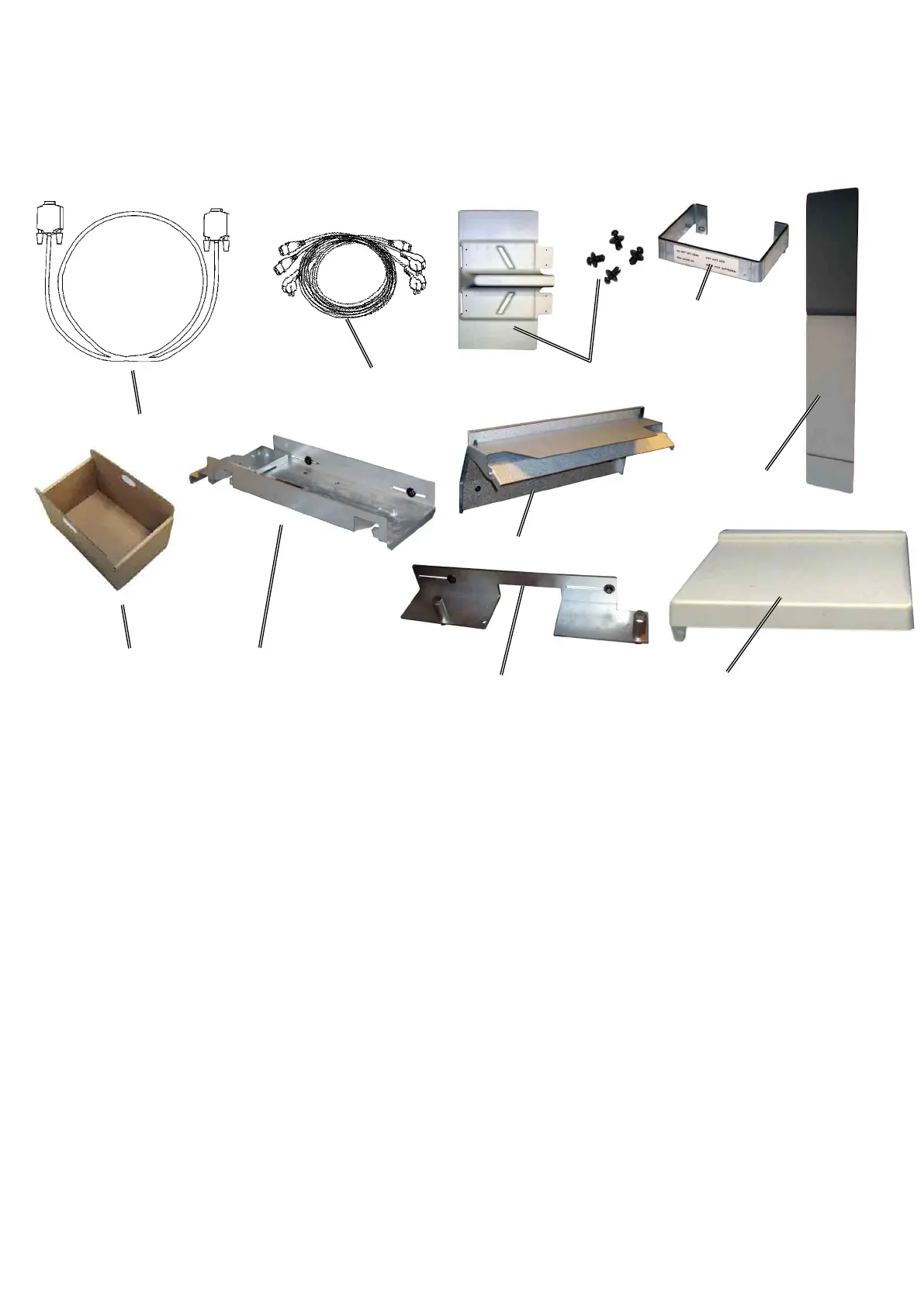

Check the quantity and condition of the accessories in the box against the following list:
Description Q’ty
A. Communication cable between the Booklet maker...............................
and the CT5010 / CT5030 ....................................................................1
B. Powercords to the CT5010 /CT5030 ....................................................3
C. Rail extension ......................................................................................3
Plugs and screws .................................................................................12
D. Cable protector .....................................................................................1
E. Infeed Paper Path .................................................................................1
F. Waste Box ............................................................................................1
G. Infeed docket bracket ...........................................................................1
H Outfeed docket bracket.........................................................................1
I. Intermediate Cover ...............................................................................1
J. Uncurved Top Cover (CT5010 only) .....................................................1
[B]
[C]
[D]
[E]
[F]
[G]
[H]
[ I ]
[J]
