Plockmatic BK5030 - Check the Installation

1-61
November 2012
BOOK FOLDER INSTALLATION
1.6.7 CHECK THE INSTALLATION
1. Turn on the power for the Booklet maker.
NOTE:Makesurethatthenisherconnectorisconnectedtothecopier.
2. In the Trimmer, check the Index 16 value [A].
3. Press the [Tools] button and then the [Service] button.
4. Key in password 107 and press the [OK] button.
5. Select BK5030 and press the [Enter] button.
6. Select NVM and press enter.
7. Scroll to INDEX 16. TRKnife Zero.
8. Press the [+] or [-] buttons to enter value [A].
9. Press the [OK] button.
10. Press the [Exit] button once.

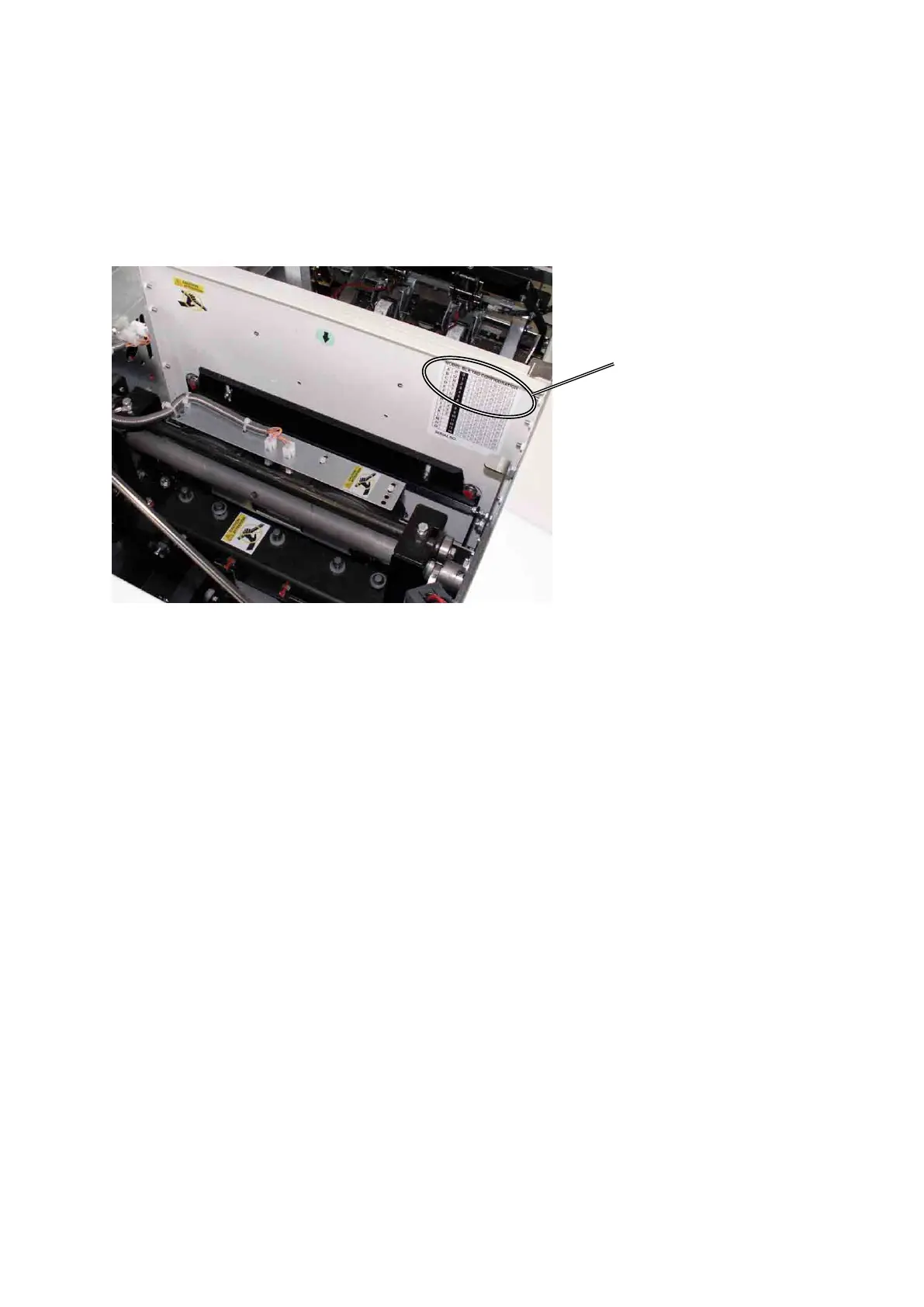

Trimmer interior towards Booklet Maker
[A]
