Plockmatic BK5030 - Connectors

1-92
November 2012
ROTATOR CREASER TRIMMER INSTALLATION
2. Install CAN-cable from (Booklet Maker)Termination plug terminal to CT 5030 terminal “COM
Booklet Maker”.
3.InstalltheCommunicationcablefromthenishertotheCT5030.
[CAN to CT5030]

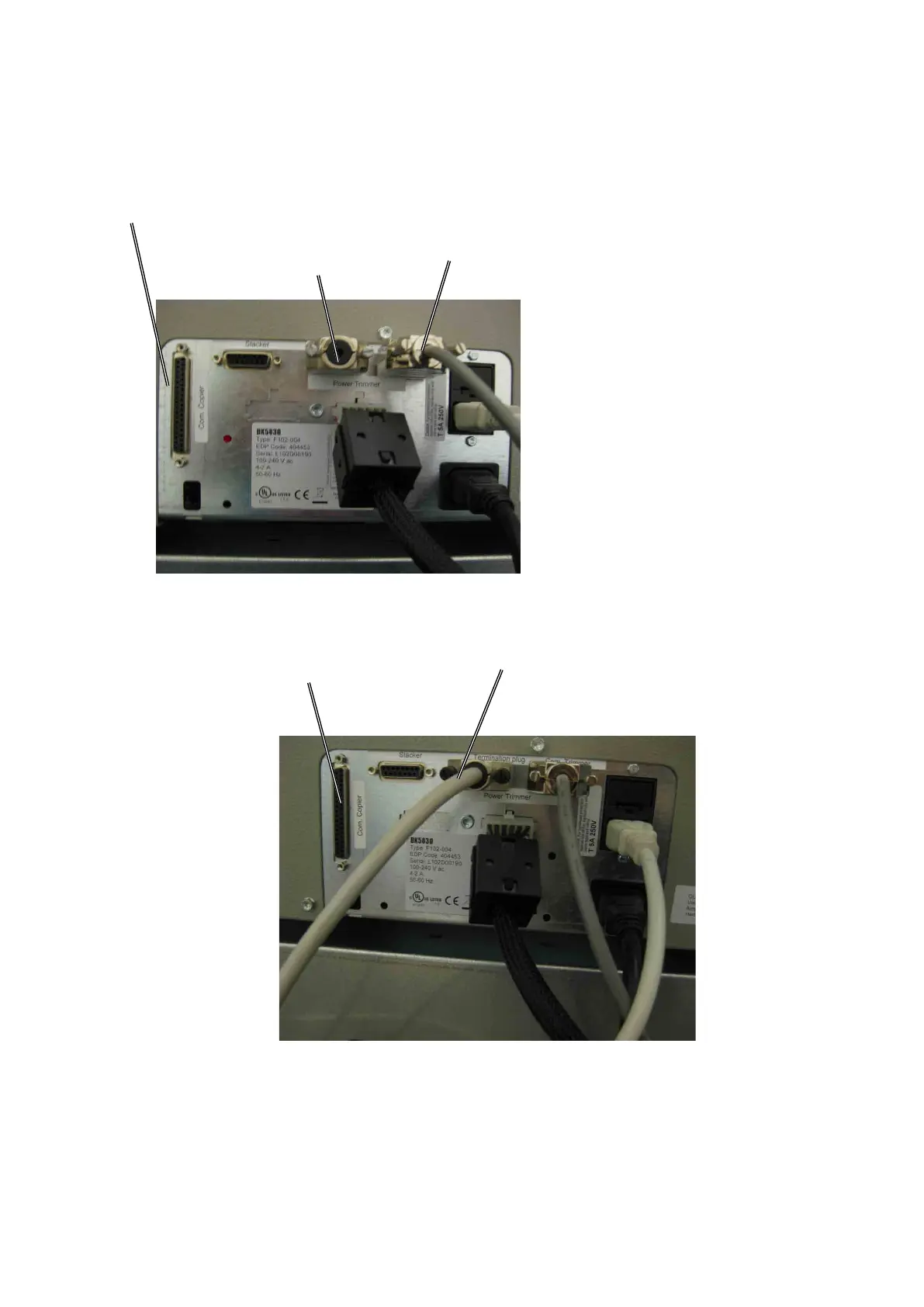

1. Remove the CAN-termination plug from the BK5030 and install it in the CT 5030.
[Communication cable]
[CAN Termination plug]
[CAN to Trimmer]
1.7.4 CONNECTORS
[Communication cable]
