BOOKLET MAKER INSTALLATION

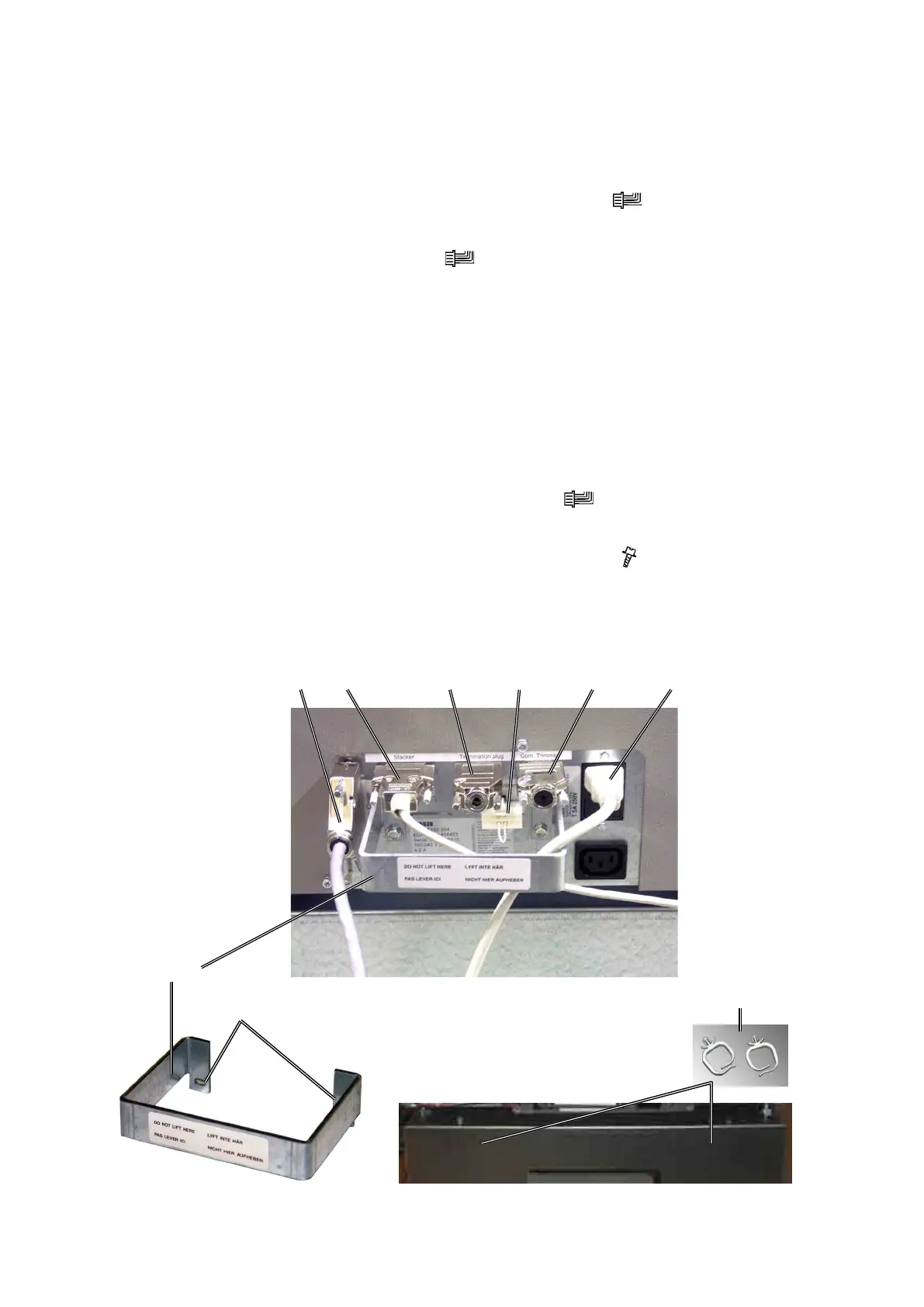

1.3.4 CONNECTORS
1. ConnecttheCommunicationcable[A]fromthenisher( x1), to the Book-
let Maker.
2. Connect the Belt Stacker cable [B] ( x1).
NOTE: Unless Trimmer TR5030 and/or Book Folder BF5030 will be installed.
If so, Belt Stacker cable will be connected to the last module in the system.
3. Install the Terminator plug [C].
NOTE: The Terminators and Interlock jumpers are included in the installation
kit.
4. Install the Terminator plug [D] and the Interlock jumper [E] .
NOTE: Unless Trimmer TR5030 will be installed. If so, communication cable
and power cord between BK5030 and TR5030 will be connected.
5. Connect the Power cord [F] to the Booklet Maker ( x1).
6. Mount the cable protector [G] positioned as shown with two screws in the
holes [H] and route the cables inside the cable protector ( x 2).
7. Install the cable holders [I] to the holes on the rear side of the Booklet Maker
base and route the cables through them.
[B][A] [C]
[D]
[F][E]
[G]
Only Booklet Maker installed
[H]
[I]
