Trimmer
Installation
TRIMMER INSTALLATION
1.5 TRIMMER INSTALLATION
1.5.1 ACCESSORY CHECK
[A]
Check the quantity and condition of the accessories in the box against the follow-
ing list:
NOTE: - The Installation Box is located in the trim bin on the Trimmer.
- The trim bin is tie wrapped on the rear.
- Trimmer fan is bubble wrapped and located inside the Trimmer.
- The Rail Extension is located in the packing material

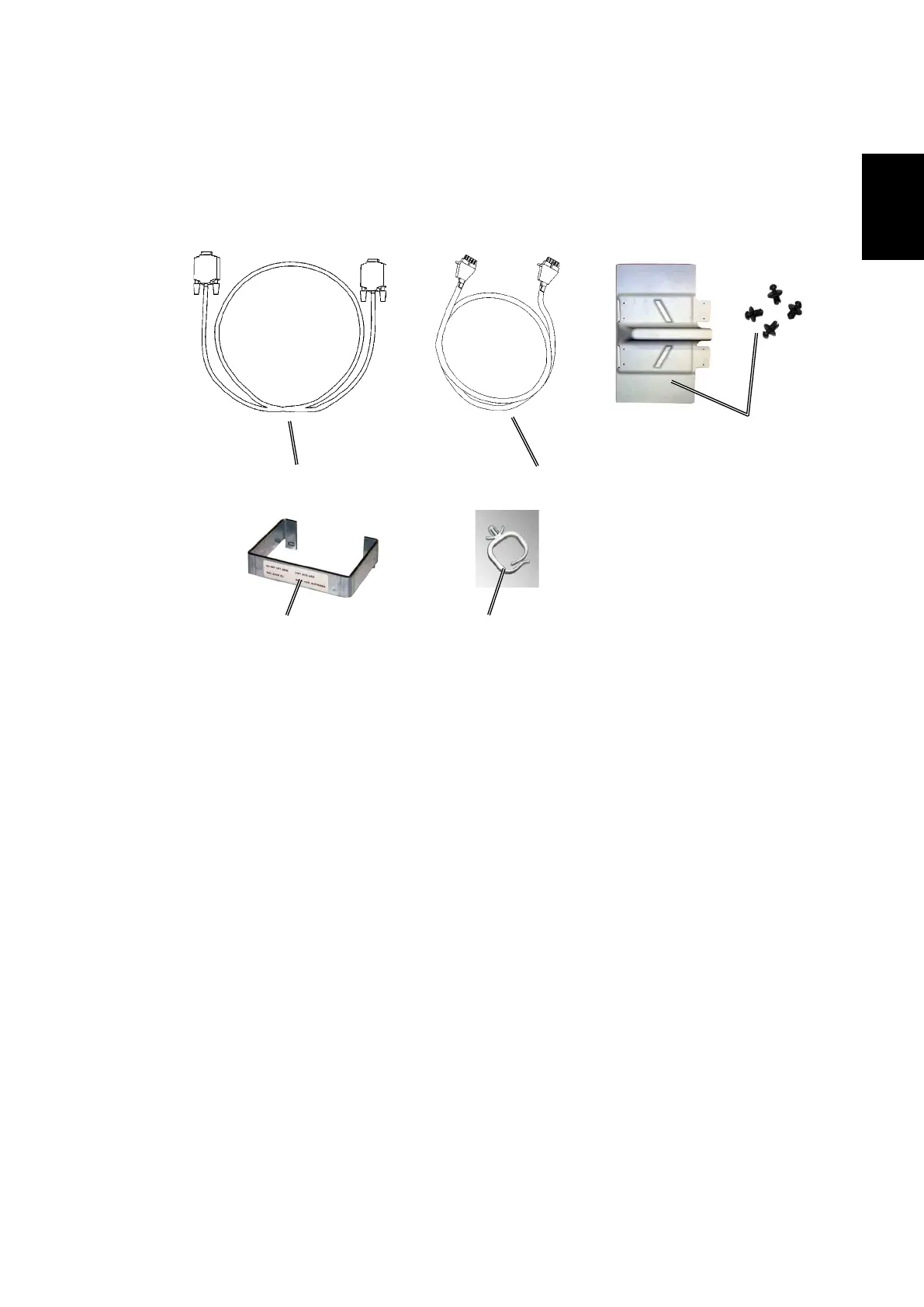

Description Q’ty
A. Communication cable between the Booklet maker .............. 1
and the Trimmer
B. Powercord between the Booklet maker and Trimmer .......... 1
C. Rail extension ...................................................................... 1
Plugs and screws ................................................................ 4
D. Cable protector ..................................................................... 1
E. Cable holder ......................................................................... 1
[B]
[C]
[D]
[E]
