TRIMMER INSTALLATION
3. Adjust the height of the Trimmer, so that the docking bracket [B] on the Trim-
mertsinthedockinghole[C]ontheBookletmaker(onerevolutiononthe
nuts is 1.5mm / 1/16” in height). Adjust by turning the four nuts [D] on the Trim-
mer with the Multi tool.
NOTE: Make sure that the Ground plate on the docking bracket [B], is ground-
ed correctly.

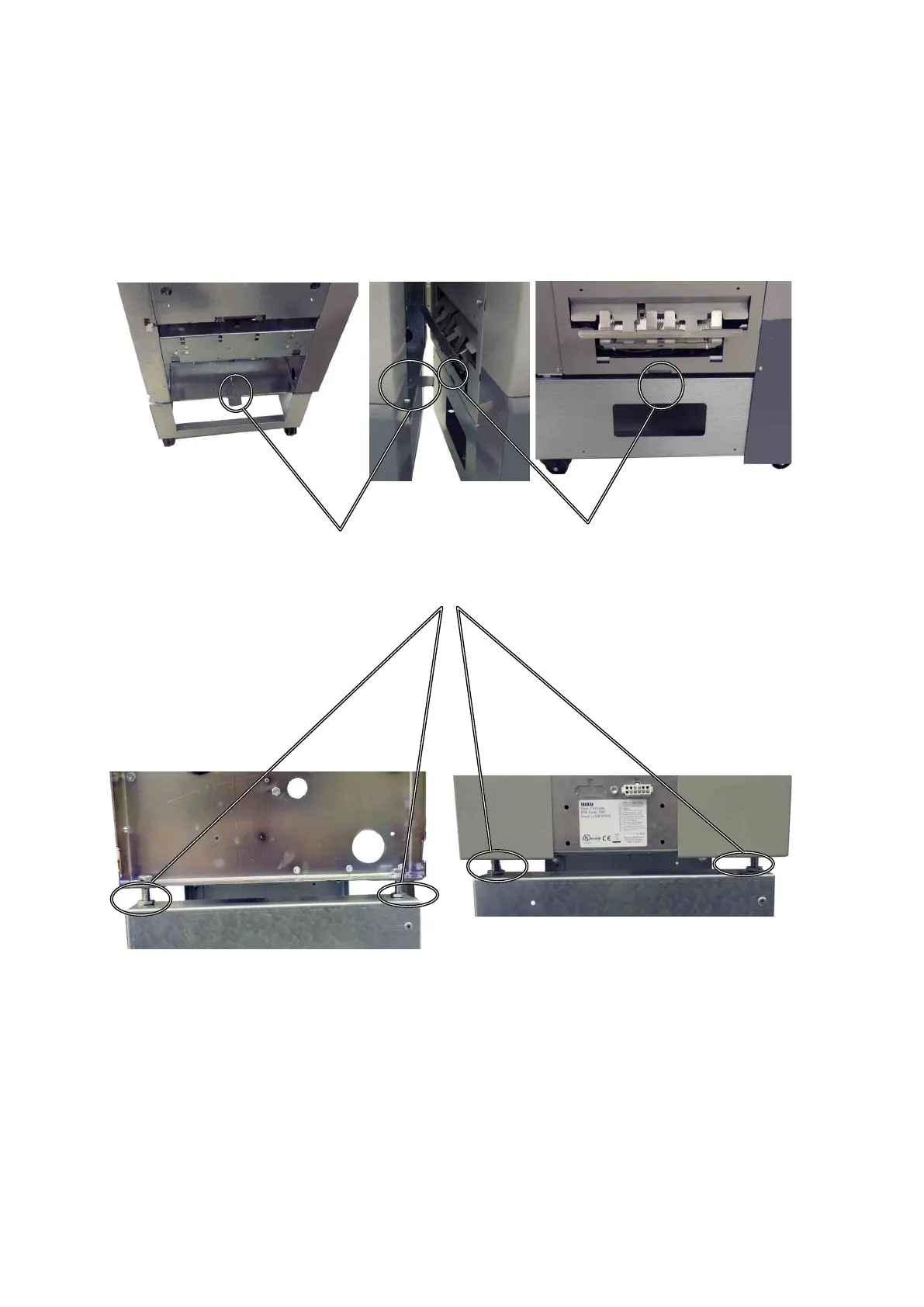

Height adjustment
[D]
[B] [C]
