Book Folder
Installation
BOOK FOLDER INSTALLATION
Remove the belt stacker

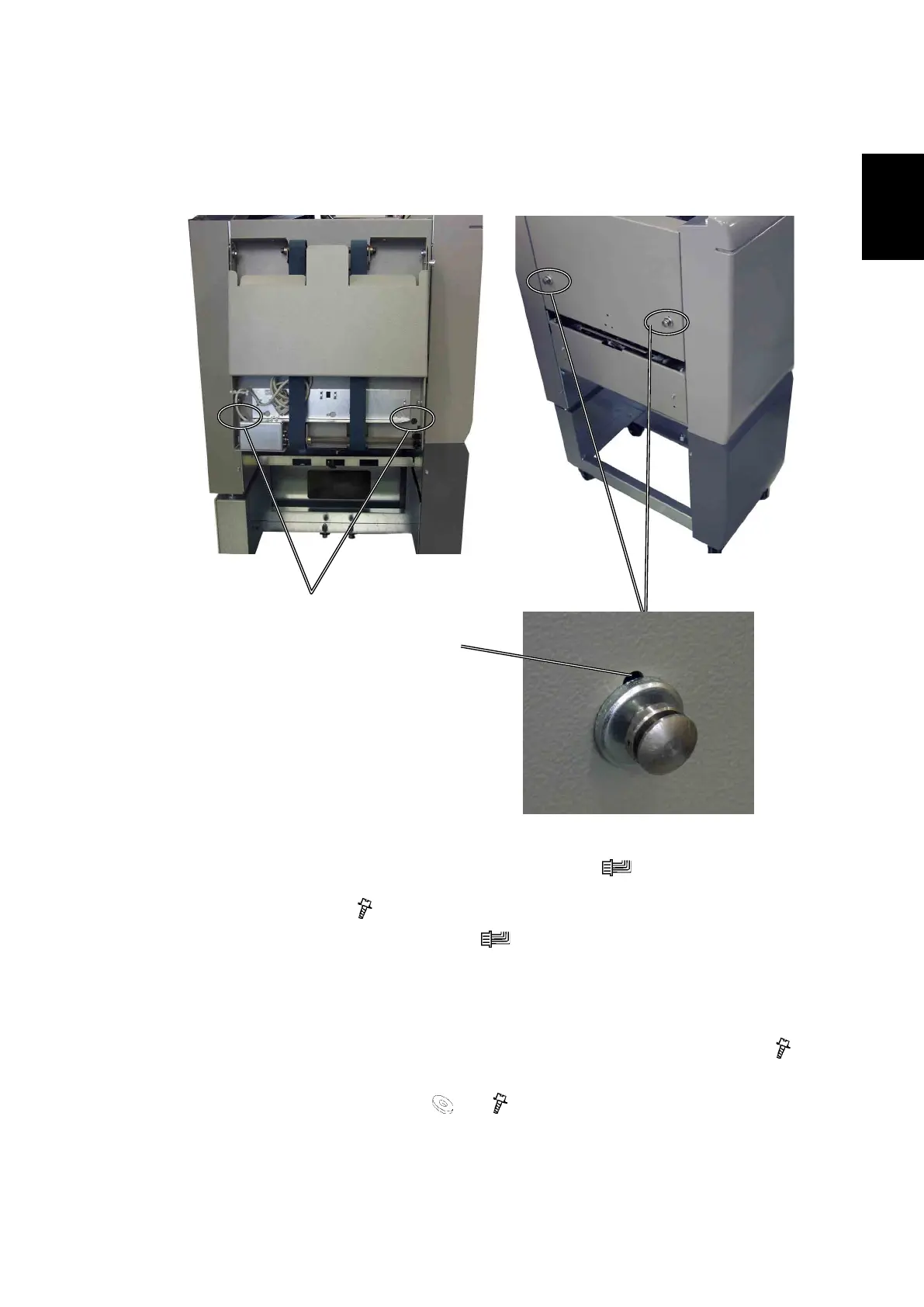

1. Disconnect the power cord to the Booklet Maker ( x 1).
2. Loosen screws [A] ( x 2 ) securing the Belt Stacker on the Trimmer.
3. Disconnect the Belt stacker cable ( x 1) from the Trimmer.
4. Remove the Belt stacker from the Trimmer.
5. Secure screws [A] on the Trimmer.
6. Remove the positioning pins from the upper holes [B], used for the belt stacker ( x 2).
7. Using the second lower hole, install the other positioning pin, using the 25 mm
washer and screw provided ( x 1, x 1).
Trimmer
[A]
Trimmer
[B]
