Book Folder
Installation
BOOK FOLDER INSTALLATION
[D]

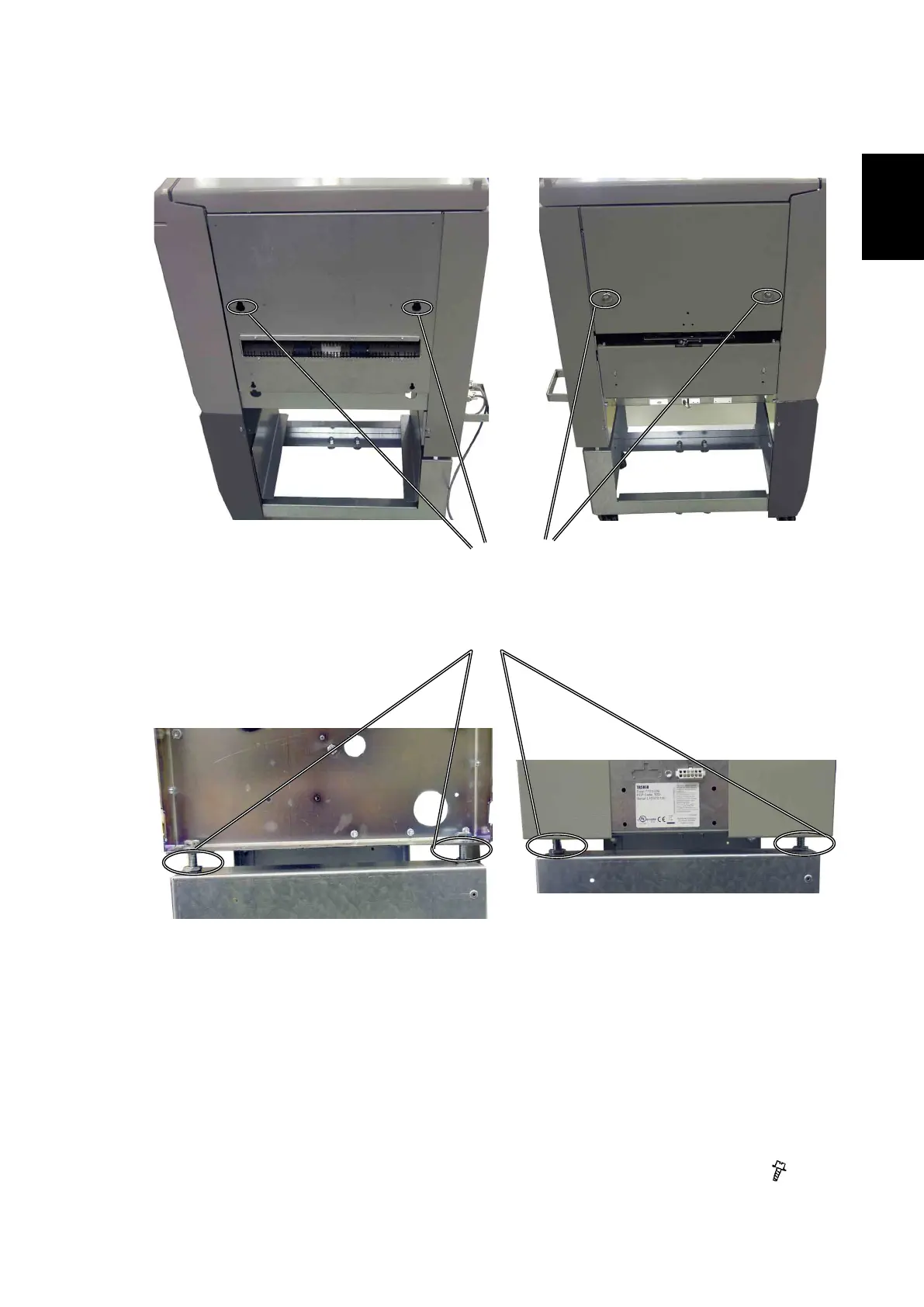

3. Adjust the height of the Book Folder, so that the positioning pins [B] on the
Trimmertsinthedockingholes[C]ontheBookFolder.Adjustbyturningthe
four nuts [D] on the Book Folder with the Multi tool (one revolution on the nuts
is 1.5mm in height). Adjust on the front and rear.
NOTE: The Multi Tool is located behind the rear cover of the BK5030 ( x 4).
Trimmer
Book Folder
Book Folder, rear view
Book Folder, front view
[B]
[C]
