1-67
November 2012
ROTATOR CREASER TRIMMER INSTALLATION

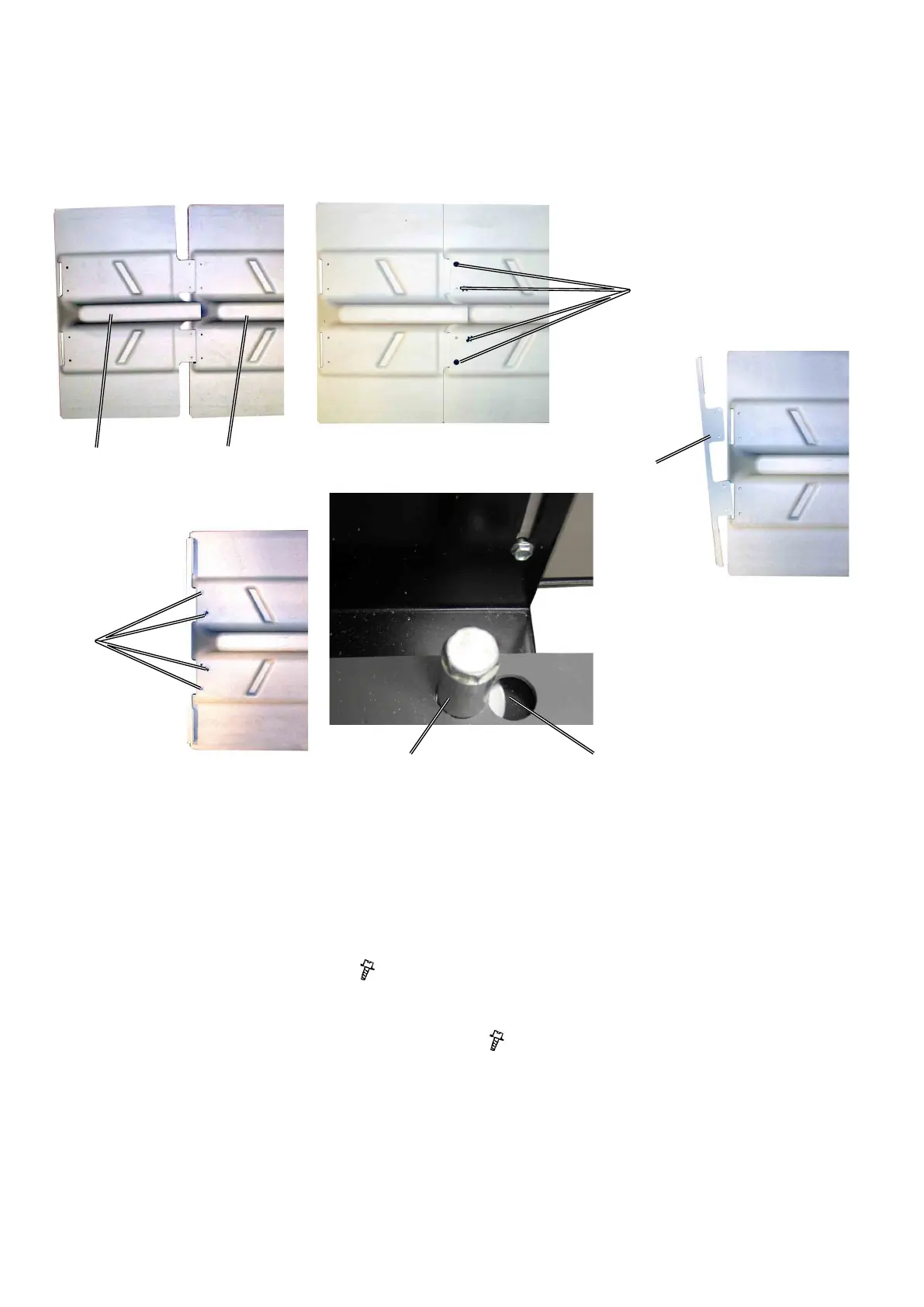

Install Rail Extension
6. Remove the Rail stop from the Rail under the CT5030.
7. Insert the Rail extension [A] into the Rail under the Trimmer [B].
8. Press the plugs [C] into the holes in the Rail under the Trimmer and press/
hammer down the plugs ( x 4).
9. Insert the Rail stop [D] into the Rail extension.
10. Secure the Rail stop with the screws [E] ( x 4).
11. Select correct hole [F].
[D]
[E]
[A]
[B]
[C]
[F]
Select this hole
if CT 5010/CT 5030 is installed
Select this hole
if CT 5010 /CT 5030 is NOT installed
To Next Page
