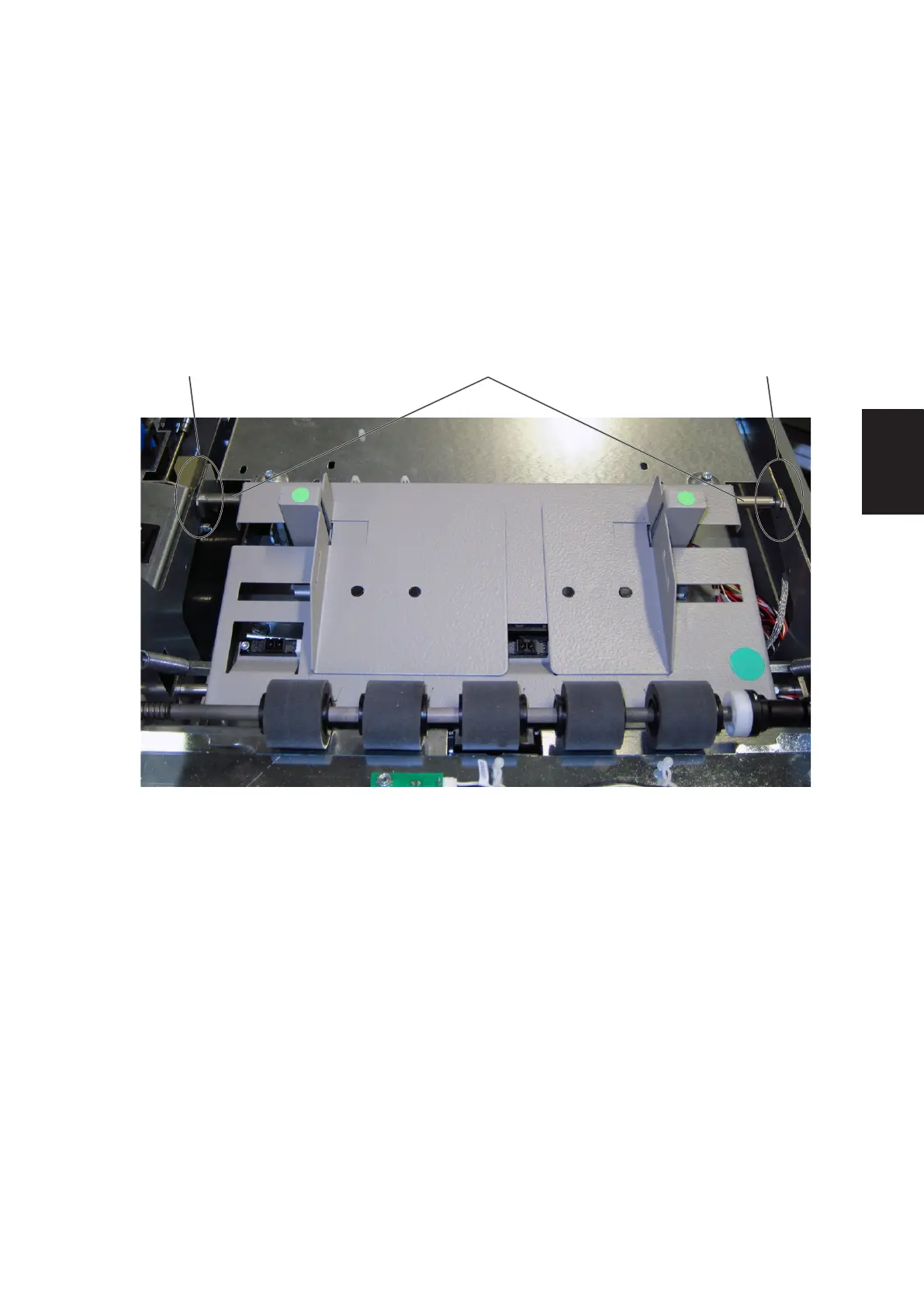

8. Note the position of the brackets [F] and [G].
9. Lift the rear end of Cover Feeder and carefully remove the complete unit so
that the shaft [F] comes loose from brackets [F] and [G].
NOTE: The shaft [E] must exit the cut-outs in the brackets [F] and [G] in the
Top Cover before it can be removed.
[E][F] [G]
COVER FEEDER
