25 November 2011
CF-4-8

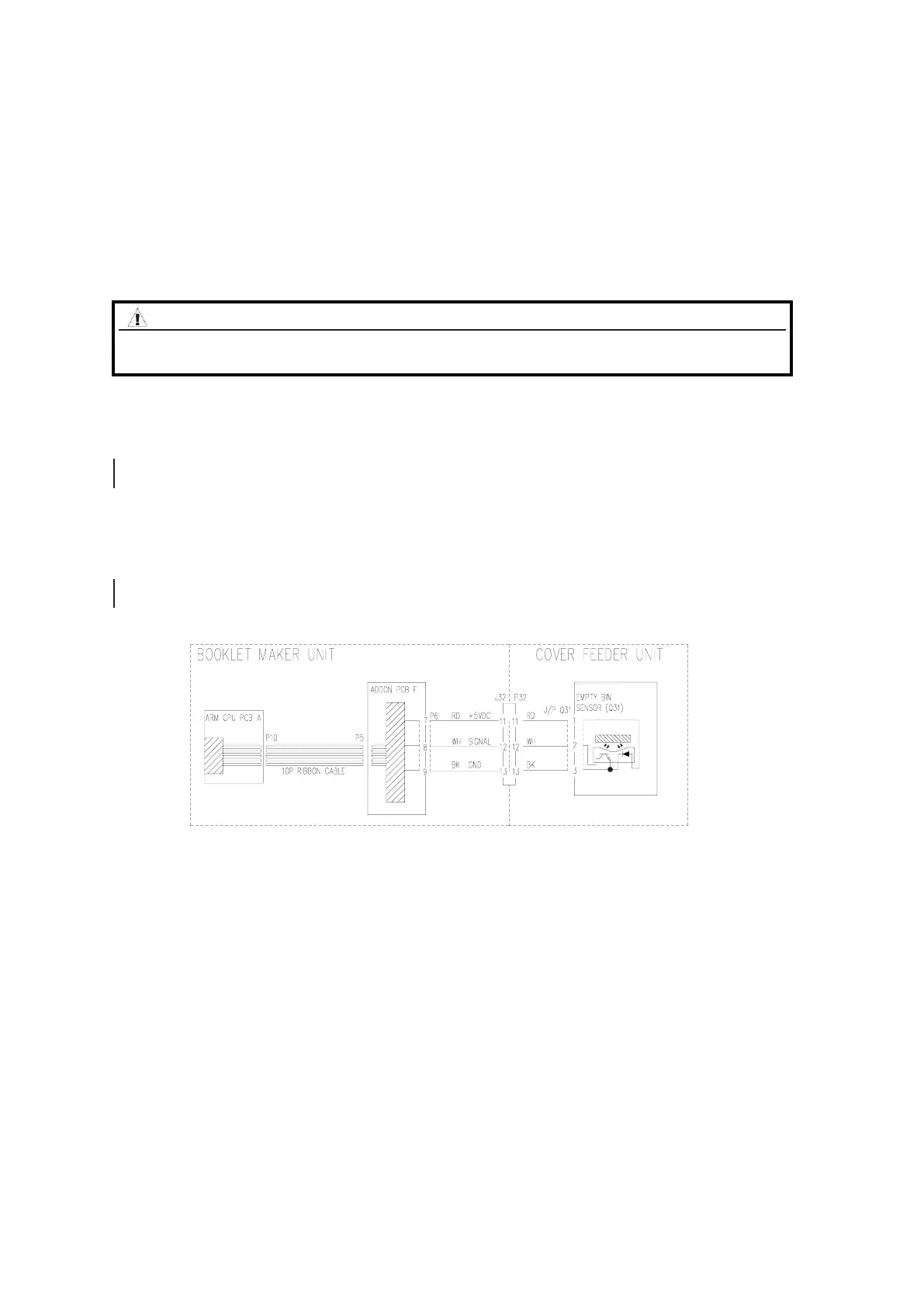

Block schematic diagram to CF-008
FAULT CODE DESCRIPTIONS
Disconnect plug F.P6 from ADDON PCB “F”.
1. Measure between J6-7 and J6-9 (5V and GND)
2. Measure between J6-8 and J6-9 (Signal and GND)
The voltage is 5 VDC +/- 10%.
Y N
Replace F.P6 from ADDON PCB “F”.
Disconnect plug from sensor Q31.
1. Check wire for Continuity / Short circuit from the Red wire at plug Q31 to F.P6-7
2. Check wire for Continuity / Short circuit from the White wire at plug Q31 to F.P6-8
3. Check wire for Continuity / Short circuit from the Black wire at plug Q31 to F.P6-9
Is there Continuity and no short circuit between Red and chassis/GND, White and chassis/GND
Y N
Repair Wire Harness.
Replace sensor Q31
CF-008 CF-Q31 Empty Bin Sensor Faulty
Fault Code indicates that the Empty Bin Sensor (Q31) is faulty.
Initial Actions
• Make sure that Q33 is installed and connected correctly.
• Make sure that plug F P6 on Addon PCB “F” in the Booklet Maker is connected.
• Make sure that jack/plug J32/P32 J33/P33 in the Cover Feeder is connected.
Procedure
WARNING
Switch off the Main Power Switch and disconnect the Main Power Cord
before disconnecting, removing or replacing any electrical components.
