Plockmatic CF5030 - PAPER BIN LOW SENSOR Q33

25 November 2011
Replacement
Adjustment
CF-3-9
AREA F

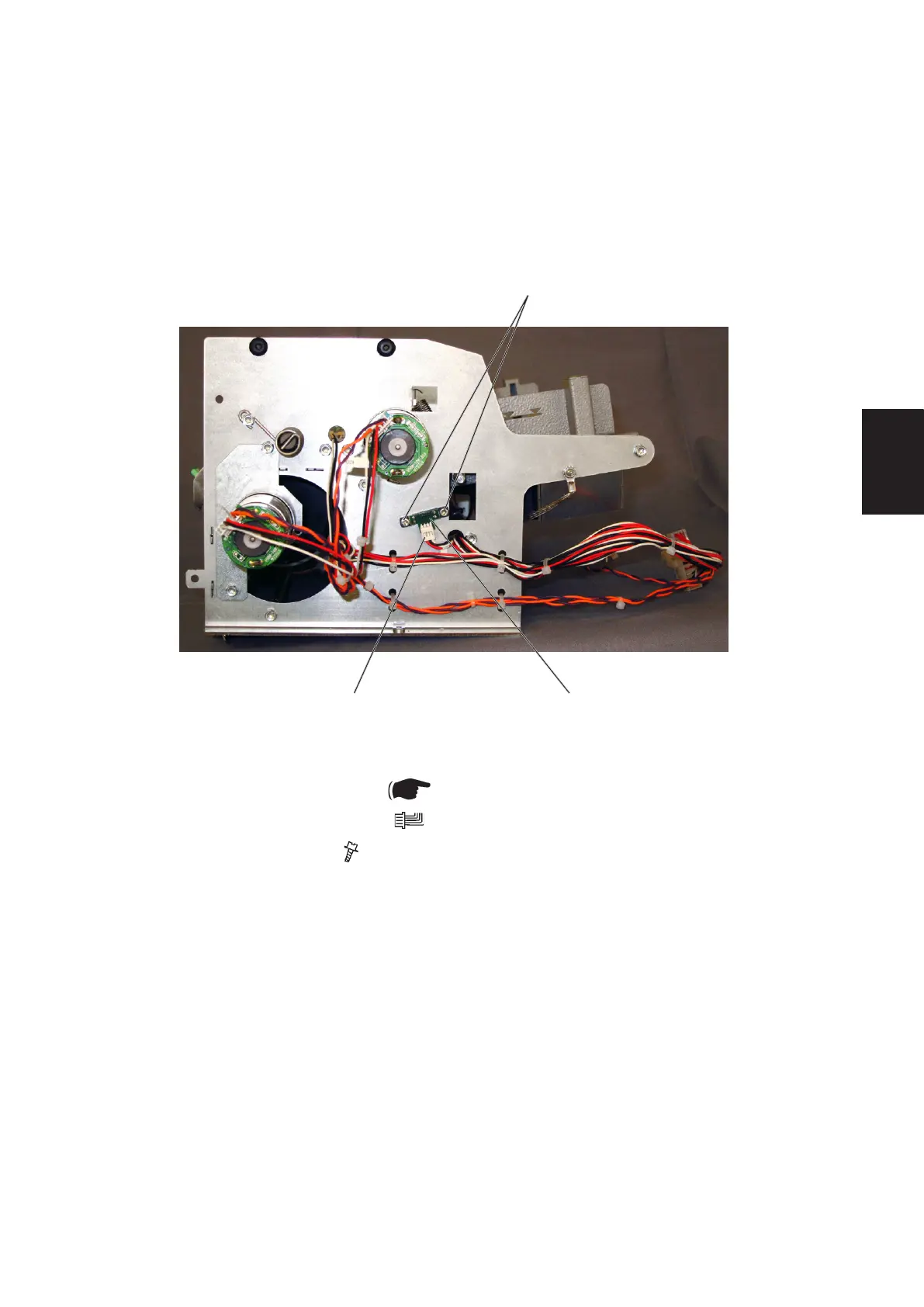

3.2.5 PAPER BIN LOW SENSOR Q33
[B]
[A] [C]
1. Remove Rear Top Cover ( Booklet Maker Service Manual 3.3.6).
2. Disconnect Connector [A] ( x1).
4. Remove screws [B] ( x2).
5. Remove Paper Bin Low Sensor Q33 [C.
